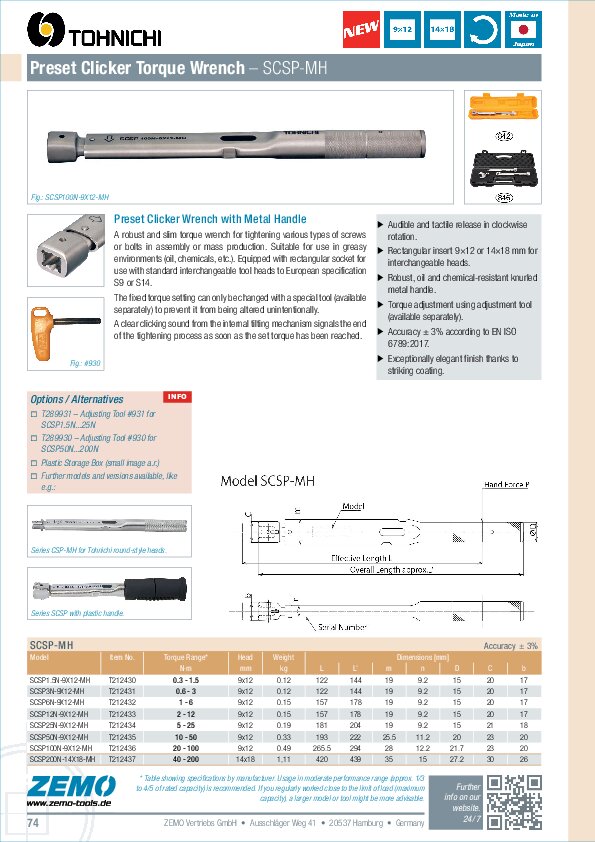

Tohnichi SCSP-MH Preset Torque Wrench

Capacity 1.5 / 3 / 6 / 12 / 25 / 50 / 100 / 200 Nm

Preset Clicker Wrench with Rectangular Insert and Metal Handle

Robust clicker wrench for tightening various types of bolts on production lines or similar applications. For use with interchangeable heads with rectangular ('EU') connector.

The set torque cannot be changed without using a special tool (sold separately), preventing the operator from changing torque by mistake. Need a proper torque wrench tester. A distinct 'click' sound signals the completion of tightening upon reaching the set torque.

Key Features

Repeatability according to DIN EN ISO 6789 type II class A
For interchangeable heads with rectangular connector ('European')
Preset type
Robust knurled metal handle

Scope of Supply

Torque wrench SCSP-MH
Operating manual

Options / Accs / Spares

Adjusting Tool:
- T289931 = Tohnichi #931 for models SCSP1.5N...25N
- T289930 = Tohnichi #930 for models SCSP50N....200N

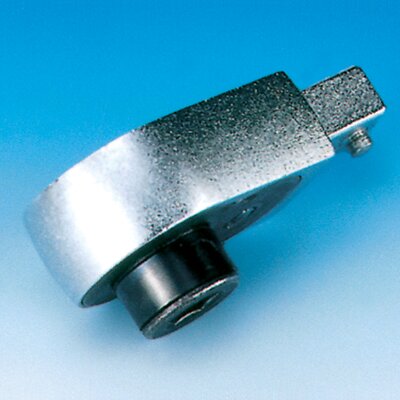

Interchangeable heads with rectangle ('EU') connector.

SCSP-MH

Model	Item No.	Torque Range [N·m]	Insert [mm]	Ovl Length [mm]	Weight [kg]	Handle
SCSP1.5N-9X12-MH	T212430	0.3 - 1.5	9×12	144	0.12	MH
SCSP3N-9X12-MH	T212431	0.6 - 3	9×12	144	0.12	MH
SCSP6N-9X12-MH	T212432	1 - 6	9×12	178	0.15	MH
SCSP12N-9X12-MH	T212433	2 - 12	9×12	178	0.15	MH
SCSP25N-9X12-MH	T212434	5 - 25	9×12	204	0.19	MH
SCSP50N-9X12-MH	T212435	10 - 50	9×12	222	0.33	MH
SCSP100N-9X12-MH	T212436	20 - 100	9×12	294	0.49	MH
SCSP200N-14X18-MH	T212437	40 - 200	14×18	439	1.11	MH

Table showing specifications by the manufacturer. It is recommended to primarily use in medium performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (maximum capacity), a larger model or tool might be more advisable.

Overall length does not include interchangeable head. SCSP-MH models can be used only with European type interchangeable heads. Cannot be used with regular (round-style) interchangeable heads manufactured by Tohnichi.

All technical data without guarantee, errors and omissions excepted.
