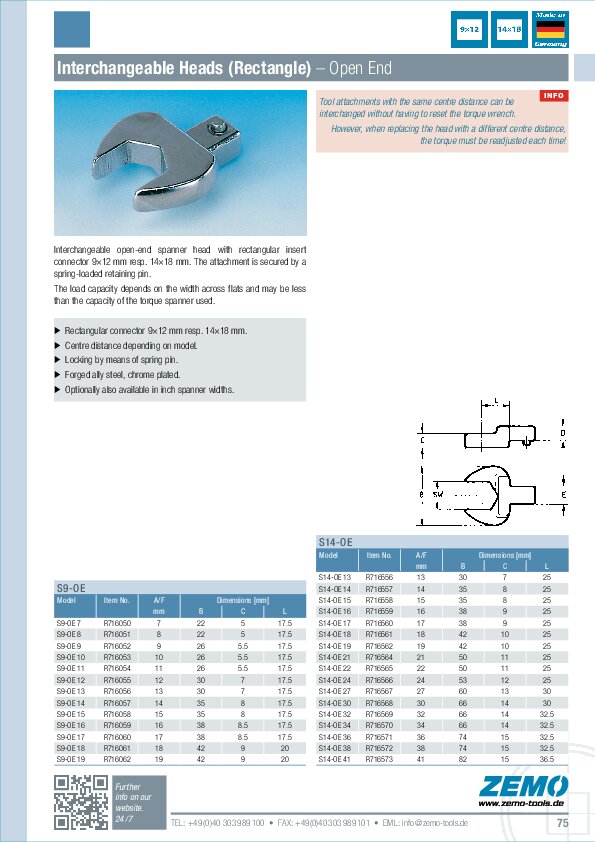

S9/S14 Open End Head

Centre Line: miscellaneous

Interchangeable open end head with 'DIN' rectangle connector 9×12 mm rsp. 14×18 mm. The head is secured by a spring loaded lock pin. The load capacity is dependent on the width A/F and may be less than the capacity of the used torque wrench.

Interchangeable heads with the same centerline may be interchanged among themselves arbitrarily, without needing the torque wrench to be adjusted again. Vice versa, when interchanging heads with differing centerlines, the torque wrench must be individually adjusted in each case!

Features

Rectangle insert 9×12 mm rsp. 14×18 mm.

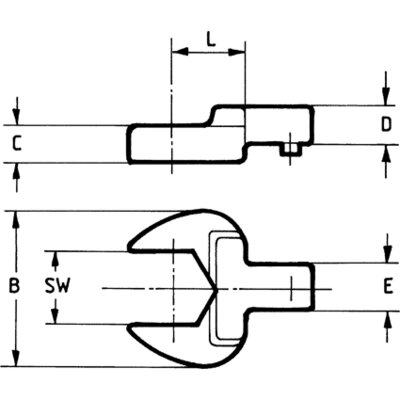

Centre line 17.5 mm rsp. 25 mm.
Secured by spring-loaded lock pin.
Forged alloy steel, chrome plated.

S9-OE

Model	Item No.	A/F [mm]	Max Torque [N·m]	Centre Line [mm]	Insert [mm]
S9 OE 7	R 716050	7	n.a.	17.5	9×12
S9 OE 8	R 716051	8	n.a.	17.5	9×12
S9 OE 9	R 716052	9	n.a.	17.5	9×12
S9 OE 10	R 716053	10	n.a.	17.5	9×12
S9 OE 11	R 716054	11	n.a.	17.5	9×12
S9 OE 12	R 716055	12	n.a.	17.5	9×12
S9 OE 13	R 716056	13	n.a.	17.5	9×12
S9 OE 14	R 716057	14	n.a.	17.5	9×12
S9 OE 15	R 716058	15	n.a.	17.5	9×12
S9 OE 16	R 716059	16	n.a.	17.5	9×12
S9 OE 17	R 716060	17	n.a.	17.5	9×12
S9 OE 18	R 716061	18	n.a.	17.5	9×12
S9 OE 19	R 716062	19	n.a.	17.5	9×12

S14-OE

Model	Item No.	A/F [mm]	Max Torque [N·m]	Centre Line [mm]	Insert [mm]
S14 OE 13	R 716556	13	n.a.	25	14×18
S14 OE 14	R 716557	14	n.a.	25	14×18
S14 OE 15	R 716558	15	n.a.	25	14×18
S14 OE 16	R 716559	16	n.a.	25	14×18
S14 OE 17	R 716560	17	n.a.	25	14×18
S14 OE 18	R 716561	18	n.a.	25	14×18
S14 OE 19	R 716562	19	n.a.	25	14×18
S14 OE 21	R 716564	21	n.a.	25	14×18
S14 OE 22	R 716565	22	n.a.	25	14×18
S14 OE 24	R 716566	24	n.a.	25	14×18
S14 OE 27	R 716567	27	n.a.	25	14×18
S14 OE 30	R 716568	30	n.a.	25	14×18
S14 OE 32	R 716569	32	n.a.	25	14×18

All specifications without guarantee, errors and omissions excepted.
