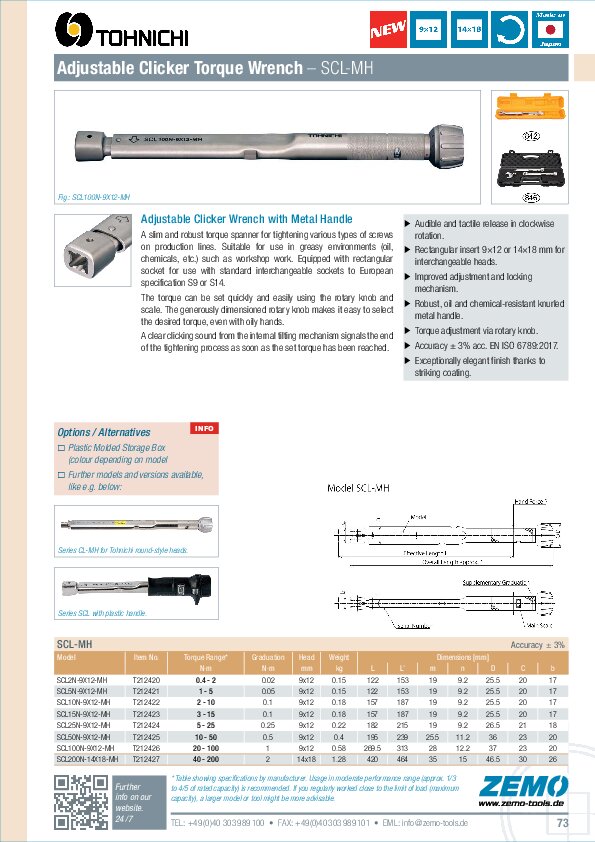

Tohnichi SCL-MH Adjustable Torque Wrench

Capacity 2 / 5 / 10 / 25 / 50 / 100 / 200 Nm

Adjustable Clicker Wrench with Rectangular Insert and Metal Handle

Robust clicker wrench for tightening various types of bolts on production lines or in service applications. For use with interchangeable heads with rectangular ('DIN') connector.

Torque adjustment is easily adjusted by rotary knob and scale. A distinct 'click' sound signals the completion of tightening upon reaching the set torque.

Key Features

Repeatability according to DIN EN ISO 6789 type II class A
For interchangeable attachments with elongated corner mount ('DIN')
Torque adjustment by means of rotary knob and scale
Robust knurled metal handle

Scope of Supply

Torque wrench SCL-MH
Traceable calibration certificate (ISO/JCSS)
Operating manual

Options / Accs / Spares

Interchangeable heads with rectangle ('EU') connector.

SCL-MH

Model	Item No.	Torque Range [N·m]	Graduation	Insert [mm]	Length [mm]	Weight [kg]
SCL2N-9X12-MH	T212420	0.4 - 2	0.02	9×12	153	0.15
SCL5N-9X12-MH	T212421	1 - 5	0.05	9×12	153	0.15
SCL10N-9X12-MH	T412422	2 - 10	0.1	9×12	187	0.18
SCL15N-9X12-MH	T212423	3 - 15	0.1	9×12	187	0.18
SCL25N-9X12-MH	T212424	5 - 25	0.25	9×12	215	0.22
SCL50N-9X12-MH	T212425	10 - 50	0.5	9×12	239	0.40
SCL100N-9X12-MH	T212426	20 - 100	1	9×12	313	0.58
SCL200N-14X18-MH	T212427	40 - 200	2	14×18	464	1.28

Table showing specifications by the manufacturer. It is recommended to primarily use in medium performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (maximum capacity), a larger model or tool might be more advisable.

Overall length does not include interchangeable head. SCL-MH models can be used only with European type interchangeable heads. Cannot be used with regular (round-style) interchangeable heads manufactured by Tohnichi.

All technical data without guarantee, errors and omissions excepted.
