S9/S14 Square Drive Ratchet Head

Centre Line: miscellaneous

Interchangeable reversible square drive ratchet head with DIN rectangle connector 9×12 mm resp. 14×18 mm. The head is secured by a spring-loaded lock pin. Square drive according to DIN 3120A. The load capacity is dependent on the width A/F and may be less than the capacity of the used clicker wrench.

Interchangeable heads with the same centre line may be interchanged among themselves arbitrarily, without needing the torque wrench to be adjusted again. Vice versa, when interchanging heads with differing centre lines, the torque wrench must be individually adjusted in each case!

Features

Square drive acc. DIN 3120A
Right/Left reversible
Rectangle insert 9×12 mm rsp. 14×18 mm

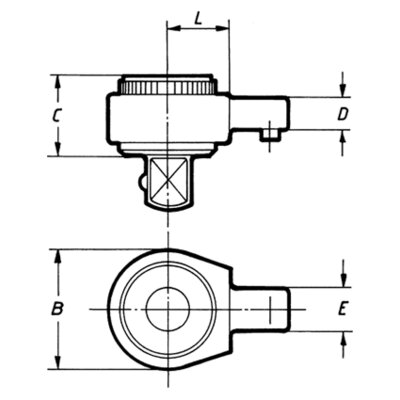

Centre line due to model
Forged alloy steel, partially chrome plated

S9-SDRT

Model	Item No.	Sq Drv [inch]	Max Torque [N·m]	Centre Line [mm]	Insert [mm]
S9-SDRT-1/4	R 716222	1/4	25	20	9×12
S9-SDRT-3/8	R 716223	3/8	80	17.5	9×12
S9-SDRT-1/2	R 716224	1/2	100	17.5	9×12

S14-SDRT

Model	Item No.	Sq Drv [inch]	Max Torque [N·m]	Centre Line [mm]	Insert [mm]
S14-SDRT-1/2	R 716724	1/2	250	25	14×18
S14-SDRT-3/4	R 716725	3/4	300	25	14×18

All specifications without guarantee, errors and omissions excepted.
