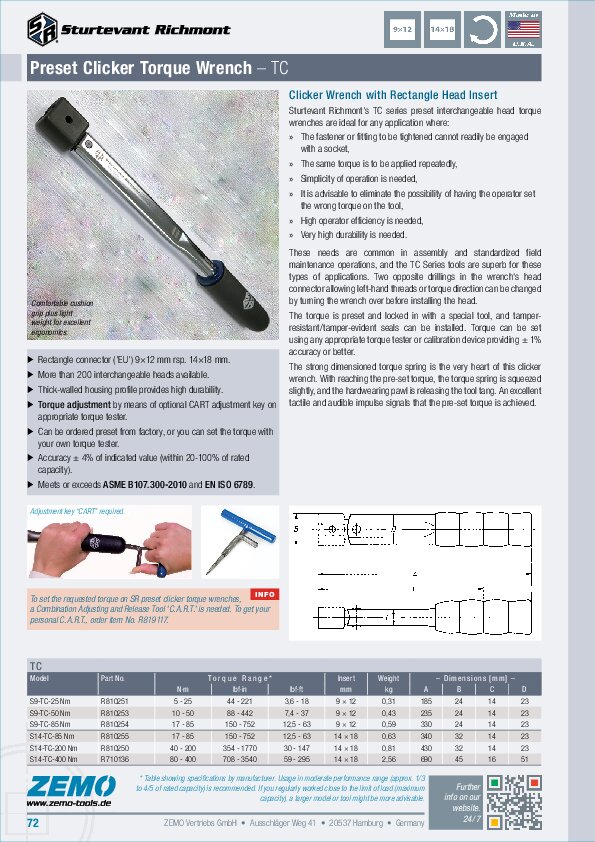

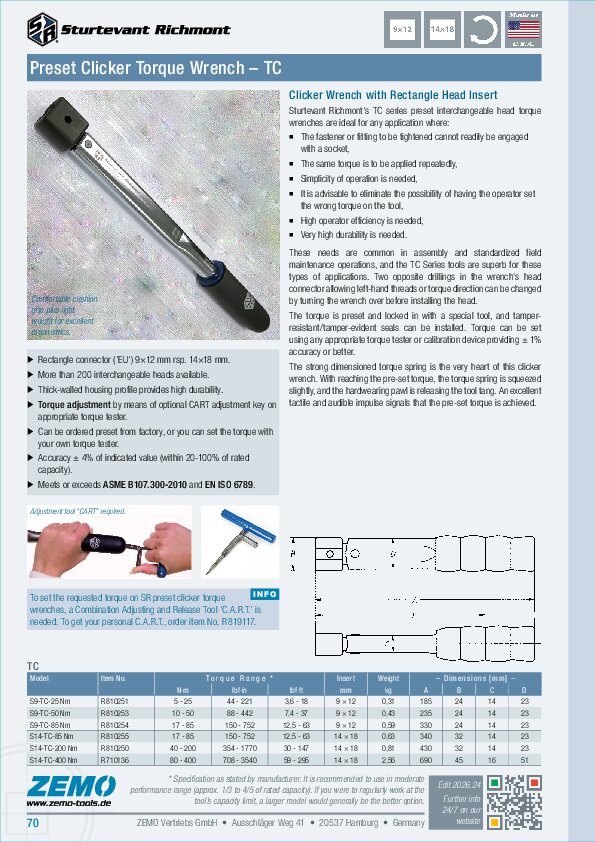

Sturtevant Richmont TC Preset Torque Wrench

Capacity 25 / 50 / 85 / 200 / 400 Nm

Preset Clicker Torque Wrench with "DIN style" rectangle insert

The TC series preset interchangeable head torque wrenches are ideal for any application where:

The fastener or fitting to be tightened cannot readily be engaged with a socket,
The same torque is to be applied repeatedly,
It is advisable to eliminate the possibility of having the operator set the wrong torque on the tool,
High operator efficiency is needed,
Simplicity of operation is needed,
Very high durability is needed.

These needs are common in assembly and standardized field maintenance operations, and the TC Series tools are superb for these types of applications. Two opposite drillings in the wrench‘s head connector allowing left-hand threads or torque direction can be changed by turning the wrench over before installing the head.

The torque is preset and locked in with a special tool, and tamper-resistant/tamper-evident seals can be installed. Torque can be set using any torque tester or calibration device providing ± 1% accuracy or better.

The strong dimensioned torque spring is the very heart of this clicker wrench. With reaching the pre-set torque, the torque spring is squeezed slightly, and the hardwearing pawl is releasing the tool tang. An excellent tactile and audible impulse signals that the pre-set torque is achieved.

Key Features

Accuracy ± 4% of indicated value (within 20-100% of capacity).
Meets or exceeds ASME B107.300-2010 and EN ISO 6789.
Rectangle connector (DIN) 9×12 mm rsp. 14×18 mm.
Thick-walled housing profile provides high durability.
Torque adjustment via optional C.A.R.T. (p/n 819117).
Oil and chemicals resisting vinyl handle for optimal hand position.

Options, Accs & Spares

Can be ordered preset from factory. Please mention in purchase order if wanted.

Series TC

Model	Item No.	Torque Range [N·m]	Insert [mm]	Weight [kg]	Length [mm]	Handle
S9TC-25 Nm	R 810251	5 - 25	9×12	0.31	185	Soft
S9TC-50 Nm	R 810253	10 - 50	9×12	0.43	235	Soft
S9TC-85 Nm	R 810254	17 - 85	9×12	0.59	330	Soft
S14TC-85 Nm	R 810255	17 - 85	14×18	0.63	340	Soft
S14TC-200 Nm	R 810250	40 - 200	14×18	0.81	430	Soft
S14TC-400 Nm	R 710136	80 - 400	14×18	2.56	690	MG

Table showing specifications by the manufacturer. It is recommended to primarily use in medium performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (maximum capacity), a larger model or tool might be more advisable.

MG = Knurled Metal Grip.

All technical data without guarantee, errors and omissions excepted.
