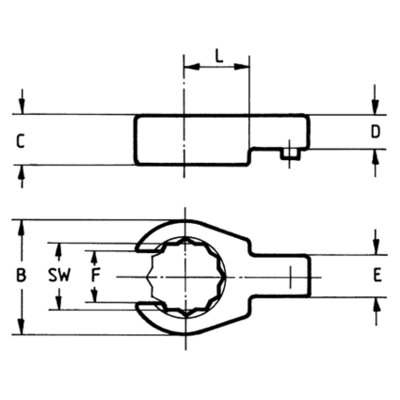

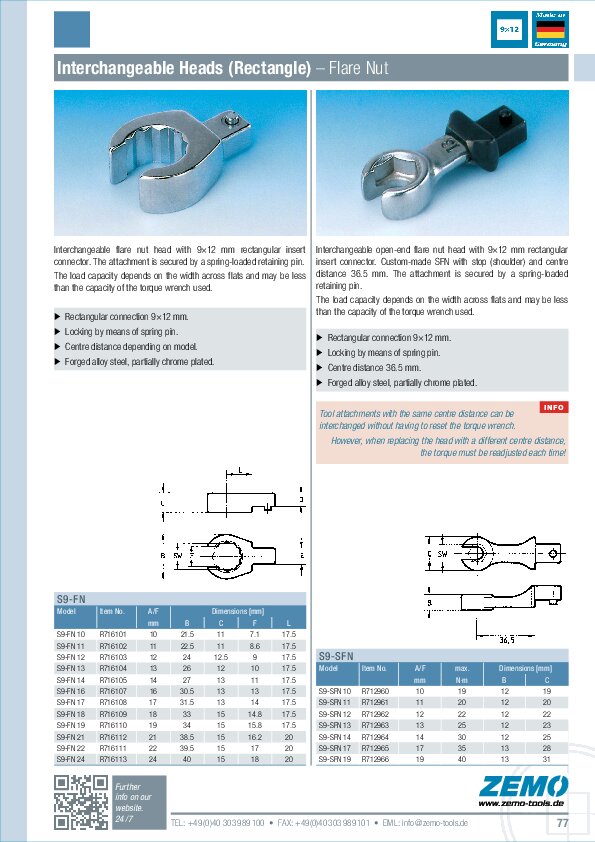

S9 Flare Nut Head

Centre Line: 17.5 mm

Interchangeable flare nut head with 'DIN' rectangle insert connector 9×12 mm. The head is secured by a spring-loaded lock pin. The load capacity is dependent on the width A/F and may be less than the capacity of the used torque wrench.

Interchangeable heads with the same centre line may be interchanged among themselves arbitrarily, without needing the torque wrench to be adjusted again. Vice versa, when interchanging heads with differing centre lines, the torque wrench must be individually adjusted in each case!

Features

Rectangle insert 9×12 mm.
Secured by spring-loaded lock pin.
Centre line 17.5 mm.
Forged alloy steel, chrome plated.

S9-FN

Model	Item No.	A/F [mm]	Max Torque [N·m]	Centre Line [mm]	Insert [mm]
S9-FN-10	R 716101	10	n.a.	17.5	9×12
S9-FN-11	R 716102	11	n.a.	17.5	9×12
S9-FN-12	R 716103	12	n.a.	17.5	9×12
S9-FN-13	R 716104	13	n.a.	17.5	9×12
S9-FN-14	R 716105	14	n.a.	17.5	9×12
S9-FN-17	R 716108	17	n.a.	17.5	9×12
S9-FN-18	R 716109	18	n.a.	17.5	9×12
S9-FN-19	R 716110	19	n.a.	17.5	9×12
S9-FN-22	R 716111	22	n.a.	17.5	9×12
S9-FN-24	R 716113	24	n.a.	17.5	9×12

All specifications without guarantee, errors and omissions excepted.
