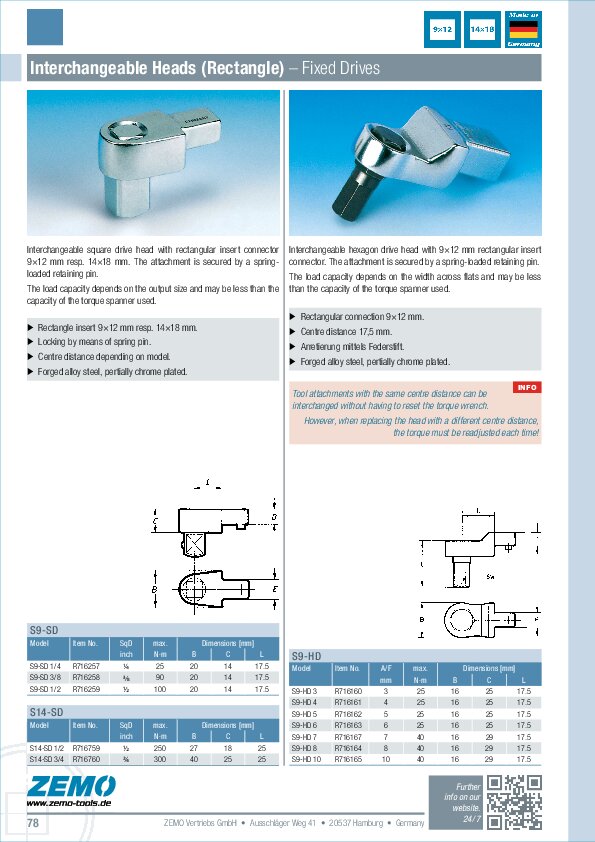

S9/S14 Square Drive Head

Centre Line: miscellaneous

Interchangeable square drive head with 'DIN' rectangle insert connector 9×12 mm resp. 14×18 mm. The head is secured by a spring loaded lock pin. Square drive according to DIN 3120A. The load capacity is dependenton the width A/F and may be less than the capacity ofthe used clicker wrench.

Interchangeable heads with the same centre line may be interchanged among themselves arbitrarily, without needing the torque wrench to be adjusted again. Vice versa, when interchanging heads with differing centre lines, the torque wrench must be individually adjusted in each case!

Features

Rectangle insert 9×12 mm rsp. 14×18 mm.
Fixed male square drive.

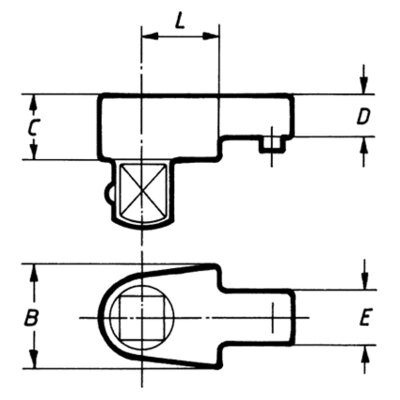

Centre line 17.5 mm rsp. 25 mm.
Forged alloy steel, chrome plated.

S9-SD

Model	Item No.	Sq Drv [inch]	Max Torque [N·m]	Centre Line [mm]	Insert [mm]
S9-SD-1/4	R 716257	1/4	25	17.5	9×12
S9-SD-3/8	R 716258	3/8	90	17.5	9×12
S9-SD-1/2	R 716259	1/2	100	17.5	9×12

S14-SD

Model	Item No.	Sq Drv [inch]	Max Torque [N·m]	Centre Line [mm]	Insert [mm]
S14-SD-1/2	R 716759	1/2	250	25	14×18
S14-SD-3/4	R 716760	3/4	300	25	14×18

All specifications without guarantee, errors and omissions excepted.
