S9 Bit Ratchet Head

Centre Line: 20 mm

Interchangeable reversible bit ratchet head with DIN rectangle connector 9×12 mm. The head is secured by a spring-loaded lock pin. Bit insert according to DIN 3126. The load capacity is dependent on the width A/F and may be less than the capacity of the used clicker wrench.



Interchangeable heads with the same centre line may be interchanged among themselves arbitrarily, without needing the torque wrench to be adjusted again. Vice versa, when interchanging heads with differing centre lines, the torque wrench must be individually adjusted in each case!



Features



  • Female bit insert (1/4“ DIN 3126)
  • Right/Left reversible
  • Rectangle connector 9×12 mm
  • Centre line due to model
  • Forged alloy steel, partially chrome plated
S9-HRT

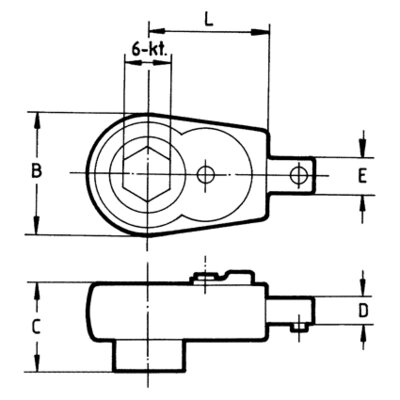

Model Item No. Hx Drv [inch] Max Torque [N·m] Centre Line [mm] Insert [mm]
S9-HRT-1/4 R 716230 1/4 25 17.5 9×12
S9-HRT-5/16 R 716231 5/16 n.a. 28 9×12

All specifications without guarantee, errors and omissions excepted.
