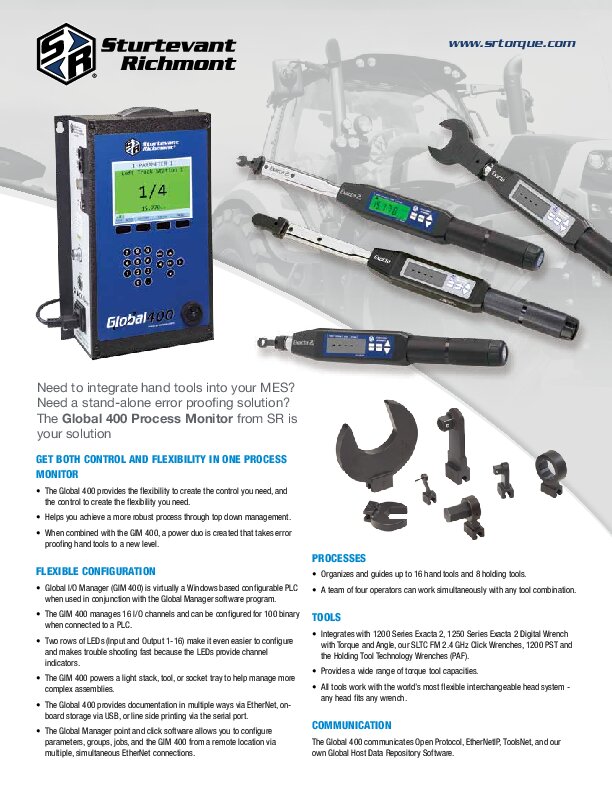

Sturtevant Richmont Global 400 / 400mp Torque Process Monitoring System

FM 2.4 GHz XBee

Wireless Torque Controller System



The Global 400 performs as a station dedicated process controller that organizes, directs workers, tools, and tasks. It also brings a powerful networking capability not previously available in the Global 8 and the Global 100 series.



Mixed Model Manufacturing Mandates Flexibility



Sturtevant Richmont specializes in solving the most complex assembly challenges. The Global 400 is designed to organize work stations where highly customized products are assembled. It can work with 16 primary torque tools, 8 holding tools, and an additional 8 I/O tools. It has the capacity for 200 sets of parameters that can be grouped allowing 4 operators to work as a team. These parameters or groups can be formed into jobs containing a fixed build sequence of up to 35 steps.



Mixed Model Manufacturing Mandates Communication



The Global 400 communicates with the operators, the tools, and your network in multiple ways. Parameters or jobs can be assigned via the Ethernet or by the operator via a bar code scanner. Tools can be selected or programmed wirelessly, while the controller displays the required work to the operator. As the operator works through their task, the tools and controller provide auditory, tactile, and visual guidance. The tools provide the controller with immediate notification of operator results. The controller stores up to 10,000 results in on-board memory, and automatically updates your production system via multipleprotocols. No production interruptions!



The "mp" (Multi-Port) Takes You To The Next Level



The Global 400mp distributes all the power, flexibility, ease and capabilities of the Global 400 over four (4) individual network interfaces. The result? Up to four (4) operators can work independently and don't even have to be in the same work cell.Four separate network interfaces and Global 400mp architecture eliminate the need for groups in order to support simultaneous work.



Parameters are formed directly into jobs. With 4 network interfaces each operator can work on their own job, independant of the other operators. The Global 400mp can be applied to assembly, repair, and maintenance operations. The Global 400mp works with up to 16 torque tools, 8 holding tools and 8 I/O tools divided among the 4 network interfaces.



System Capabilities (Both)



  • 6-inch diagonal, back-lit, colour LC-Display.
  • 2x RJ45 Ethernet ports allow for chain, or ring network communication.
  • USB-A connector for use with bar code scanner, or updating firmware, and saving files.
  • RS-232 DB-9 connector for use with serial bar code scanner or serial printer.
  • 10-pin I/O connector providing discrete I/O capabilities.
  • 5-pin connector for the additional I/O capabilities of the optional GIM400.
  • Power Supply 100-240V AC at 50-60 Hz.
  • Key switch for programming access/lock. 21-function keys for programming.
  • Adjustable and programmable beeper for audio communication.
  • SR Global Manager (included).



Supported Protocols



  • EtherNet IP
  • Open Protocol
  • ToolsNet
  • Profinet
  • PFCS
  • Toyota






Options / Accs



  • GIM-400 Global Input/Output Multiplier

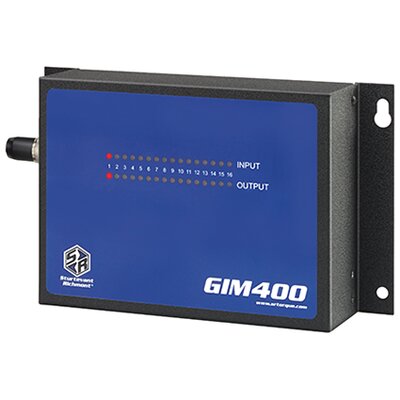

    The GIM-400 is a very flexible accessory for the Global 400 and Global 400mp. It is virtually a Windows-based PLC that can be configured using the Global Manager Freeware that is included with every controller. It can be configured to provide 24V DC to power the 16 I/O. By adding an additional 3 GIM-400 a total of 64 I/O is possible. A single GIM-400 can also be configured to connect with a PLC in a binary fashion, providing up to 100 I/O. A serial bus cable along with all the appropriate Phoenix connectors are provided with the GIM-400.



  • GSM-400 Global Barcode Scanner Manager
    The GSM-400 is a perfect accessory to the Global 400mp. Powered off the USB port (on the side of the Global 400mp) it allows connection for up to four (4) serial barcode scanners. Each scanner can be assigned to a network interface and the GSM keeps the scanner and interface paired.



  • Global Host Software
    Global Host conslidates data from all torque tools in one place. It is easy to use and provides powerful business intelligence into your torque quality. Global Host runs over SQL Server.

    > With Global Host, you can consolidate all torque data from all torque tools into one database. That means DC Nut Runners too.

    > Global Host is network failure agnostic. Because Global Host is subscribed to each controller and tool on the network, it constantly polls each element on the network and knows the status and count of each tool. If the network fails, work can continue. How is that work accounted for? Global Host looks at the history and notes that the last time there was communication, the tool had 93 fastenings in the history log. The current fastening count for that tool might now be 118. Global Host automatically pulls the data for fastenings 94 through 118 so the history log is completely up to date.

    > Web-based reporting, anywhere in the network, is available in real-time. You can connect Global Host to a large display in your assembly area. You can also log in to see additional data that is not included on the display. You control what data is on your screen and in your reports. If you add an item to the reporting, the history is also included.

    > Export to Excel, Power BI, Access, Tableau, or other programs to sort and parse data. There is additional data that you may not want visible on the display. This gives you powerful information about the state of your assembly processes and the tools that are being used.

    > Auto-triggered print functionality, based group batch function so you can print a “digital birth certificate” for each assembly that you produce. You can use a variety of printers to print these labels. You can customize what information you want on any label.

    > You can try Global Host for free. Our free trial works for 24 hours and works for two tools and one controller. After twenty-four hours the data is erased and the free trial recycles. There is no limit on how long you can use the free trial. But remember, the trial only retains data for one day.






Order Codes



  • R10474 = 10-pin I/O cable
  • R10497(EU) = Global 400
  • R10612(EU) = Global 400mp
  • R10622 = Global Host Software
  • R10611 = GIM 400
  • R10613 = GSM 400






Related Products



  • 1200 Exacta 2
  • 1250 Exacta 2
  • 1350 Exacta 2
  • 1350 TD
  • 2100 PTA
  • 2100 PTP
  • 2200 PTP
  • GIM 400
  • GSM 400
  • HT 2.4 GHz
  • SLTC-FM 2.4 GHz
  • TAC 2.4 GHz
