Yokota YX Impulse Wrench

Torque Range 7.5 / 20 / 30 / 40 / 60 / 300 / 500 Nm

Hi-Tech Impulse Tool with Twin-Blade Pulse Mechanism



Yokota impulse wrenches are widely used for tightening jobs in the assembly industry, where accurate torque tolerances are necessary. Impulse tools are light, powerful, small and very importantly, have no kick-back, in common with a high repeatability as well as low noise and vibration level. Evaluation of tightening processes in car assembly shows that tightening joints uses 10% of the total assembly time. Working with faster tools therefore can speed up assembly lines substantially.



Key Features



  • The patented Twin Blade Impulse Mechanism allows oil-reduced operating.
  • Air treatment unit should be switched-in to decrease wear and maintenance needs.
  • All YX models are equipped with a 2-Step-Trigger.
  • The 3/8” and 1/2” square drive models feature a locking pin enabling fast change of sockets. Models with “A” featuring 1/4” hexagon quick change coupling.
  • Specified technical data are measured on the Yokota testers series YET at a dynamic air pressure of 0.63 MPa. The Yokota testers have a static transducer, therefore the specific torques are to be used as a guidance only.
  • Applying reaction-free Yokota impulse wrenches at the assembly line reduces the RSI risk significantly.

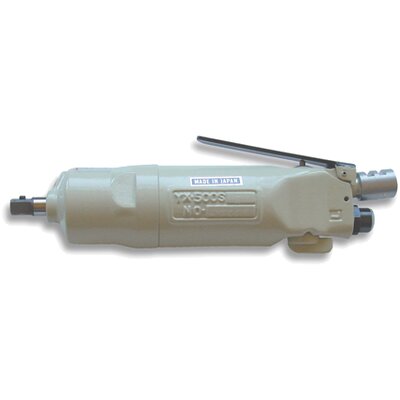

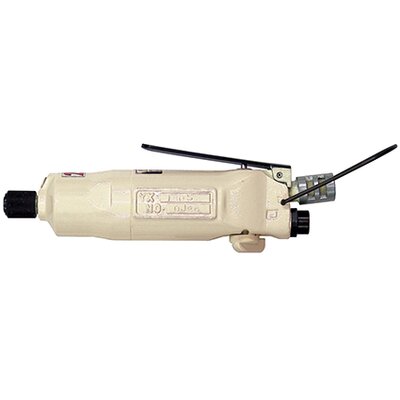

Series YX – Straight Shape
Model Item No. Sq.D [inch] Hx.D [inch] Bolt Capacity Free Speed [1/min] Torque Range [N·m] Air Cons. [l/s] Weight [kg] Vibration [m/s²] Noise Level [db(A)]
YX-180SA 410180 1/4 M4 - M6 11000 20 - 24 4.2 1.00 2.5 83
YX-280SA 410001 1/4 M6 - M8 10500 23 - 29 5.0 1.06 2.5 83
YX-380SA 410191 1/4 M8 9000 29 - 34 5.0 1.25 2.5 81
YX-500SA 410104 1/4 M8 - M10 7500 31 - 40 5.0 1.35 2.9 81
YX-180SE 410181 3/8 M4 - M6 11000 24 - 28 4.2 1.00 3.0 83
YX-280SE 410003 3/8 M6 - M8 10500 24 - 33 5.0 1.07 4.1 83
YX-380SE 410192 3/8 M8 9000 32 - 38 5.0 1.25 2.9 81
YX-500SE 410101 3/8 M8 - M10 7500 38 - 46 5.0 1.35 3.0 81
YX-700SE 410111 3/8 M8 - M10 5000 39 - 58 5.8 1.75 3.9 82
Series YX – Angled Shape
Model Item No. Sq.D [inch] Hx.D [inch] Bolt Capacity Free Speed [1/min] Torque Range [N·m] Air Cons. [l/s] Weight [kg] Vibration [m/s²] Noise Level [db(A)]
YX-280C 410006 3/8 M4 - M6 10000 20 - 24 5.0 1.33 n.a. 86
YX-500C 410105 3/8 M6 - M8 7500 30 - 36 5.0 1.66 n.a. 80
YX-700C 410115 3/8 M8 - M10 5000 30 - 40 5.8 2.03 n.a. 82
Series YX – Pistol Shape
Model Item Code Sq.D [inch] Hx.D [inch] Bolt Cap. Free Speed [1/min] Torque Range [N·m] Air Cons. [l/s] Weight [kg] Vibration [m/s²] Noise Level [db(A)]
YX-80A 410XXX 1/4 M4 - M5 9000 5.5 - 7.5 5.0 0.79 2.5 86
YX-3000 410150 3/4 M16 - M18 4500 280 - 300 10.0 5.28 2.8 80
YX-4500 410160 3/4 M18 - M20 3400 490 - 500 11.7 10.4 2.5 87

All specifications without guarantee, errors and omissions excepted.
