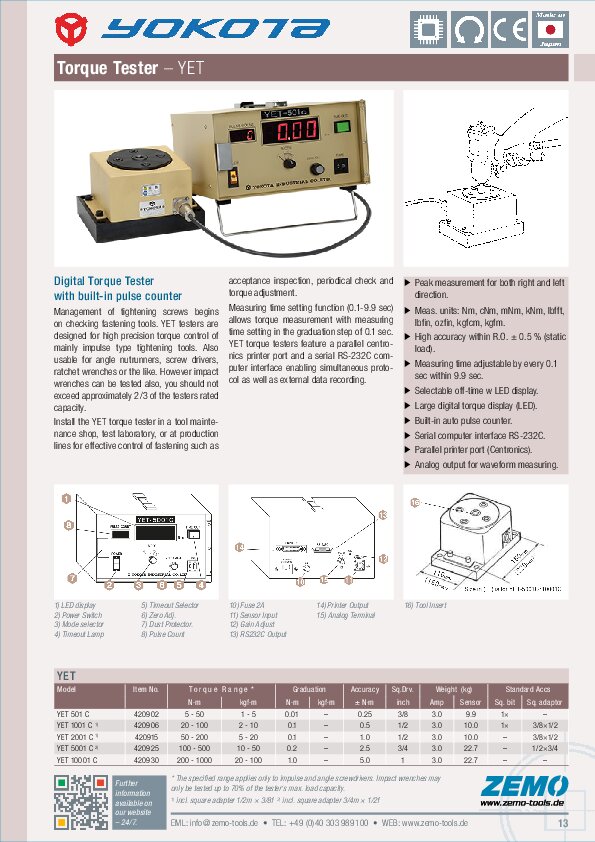

Yokota YET Digital Torque Tester

Capacity 50 / 100 / 200 / 500 / 1000 Nm

Digital Power Tool Tester with Pulse Counter

Management of tightening screws begins on checking fastening tools. YET testers are designed for high precision torque control of mainly impulse type tightening tools. Also usable for angle nutrunners, screw drivers, ratchet wrenches etc. However impact wrenches can be tested also, you should not exceed approx. 2/3 of the testers rated capacity.

Install the YET torque tester in a tool maintenance shop, test laboratory, or at production lines for effective control of fastening such as acceptance inspection, periodical check and torque adjustment. YET torque testers feature a parallel centronics printer port and a serial RS-232C computer interface enabling simultaneous protocol as well as external data recording.

Key Features

High accuracy within R.O. ± 0.5 % (stat. Load)
Large digital display (LED)
Measuring time can be set by every 0.1 sec within 9.9 sec.
Shut-off time can be set 1-2-3 sec., digital displayed
Able to measure in both right and left direction
Automatic pulse counter built in
Protective cover on front panel
Parallel port (Centronics)
Serial interface RS-232C (DB-25)

Scope of Supply

YET Tester (Amplifier)
Transducer (Sensor)
Signal cable
Square bit/adaptor (see chart/data sheet)
Operating Manual
Calibration Certificate

YET

Model	Item No.	Torque Range [N·m]	Torque Range [lbf·ft]	Sq.Drv [inch]	Weight Sensor [kg]	Weight Readout [kg]
YET-501 C	420902	10 - 50	7 - 36	3/8	9.9	3.0
YET-1001 C	420906	20 - 100	14 - 73	1/2	10.0	3.0
YET-2001 C	420915	50 - 200	36 - 147	1/2	10.0	3.0
YET-5001 C	420925	100 - 500	73 - 368	3/4	22.7	3.0
YET-10001 C	420930	200 - 1000	147 - 737	1	22.7	3.0

Stated measuring range is limited on impulse wrenches, screwdrivers and nutrunners only. Impact type tools should be measured within approximately 2/3 of above specified measuring range.

All specifications without guarantee, errors and omissions excepted.
