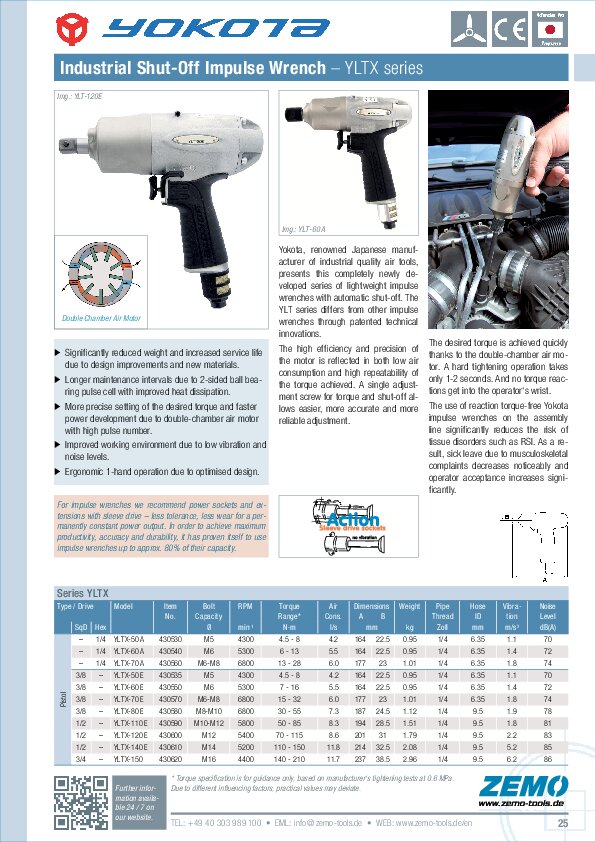

Yokota YLTX Shut-Off Impulse Wrench

Torque Range 8 / 15 / 30 / 50 / 80 / 110 / 150 / 210 Nm

Hi-Tec Shut-Off Impulse Tool



The lightweight Yokota YLT series impulse wrenches with double chamber air motor achieve the required torque very quickly. The tools have a high number of impulses per second, and therefore very accurate torques can be realised, resulting in increased production speed. Design innovation and the application of new materials significantly reduce the weight and increase the service intervals.



Yokota impulse wrenches are widely used for tightening jobs in the assembly industry, where accurate torque tolerances are necessary. Impulse tools are light, powerful, small and very importantly, have no kick-back. Evaluation of tightening processes in car assembly shows that tightening joints uses 10% of the total assembly time. Working with faster tools therefore can speed up assembly lines substantially.



Key Features



  • No lube air motor to protect the environment.
  • Extended oil-change intervals.
  • Lightweight.
  • Low air consumption, high efficiency air motor.
  • High durability, due to improved air motor design features, with special patented air motor vanes.
  • Improved ergonomic design.
  • Low noise and vibration levels.
  • Low trigger force.
  • The 3/8” and 1/2” square drive models feature a locking pin enabling fast change of sockets. Models with “A” featuring 1/4” hexagon quick change coupling.
  • Applying reaction-free Yokota impulse wrenches at the assembly line reduces the RSI risk significantly.
YLTX series
Model Item No. SqDrv [inch] Bolt Cap. Torque Range [N·m] Weight [kg]
YLTX-50E 430535 3/8 M5 4.5 - 8 0.95
YLTX-60E 430550 3/8 M6 7 - 16 0.95
YLTX-70E 430570 3/8 M6 - M8 15 - 32 1.01
YLTX-80E 430580 3/8 M8 30 - 55 1.12
YLTX-110E 430590 1/2 M10 - M12 50 - 85 1.51
YLTX-120E 430600 1/2 M12 70 - 115 1.79
YLTX-140E 430610 1/2 M14 110 - 150 2.08
YLTX-150 430620 3/4 M16 140 - 210 2.96
YLTX(A) series
Model Item No. HxDrv [inch] Bolt Cap. Torque Range [N·m] Weight [kg]
YLTX-50A 430530 1/4 M5 4.5 - 8 0.95
YLTX-60A 430540 1/4 M6 6 - 13 0.95
YLTX-70A 430560 1/4 M6-M8 13 - 28 1.01

Specified technical data are measured on the Yokota tester series YET at a dynamic air pressure of 0.63 MPa. The Yokota testers have a static transducer, therefore the specific torques are to be used as a guidance only.

All specifications without guarantee, errors and omissions excepted.
