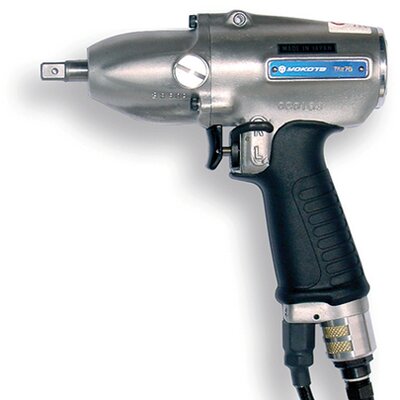

Yokota TKa System Impulse Wrench

Torque Range 20 / 35 / 45 / 65 / 100 / 130 / 160 / 220 Nm

Transducerized Smart Impulse Tool



The TKa system wrenches are equal to the YEX-series, but with the added feature of a double chamber airmotor. The system wrenches with double chamber air motor achieve the required torque very quickly. The tools generate a high number of impulses per second, and therefore very accurate torques can be realized. Ontop of that, TKa series have lighter weight, can run on oil-free air and offer best ergonomics. TKa series can be delivered optionally with LED signalling instead of buzzer.



Four strain gauges are positioned on the mainshaft, picking up the twisting torque on the main shaft at each impulse as close as possible to the socket. The electric signals are transmitted by induction through the internal and external coils. Due to this principle the Yokota transducer is very reliable, accurate and without wear. TKa system impulse wrenches perfectly qualify for documentation-liable tightening joints in industrial assembly.



Applying reaction-free Yokota impulse wrenches at the assembly line reduces the RSI risk significantly.



Key Features



  • Equipped with the patented Yokota Twin Blade Impulse Mechanism.
  • Double chamber air motor for high-speed tightening.
  • No lube air motor to protect the environment.
  • Extended oil-change intervals.
  • Lightweight.
  • Low air consumption, high efficiency air motor.
  • High durability, due to improved air motor design features, with special patented air motor vanes.
  • Improved ergonomic design.
  • Low noise and vibration levels.
  • Low trigger force.
  • Integrated transducer enables full torque control.

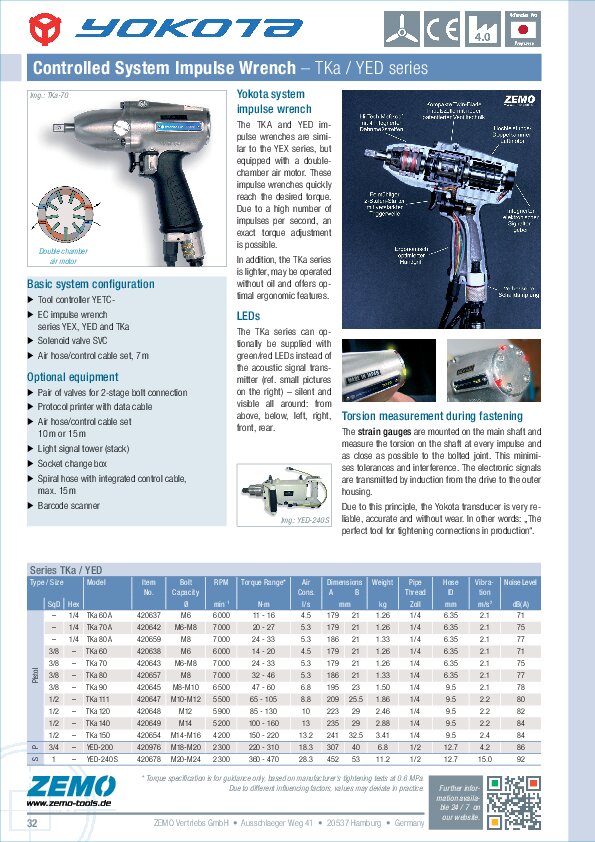

Series TKA
Model Item No. Sq.D [inch] Hx.D [inch] Bolt Capacity Free Speed [1/min] Torque Range [N·m] Air Cons. [l/s] Weight [kg] Vibration [m/s²] Noise Level [dBA]
TKa-60A 420637 1/4 M6 6000 11 - 16 4.5 1.26 2.1 71
TKa-70A 420642 1/4 M6 - M8 7000 20 - 27 5.3 1.26 2.1 75
TKa-80A 420659 1/4 M8 7000 24 - 33 5.3 1.33 2.1 73
TKa-60 420638 3/8 M6 6000 14 - 20 4.5 1.26 2.1 71
TKa-70 420643 3/8 M6 - M8 7000 24 - 35 5.5 1.26 2.1 75
TKa-80 420657 3/8 M8 7000 32 - 46 5.3 1.33 2.1 73
TKa-90 420645 3/8 M8 - M10 6500 47 - 60 6.8 1.50 2.1 78
TKa-111 420655 1/2 M10 - M12 6000 65 - 105 8.8 1.86 2.2 80
TKa-120 420648 1/2 M12 5900 85 - 130 10.0 2.46 2.2 82
TKa-140 420649 1/2 M14 5200 100 - 160 13.0 2.88 2.2 84
TKa-150 420654 1/2 M14 - M16 4200 150 - 220 13.2 3.41 2.4 84

Torque specification is only a guide value, based on the manufacturer‘s bolting tests at 0.6 MPa. Due to different influencing factors, practical values may deviate.



All specifications without guarantee, errors and omissions excepted.
