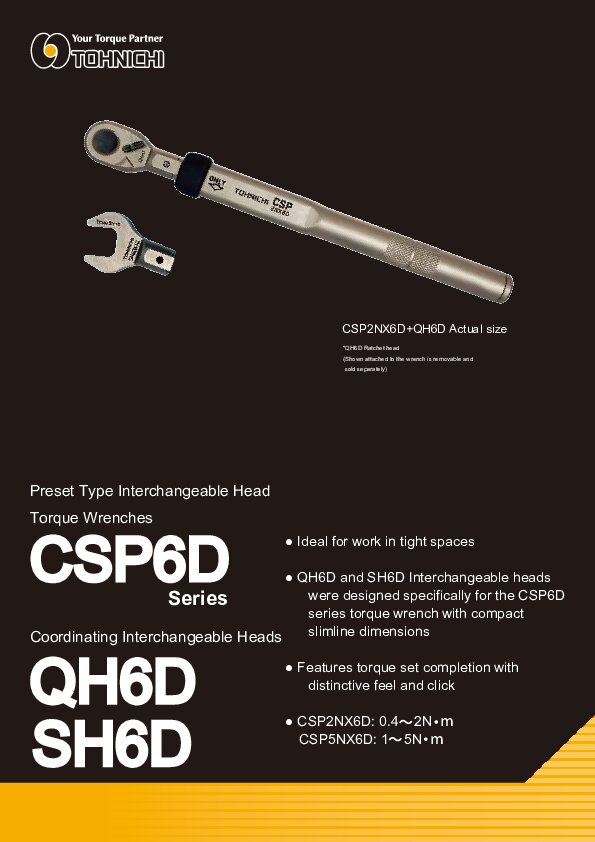

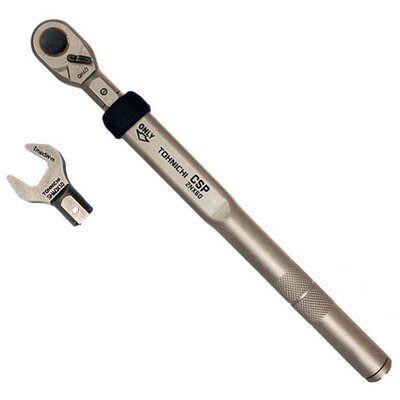

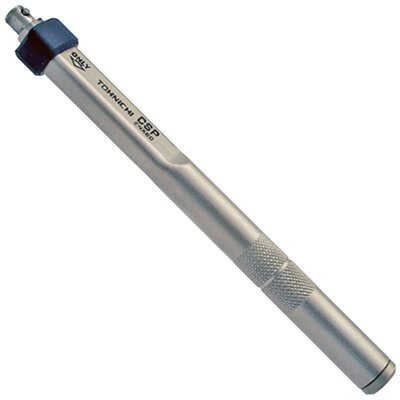

Tohnichi CSP6D Preset Torque Wrench

Small Preset Clicker Wrench for Low Torque Values

The CSP6D is a torque wrench that is useful in confined spaces where swing arcs and width and height restrictions would otherwise prevent tightening operations. The slimmer body, smaller head and just half the swing angle greatly decrease tool obstruction. This permits torque operations in confined spaces that were impossible to tackle before.

Slim pressure bar and partial knurled finish provide visual and touch aids for accurate positioning. If torque wrench force is not applied at the proper position correct torque will not be detected. Internal linking design has been improved, offering an easily recognizable clicking sound when set torque is reached. The responsive clear click improves tightened-to-completion sensation.

QH6D and SH6D series interchangeable heads have significant smaller exterior dimensions than 8D series. Ratchet head QH6D uses 48-tooth gear. This prevents failed ratcheting due to half the conventional swing arc (7.5°), and offers rapid tightening.

Ordering Notes

• CSP6D is preset, so a tester is required when setting the torque. When ordering, be sure to specify required operating torque:
  [Example 1] - Tohnichi CSP2NX6D = torque free
  [Example 2] - Tohnichi CSP5NX6DX4NM = 4 N·m


• When ordering, if you specify the set torque value Tohnichi optionally can issue a Calibration Certificate.

Options / Accs / Spares

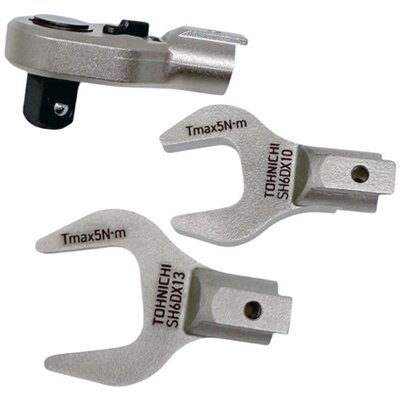

• Spanner heads SH6D:
  - T281381 = 5.5 mm, Tmax 1.5 Nm
  - T281382 = 6 mm, Tmax 2.5 Nm
  - T281383 = 7 mm, Tmax 3.5 Nm
  - T281384 = 8 mm, Tmax 5 Nm
  - T281385 = 10 mm, Tmax 5 Nm
  - T281386 = 11 mm, Tmax 5 Nm
  - T281387 = 12 mm, Tmax 5 Nm
  - T281388 = 13 mm, Tmax 5 Nm
  - T281389 = 14 mm, Tmax 5 Nm
  - T281390 = 16 mm, Tmax 5 Nm
  - T281391 = 17 mm, Tmax 5 Nm
  - T281392 = 19 mm, Tmax 5 Nm


• Ratchet head QH6D:
  - T283000 = 1/4 inch


• Adjusting Tool:
  - T289931 = Tohnichi #931
