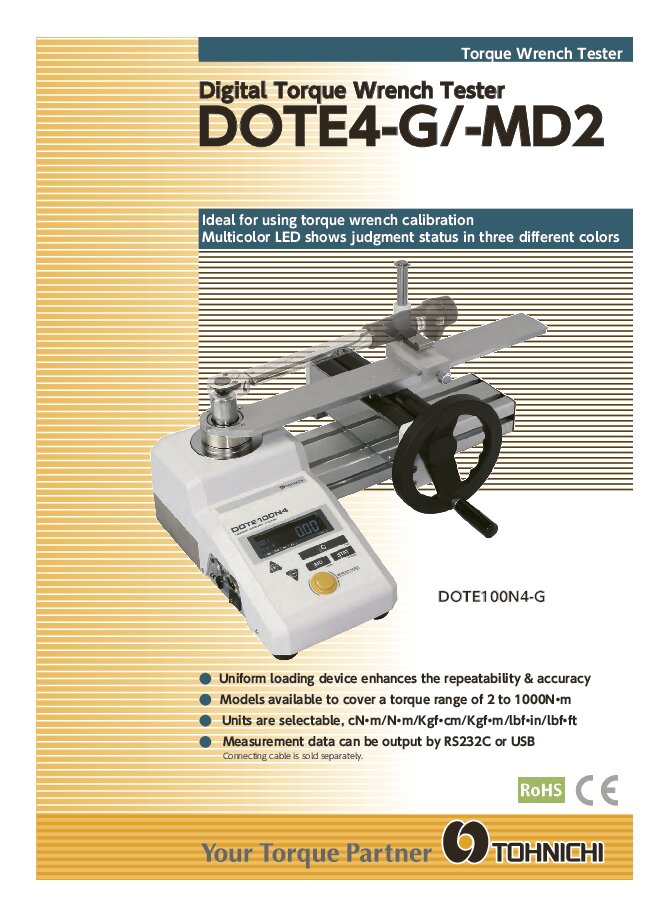

Tohnichi DOTE4-G Digital Torque Wrench Tester

Capacity 10 / 20 / 50 / 100 / 200 / 500 / 1000 Nm

Digital Tester for Calibration and Adjustment of Torque Wrenches

DOTE4-G digital torque wrench tester models have a Pass/Fail Judgement function. The LCD panel displays values in color, making it easy to verify whether measurement readings are within set parameters.

The loading device acts on the effective length of the torque wrench. This means that calibration conditions are uniform, permitting measurement accuracy. Torque measurement resolution is more than double what was offered by the preceding DOTE3-G models.

Upper and lower parameter values can be entered by keystroke, or by entering a command in an external device, such as a computer or barcode reader. (Dedicated software ordered separately is required to enter a command from an external device.)

Outputs measurement results to a computer or dedicated printer, using RS232C / USB output connector. DtRcv (Data Receiver) is a wired data input tool facilitating Excel® data management, and can be downloaded without charge. (Excel® is a registered trademark of Microsoft Corporation.) To connect DOTE4-G to a PC, Cable No. 383 or No. 385 (sold separately) is required.

The large DOTE500N4(-G) and DOTE1000N4(-G) models offer an optimal display position, making it easy to read the display during work. DOTE4-G-MD2 models have a loading device with electric motor, ideal for calibrating, adjusting and repairing many torque wrenches.

Features

Accuracy ±% +1 digit.
Black mask LCD, White-Red-Blue.
Data memory for 1000 readings.
Measuring modes: Peak, Run.
Global units of measure selection: cN·m, N·m, kgf·cm, kgf·m, lbf·in, lbf·ft.
Sample quantity, maximum value (Hi), minimum value (Lo) and mean value can be displayed.
Manual and Auto Reset from 0.1 - 5.0 seconds.
Colour Judgement Display (OK/NG).
RS232C and USB output for easy connection to PC or printer #EPP16M3 (cables sold separately).
Uses AC 100 to 240V, 50/60Hz (#BA-6 AC adapter included).
CE markings applied for use in the EU.

Scope of Supply

Digital torque wrench tester with manual loader DOTE4-G
AC 100-240V adaptor #BA-6
Traceable Calibration Certificate (JCSS, ILAC MRA)
Operating manual (engl.)

Options / Accs / Spares

Alternatively available with Motor Drive Loader: series DOTE4-G-MD.
Motor Drive Retrofit Kit #MD2 available for DOTE4-G to upgrade standard model to motor drive version.
Thermal line dot printer #EPP16M3 for documenting the measurement data.
Calibration Kits #DOTCL-[X] to check and adjust the accuracy of the tester on a periodic basis.

DOTE4-G

Model	Item No.	Torque Range [N·m]	Graduation	Max. Wrench Length [mm]	Sq Drv [inch]	Weight [kg]

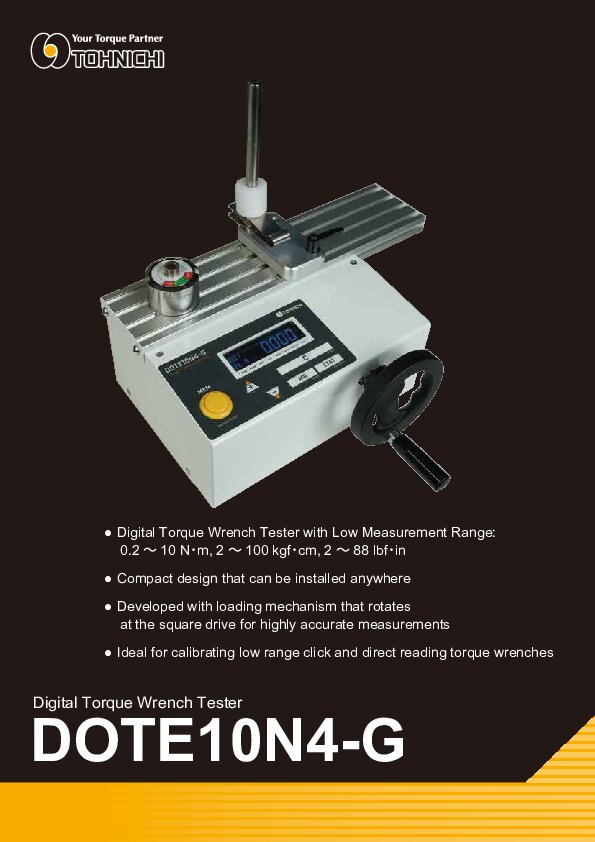

DOTE10N4-G	NEW	0.2 - 10	0.001	255	1/4	7
DOTE20N4-G	T252020	2 - 20	0.002	410	3/8	12
DOTE50N4-G	T252021	5 - 50	0.005	410	3/8	12
DOTE100N4-G	T252022	10 - 100	0.01	410	1/2	12
DOTE200N4-G	T252023	20 - 200	0.02	660	1/2	13
DOTE500N4-G	T252024	50 - 500	0.05	1100	3/4	47
DOTE1000N4-G	T252025	100 - 1000	0.1	1650	1	49

* Data Receiver software is a data input tool for Excel® data management. It can be downloaded for free. Note: Excel® is a registered trademark of the Microsoft Corporation.

All specifications without guarantee, errors and omissions excepted.
