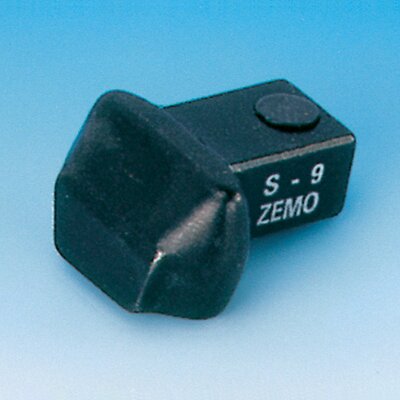

S9/S14 Tooling Adaptor

Welding adaptor with 'DIN' rectangle connector 9×12 mm resp. 14×18 mm. Ideal, if you like to manufacture a customized tool to be used with a series TC torque wrench.

Because of the individual configuration of these special headsit is hardly possible to maintain uniform centre line. When changing heads with different centre line, the torque must be individuallyadjusted in each case!

Further we recommend that exactly the intended head and keycombination are used, if you pre-set the torque of the clickerwrench on a tester.

Features

• Rectangle insert 9×12 mm rsp. 14×18 mm
• Secured by spring-loaded lock pin
• Forged alloy steel

Order Codes

• R716200 = S9-TA
• R716201 = S14-TA
