S9/S14 Ratcheting Tube Wrench Head

Centre Line: miscellaneous

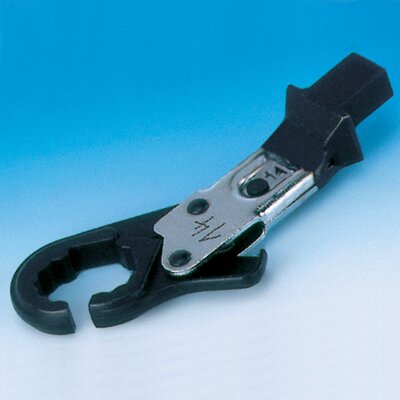

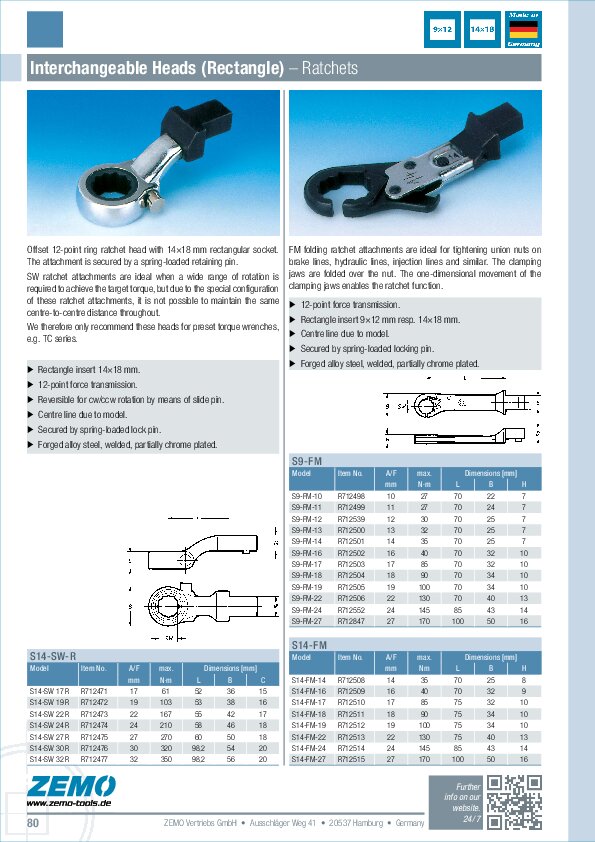

Interchangeable ratcheting tube wrench head with 'DIN' rectangle connector 9×12 mm resp. 14×18 mm. The head is secured by a spring-loaded lock pin. These ratchets are ideal for tightening of cap nuts on brake pipes, oil pressure lines or control lines etc. Its clamping jaws are folded over the nut. The one-dimensional moveability of the jaws enables ratchet function.



Interchangeable heads with the same centre line may be interchanged among themselves arbitrarily, without needing the torque wrench to be adjusted again. Vice versa, when interchanging heads with differing centre lines, the torque wrench must be individually adjusted in each case!



Features



  • Rectangle insert 9×12 mm resp. 14×18 mm.
  • 12-point force transmission.
  • Secured by spring-oaded lock pin.
  • Centre line due to model.
  • Forged alloy steel, partially chrome plated.

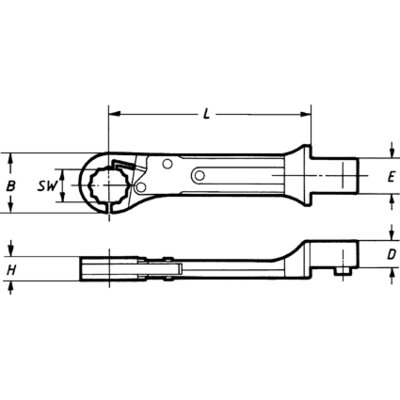

S9-FM
Model Item No. A/F [mm] Max Torque [N·m] Centre Line [mm] Insert [mm]
S9-199FM-10 R 712498 10 27 70 9×12
S9-199FM-11 R 712499 11 27 70 9×12
S9-199FM-12 R 712539 12 30 70 9×12
S9-199FM-13 R 712500 13 32 70 9×12
S9-199FM-14 R 712501 14 35 70 9×12
S9-199FM-16 R 712502 16 40 70 9×12
S9-199FM-17 R 712503 17 85 70 9×12
S9-199FM-18 R 712504 18 90 70 9×12
S9-199FM-19 R 712505 19 100 70 9×12
S9-199FM-22 R 712506 22 130 70 9×12
S9-199FM-24 R 712552 24 170 100 9×12
S14-FM
Model Item No. A/F [mm] Max Torque [N·m] Centre Line [mm] Insert [mm]
S14-199FM-14 R 712508 14 35 70 14×18
S14-199FM-16 R 712509 16 40 70 14×18
S14-199FM-17 R 712510 17 85 75 14×18
S14-199FM-18 R 712511 18 90 75 14×18
S14-199FM-19 R 712512 19 100 75 14×18
S14-199FM-22 R 712513 22 130 75 14×18
S14-199FM-24 R 712514 24 145 85 14×18
S14-199FM-27 R 712515 27 170 100 14×18

All specifications without guarantee, errors and omissions excepted.
