S14 Ring Ratchet Head (12P)

Centre Line: miscellaneous

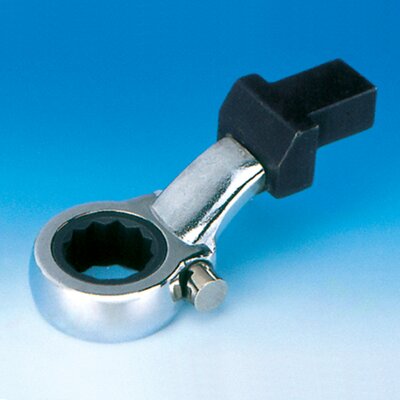

Interchangeable offset ring ratchet head with 12-point force transmission and 'DIN' rectangle connector 14×18 mm. The head is secured by a spring-loaded lock pin. Ideal for tightening of sequential arranged bolts or nuts. The load capacity is dependent on the width A/F and may be less than the capacity of the used clicker wrench.



Because of the individual configuration of these special heads it is hardly possible to maintain a consistent centre line. When interchanging heads with different centre line, the torque wrench must be individually adjusted in each case! Further we recommend that exactly the intended head and wrench combination is used, if you pre-set the torque of the clicker wrench on a tester.



Features



  • Rectangle insert 14×18 mm.
  • 12-point force transmission.
  • Secured by spring-loaded lock pin.
  • R/L reversible via slide pin.
  • Centre line due to model.
  • Forged alloy steel, partially chrome plated.
S14-SWR

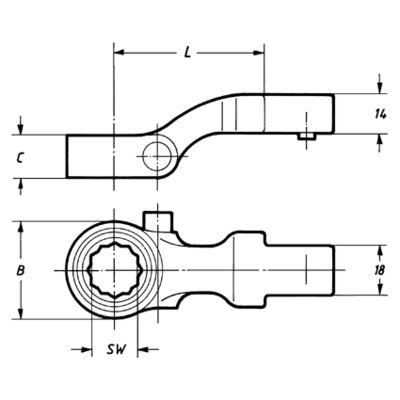

Model Item No. A/F [mm] Max Torque [N·m] Centre Line [mm] Insert [mm]
S14-SW-17R R 712471 17 61 52 14×18
S14-SW-19R R 712472 19 103 53 14×18
S14-SW-22R R 712473 22 167 55 14×18
S14-SW-24R R 712474 24 210 58 14×18
S14-SW-27R R 712475 27 270 60 14×18
S14-SW-30R R 712476 30 320 98.2 14×18
S14-SW-32R R 712477 32 350 98.2 14×18

All specifications without guarantee, errors and omissions excepted.
