Industrial Tools
Torque Systems

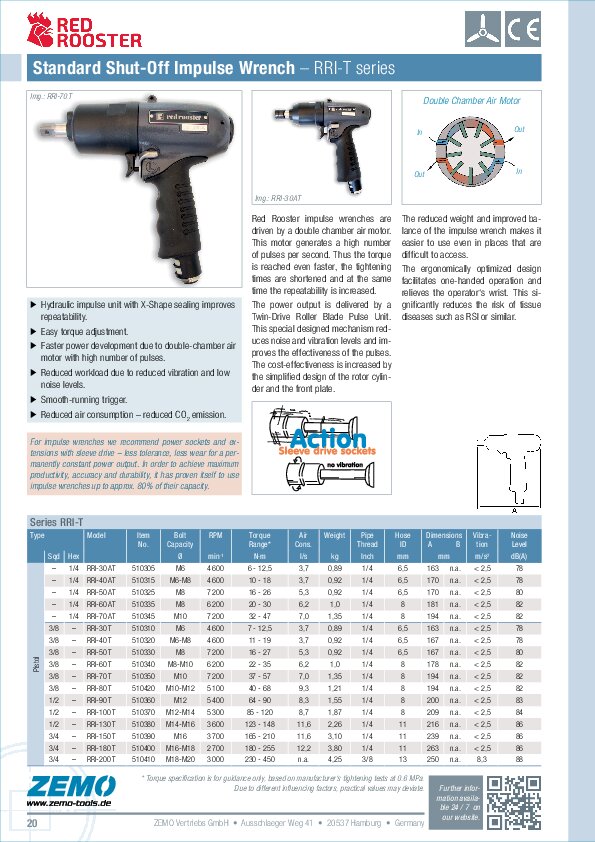

Red Rooster RRI-T Shut-Off Impulse Wrench

Torque Range 10 / 20 / 30 / 50 / 90 / 120 / 150 / 200 / 250 / 450 Nm

Standard Shut-Off Impulse Tool



Red Rooster impulse wrenches are driven by a double chamber air motor. This motor generates a high number of pulses per second. Thus the torque is reached even faster, the tightening times are shortened and at the same time the repeatability is increased.



The power output is delivered by a Twin-Drive Roller Blade Pulse Unit. This special designed mechanism reduces noise and vibration levels and improves the effectiveness of the pulses. The cost-effectiveness is increased by the simplified design of the rotor cylinder and the front plate.



The reduced weight and improved balance of the impulse wrench makes it easier to use even in places that are difficult to access. The ergonomically optimized design facilitates one-handed operation and relieves the operator‘s wrist. This significantly reduces the risk of tissue diseases such as RSI or similar.



Key Features



  • Hydraulic impulse unit with X-Shape sealing improves repeatability.
  • Easy torque adjustment.
  • Faster power development due to double-chamber air motor with high number of pulses.
  • Reduced workload due to reduced vibration and low noise levels.
  • Smooth-running trigger.
  • Reduced air consumption – reduced CO2 emission.



Scope of Supply



  • Impulse Wrench
  • Adjusting Key
  • Operating Instructions
RRI-T series
Model Item No. SqDrv [inch] Torque Range [N·m] Bolt Cap. Weight [kg]
RRI-30T 510310 3/8 7 - 12.5 M6 0.89
RRI-40T 510320 3/8 11 - 19 M6 - M8 0.92
RRI-50T 510330 3/8 16 - 27 M8 0.92
RRI-60T 510340 3/8 22 - 35 M8 - M10 1.0
RRI-70T 510350 3/8 37 - 57 M10 1.35
RRI-80T NEU / NEW 3/8 40 - 68 M10 - M12 1.21
RRI-90T 510360 1/2 64 - 90 M12 1.55
RRI-100T 510370 1/2 85 - 120 M12 - M14 1.87
RRI-130T 510380 1/2 123 - 148 M14 - M16 2.26
RRI-150T 510390 3/4 165 - 210 M16 3.1
RRI-180T 510400 3/4 180 - 255 M16 - M18 3.8
RRI-200T 510410 3/4 230 - 450 M18 - M20 4.25
RRI-(A)T series
Model Item No. HxDrv [inch] Torque Range [N·m] Bolt Cap. Weight [kg]
RRI-30AT 510305 1/4 6 - 12.5 M6 0.89
RRI-40AT 510315 1/4 10 - 18 M6-M8 0.92
RRI-50AT 510325 1/4 16 - 26 M8 0.92
RRI-60AT 510335 1/4 20 - 30 M8 1.00
RRI-70AT 510345 1/4 32 - 47 M10 1.35

All specifications without guarantee, errors and omissions excepted.
