Red Rooster RRI Impulse Wrench

Torque Range 10 / 20 / 30 / 40 / 60 / 70 / 90 / 120 / 150 / 200 / 250 / 450 Nm

Standard Impulse Tool with Double Chamber Air Motor

Red Rooster impulse wrenches are driven by a double chamber air motor. This motor generates a high number of pulses per second. Thus the torque is reached even faster, the tightening times are shortened and at the same time the repeatability is increased.

The power output is delivered by a Twin-Drive Roller Blade Pulse Unit. This special designed mechanism reduces noise and vibration levels and improves the effectiveness of the pulses. The cost-effectiveness is increased by the simplified design of the rotor cylinder and the front plate.

The reduced weight and improved balance of the impulse wrench makes it easier to use even in places that are difficult to access. The ergonomically optimized design facilitates one-handed operation and relieves the operator‘s wrist. This significantly reduces the risk of tissue diseases such as RSI or similar.

Features

Hydraulic impulse unit with X-Shape sealing improves repeatability.
Easy torque adjustment.
Faster power development due to double-chamber air motor with high number of pulses.
Reduced workload due to reduced vibration and low noise levels.
Smooth-running trigger.
Reduced air consumption – reduced CO2 emission.

Scope of Supply

Impulse Wrench
Adjusting Key
Operating Instructions

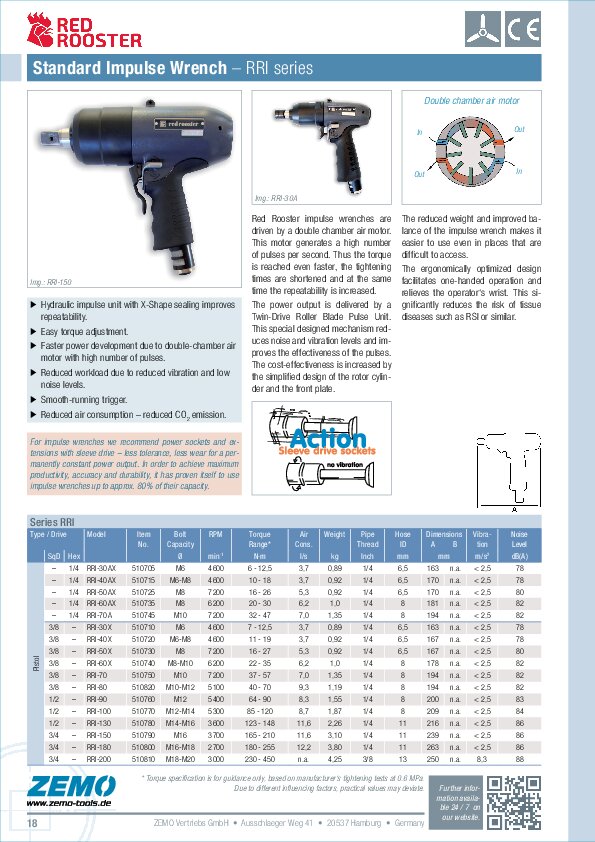

Series RRI (pistol)

Model	Item No.	HxDrv [inch]	SqDrv [inch]	Torque Range [N·m]	Air Cons. [l/s]	Weight [kg]
RRI-30AX	510705	1/4	–	6 - 12.5	3.7	0.89
RRI-30X	510710	–	3/8	7 - 12.5	3.7	0.89
RRI-40AX	510715	1/4	–	10 - 18	3.7	0.92
RRI-40X	510720	–	3/8	11 - 19	3.7	0.92
RRI-50AX	510725	1/4	–	16 - 26	5.3	0.92
RRI-50X	510730	–	3/8	16 - 27	5.3	0.92
RRI-60AX	510735	1/4	–	20 - 30	6.2	1.0
RRI-60X	510740	–	3/8	22 - 35	6.2	1.0
RRI-70A	510745	1/4	–	32 - 47	7.0	1.35
RRI-70	510750	–	3/8	37 - 57	7.0	1.35
RRI-80	NEU / NEW	–	3/8	40 - 70	9.3	1.19
RRI-90	510760	–	1/2	64 - 90	8.3	1.55
RRI-100	510770	–	1/2	85 - 120	8.7	1.87
RRI-130	510780	–	1/2	123 - 148	11.6	2.26
RRI-150	510790	–	3/4	165 - 210	11.6	3.1
RRI-180	510800	–	3/4	180 - 255	12.2	3.8
RRI-200	510810	–	3/4	230 - 450	n.a.	4.25

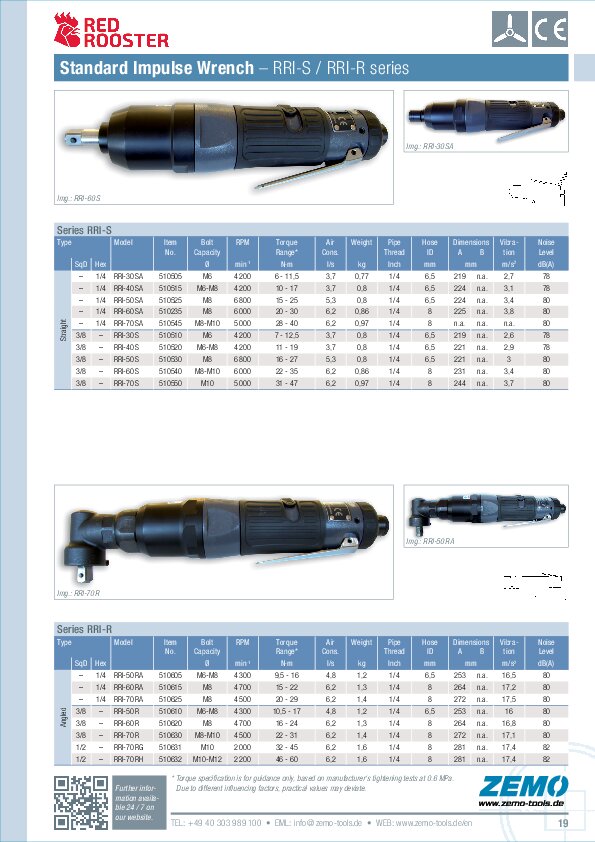

Series RRI-S (straight)

Model	Item No.	HxDrv [inch]	SqDrv [inch]	Torque Range [N·m]	Air Cons. [l/s]	Weight [kg]
RRI-30 SA	510505	1/4	–	6 - 11.5	3.7	0.77
RRI-30 S	510510	–	3/8	7 - 12.5	3.7	0.80
RRI-40 SA	510515	1/4	–	10 - 17	3.7	0.80
RRI-40 S	510520	–	3/8	11 - 19	3.7	0.80
RRI-50 SA	510525	1/4	–	15 - 25	5.3	0.80
RRI-50 S	510530	–	3/8	16 - 27	5.3	0.80
RRI-60 SA	510535	1/4	–	20 - 30	6.2	0.86
RRI-60 S	510540	–	3/8	22 - 35	6.2	0.86
RRI-70 SA	510545	1/4	–	28 - 40	6.2	0.97
RRI-70 S	510550	–	3/8	31 - 47	6.2	0.97

Series RRI-R (angled)

Model	Item No.	HxDrv [inch]	SqDrv [inch]	Torque Range [N·m]	Air Cons. [l/s]	Weight [kg]
RRI-50 RA	510605	1/4	–	9.5 - 16	4.8	1.2
RRI-50 R	510610	–	3/8	11 - 17	4.8	1.2
RRI-60 RA	510615	1/4	–	15 - 22	6.2	1.3
RRI-60 R	510620	–	3/8	16 - 24	6.2	1.3
RRI-70 RA	510625	1/4	–	20 - 29	6.2	1.4
RRI-70 R	510630	–	3/8	22 - 31	6.2	1.4
RRI-70 RG	510631	–	1/2	32 - 45	6.2	1.6
RRI-70 RH	510632	–	1/2	46 - 60	6.2	1.6

All specifications without guarantee, errors and omissions excepted.
