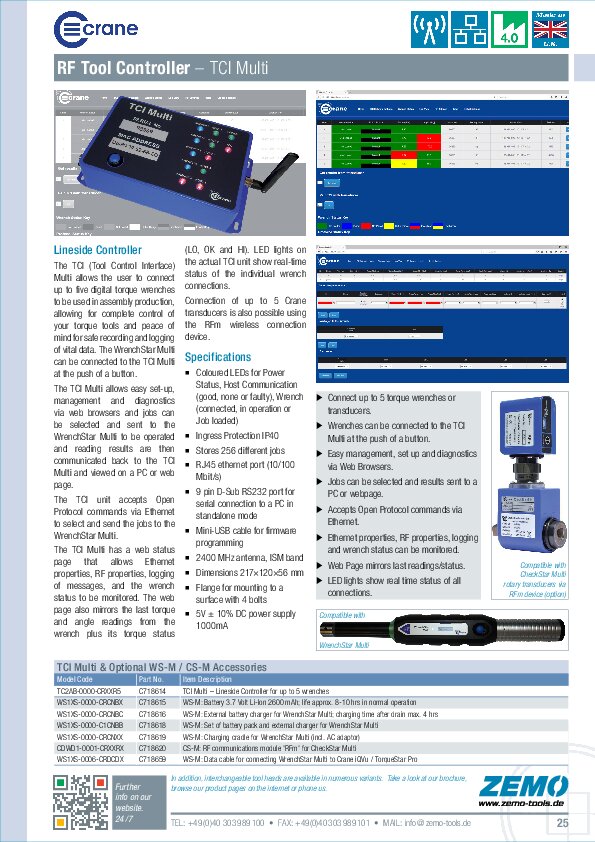

Crane TCI Multi Tool Control Interface

Tool Control Interface for up to 5 wireless torque wrenches / transducers

The TCI Multi allows the user to connect up to five Wrenches to be used in assembly production, allowing for complete control of your torque tools and peace of mind for safe recording and logging of vital data. The WrenchStar Multi can be connected to the TCI Multi at the push of a button.

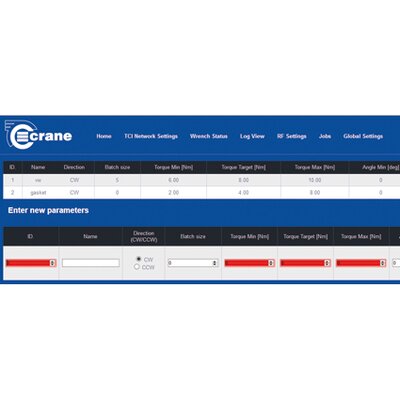

The TCI Multi allows easy management, set up and diagnostics of itself via Web Browsers. The TCI Multi can be used stand alone and jobs can be selected and results sent to a PC or Web Page. The TCI Multi accepts Open Protocol commands via Ethernet to select a Job to use with the WrenchStar Multi.

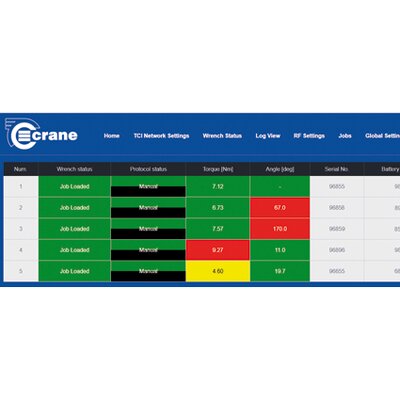

The TCI Multi has Web Status Page that allows Ethernet properties, RF properties, logging of messages, and Wrench status to be monitored. Web Page mirrors last Torque and Angle reading from Wrench plus its Torque status (LO, OK and HI). LED lights show real time status of the Wrench connection on the unit.

Connection to Crane rotary torque transducers is also possible using the RFm wireless connection device.

Key Features

• Connect up to 5 torque wrenches / transducers
• Wrenches can be connected to the TCI Multi at the push of a button
• Easy management, set up and diagnostics via Web Browsers
• Jobs can be selected and results sent to a PC or webpage
• Accepts Open Protocol commands via Ethernet
• Ethernet properties, RF properties, logging and wrench status can be monitored
• Web Page mirrors last Torque and Angle reading from Wrench plus its Torque status
• LED lights show real time status of all connections
• Compatible with Crane transducers via the Rfm wireless connection device

Order Code

• TC2AB-0000-CRXXR5 = TCI Multi

Scope of Supply

• TCI Multi
• User Manual
• Quick Start Guide
• DC 5V PSU

Related Products

• WrenchStar Multi
• WrenchStar Multi-e
• CheckStar Multi (via RFm)
