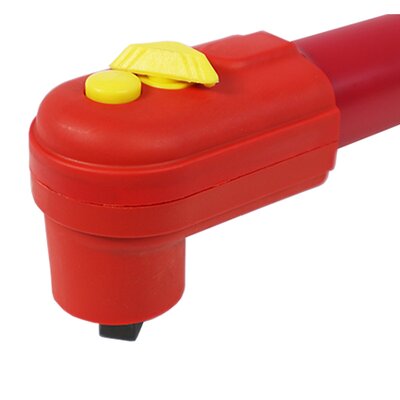

WrenchStar Multi-e head

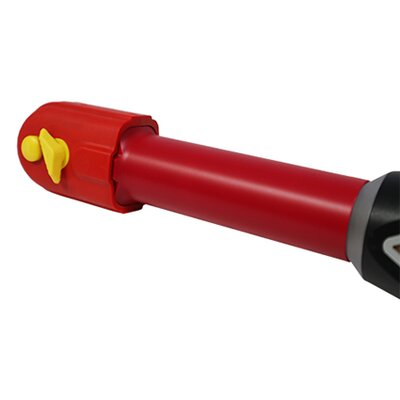

WrenchStar Multi-e shaft

Video

Downloads

* pending approval

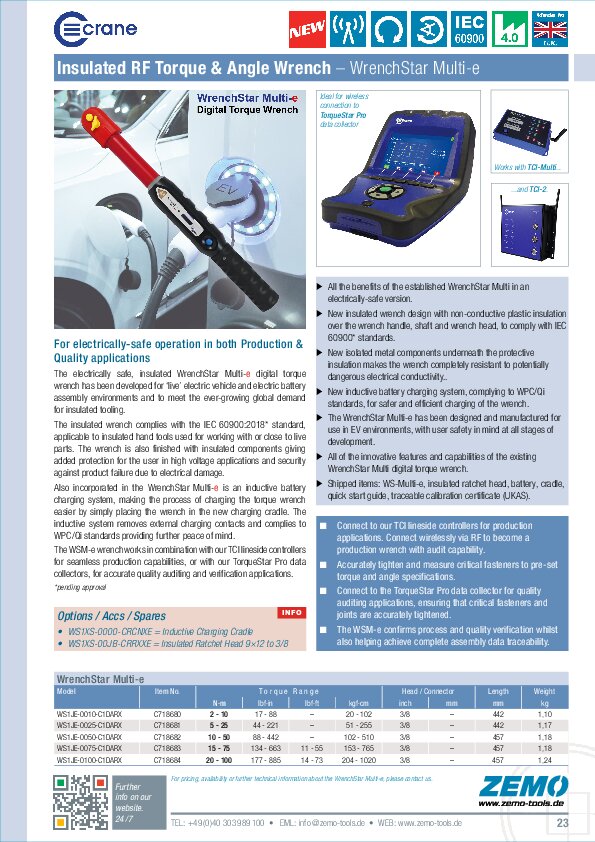

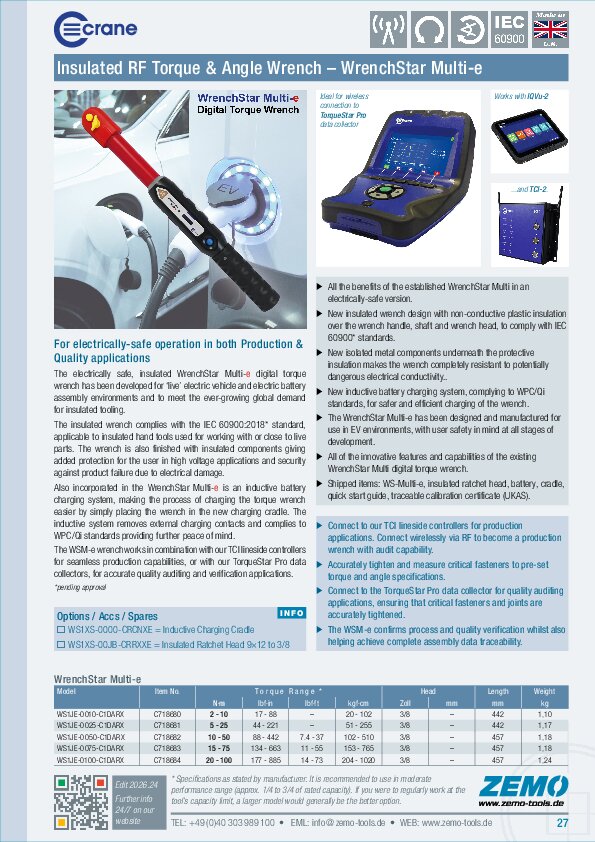

Crane WrenchStar Multi-e Torque & Angle Wrench

Capacity 10 / 25 / 50 / 75 / 100 Nm

The electrically safe, insulated WrenchStar Multi-e digital torque wrench has been developed for ‘live’ electric vehicle and electric battery assembly environments and to meet the ever-growing global demand for insulated tooling.

The insulated wrench complies with the IEC 60900:2018* standard, applicable to insulated hand tools used for working with or close to live parts. The wrench is also finished with insulated components giving added protection for the user in high voltage applications and security against product failure due to electrical damage.

Also incorporated in the WrenchStar Multi-e is an inductive battery charging system, making the process of charging the torque wrench easier by simply placing the wrench in the new charging cradle. The inductive system removes external charging contacts and complies to WPC/Qi standards providing further peace of mind.

The WSM-e wrench works in combination with our TCI lineside controllers for seamless production capabilities, or with the IQVu-2 or TorqueStar Pro data collector, for accurate quality auditing and verification applications.

Key Features

All the benefits of the established WrenchStar Multi in an electrically-safe version.
Insulated wrench design with non-conductive insulation for the handle, shaft and wrench head.
Isolated components underneath the protective insulation, making the wrench resistant to electrical conductivity.
Inductive battery charging system for easier charging of the wrench.
Complies to international IEC 60900* standard for use in ‘live’ environments.
Currently available in 10, 25, 50, 75 and 100 Nm versions.

Technical Specification

Static Accuracy: ± 0.25% FSD
Reading Storage: 200 readings in offline mode
Sampling: every 60 micro seconds
Physical Measurement: Bi-directional torque and angle
Measurement Modes: Peak, MoveOn and Yield
Angle Measurement: sample every 1000 micro seconds
Frequency Response: 75 Hz to 4608 Hz
Battery: rechargeable 3.7V Li Ion, 2600 mAh
Display: OLED 32x128 pixels white
Communication: 2.4 GHz RF
Ingress Protection: IP40

Scope of Supply

WrenchStar Multi-e
Insulated Ratchet Adapter Head
Battery & Cradle

Options / Accs / Spares

WS1XS-0000-CRCNXE = Additional Inductive Charging Cradle
WS1XS-00JB-CRRXXE = Additional Insulated Ratchet Head 9x12 to 3/8

Related Products

IQVu-2
TCI-Multi
TCI-2
TorqueStar Pro

WrenchStar Multi-e

Model	Item No.	Torque Range [N·m]	SqD [inch]	Length [mm]	Weight [kg]
WS1JE-0010-C1DARX	C718680	2 - 10	3/8	n.a.	n.a.
WS1JE-0025-C1DARX	C718681	5 - 25	3/8	n.a.	n.a.
WS1JE-0050-C1DARX	C718682	10 - 50	3/8	n.a.	n.a.
WS1JE-0075-C1DARX	C718683	15 - 75	3/8	n.a.	n.a.
WS1JE-0100-C1DARX	C718684	20 - 100	3/8	n.a.	n.a.

The requirements and verification procederes of the EN ISO 6789 are valid for a measuring range from 20% to 100% of the rated capacity (maximum value). Usage in the medium range (approx. 1/3 to 4/5 of rated capacity) is recommended. If you would regularly work close to the load capacity limit, a larger tool may be ergonomically more advantageous.

All specifications without guarantee, errors and omissions excepted.
