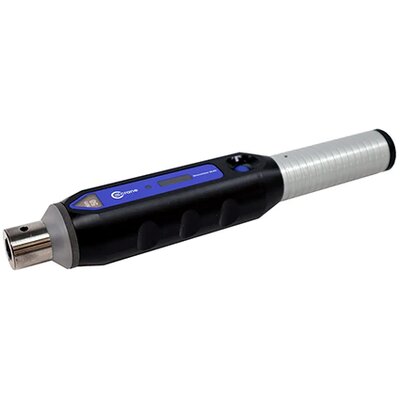

NEW: WrenchStar Multi XS (short shaft)

360° light ring showing status (green = OK)

WrenchStar Multi w TCI Multi

WrenchStar Multi with TCI-2

WrenchStar Multi w TorqueStar

Video

Downloads

Crane WrenchStar Multi Torque & Angle Wrench

Capacity 10 / 25 / 75 / 120 / 180 / 250 / 340 / 500 / 750 / 1000 / 1500 Nm

Wireless Production Wrench

The WrenchStar Multi digital torque wrench is perfect for users who require torque and angle data digitally recording and a reliable, versatile and robust torque wrench.

The wrench has a clear OLED display screen to view the current task information, combined with a 360° light ring that is completely visible at any angle plus a vibration alert to indicate results.

The WrenchStar Multi works in combination with our TorqueStar Plus, TorqueStar Pro and IQVu-2 data collectors or our TCI lineside controllers wirelessly via RF or via a cable connection (IQVu-2, TorqueStar Plus or Pro only). Together, they deliver a perfect solution to accurately measure and tighten critical fasteners to your pre-set torque specifications.

For versatility, if the wrench goes out of range of the paired controller, it continues to collect data with storage for up to 200 readings for offline work. Once back in range, the WrenchStar Multi then automatically connects and communicates the critical data.

Key Features

Available in ranges from 10 Nm up to 1500 Nm
360° light ring for colour status of the readings
Vibration alert for additional feedback
Quick change battery for extended shift use – Chargeable internally & externally
Interchangeable wrench heads for multiple job use
Auto-ID heads for automatic length compensation
Small, clear OLED display screen
Records up to 200 readings offline / out of range
FOD (Foreign Object Debris) compliant for use in the Aerospace & Automotive industries
Point-of-load ‘insensitive’ – no incorrect hand position; torque can be applied from any position on the wrench

Scope of Supply

WrenchStar Multi (without adaptor head, without battery)
Quick Start Quide
Operating Manual
Traceable Calibration Certificate (UKAS)

Options / Accs / Spares

Available as a package with battery & cradle; alternatively as a package with data cable.
Spare battery 3.7 V Li-Ion
Desktop charger
Battery pack & charger
Cradle & charger/PSU
Data cable for connection to IQVu, TCI or TorqueStar
Auto-ID adaptors

Related Products

IQVu-2
TCI-Multi
TCI-2
TorqueStar Plus
TorqueStar Pro

WrenchStar Multi – Rectangle ( S9 / S14 )

Model	Item No. *)	Torque Range [N·m]	Torque Range [lbf·in]	Torque Range [lbf·ft]	Head Insert [mm]	Length [mm]	Weight [kg]
WS1JX-0010-C1DARX	C718660-	2 - 10	17 - 88	–	9×12	330	0.72
WS1JX-0025-C1DARX	C718662-	5 - 25	44 - 221	–	9×12	330	0.72
WS1JX-0075-C1DARX	C718664-	15 - 75	133 - 663	–	9×12	395	0.91
WS1JX-0120-C1DARX	C718665-	24 - 120	212 - 1062	18 - 88	14×18	395	0.97
WS1KX-0180-C1DARX	C718666-	36 - 180	318 - 1593	27 - 132	14×18	613	1.47
WS1KX-0250-C1DARX	C718667-	50 - 250	443 - 2212	37 - 184	14×18	640	1.71
WS1KX-0340-C1DARX	C718668-	68 - 340	602 - 3009	50 - 250	14×18	788	1.93
WS1KX-0500-C1DARX	C718669-	100 - 500	885 - 4425	74 - 368	14×18	887	3.17

WrenchStar Multi – Kurzschaft ( S9 )

NEW	C718676-	5 - 25	44 - 221	51 - 255	9×12	298	0.72
NEW	C718677-	10 - 50	88 - 442	102 - 510	9×12	298	0.72

WrenchStar Multi – Fixed Square Drive Head

Model	Item No. *)	Torque Range [N·m]	Torque Range [lbf·in]	Torque Range [lbf·ft]	Head SqD [inch]	Length [mm]	Weight [mm]
WS1AX-0010-C1FARX	C718661-	2 - 10	17 - 88	–	1/4	380	0.83
WS1AX-0025-C1FARX	C718663-	5 - 25	44 - 221	–	1/4	380	0.90
WS1DX-0750-C1FARX	C718670-	150 - 750	–	111 - 553	3/4	1178	5.28
WS1FX-1000-C1FARX	C718671-	200 - 1000	–	148 - 737	1	1433	8.53
WS1FX-1500-C1FARX	C718672-	300 - 1500	–	221 - 1106	1	1921	10.4

*) depending on the variant, add a "BC" (battery & cradle) or a "K" (cable) to the item number.

The table shows the torque ranges specified by manufacturer. Usage in the medium range (approx. 1/3 to 4/5 of rated capacity) is recommended. If you would regularly work close to the max capacity limit, a larger tool might be more recommendable to prevent over-torqueing.
