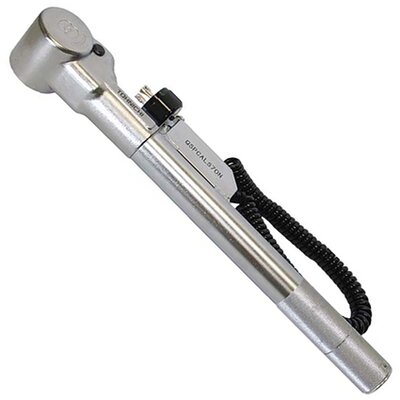

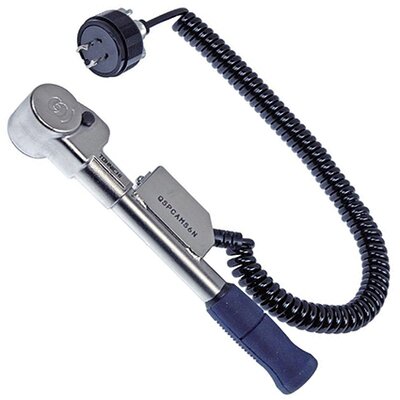

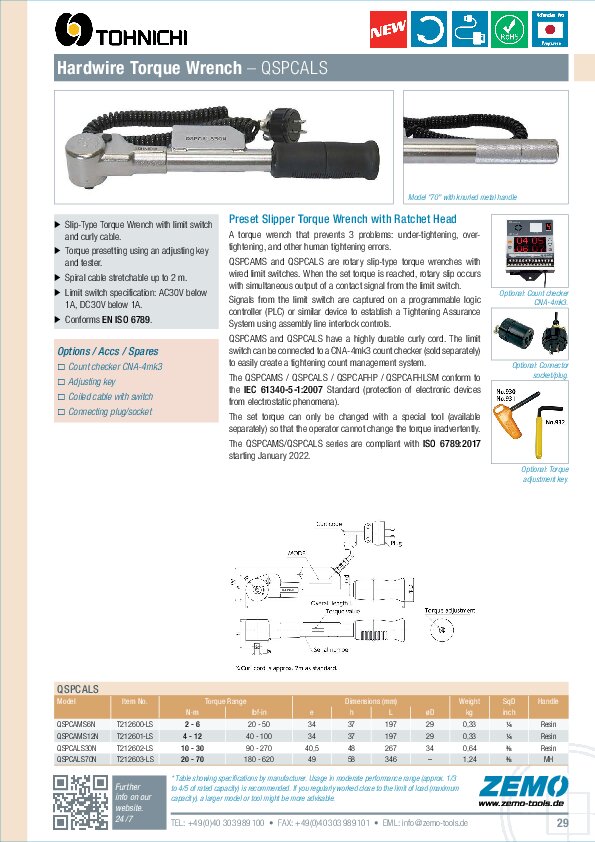

Tohnichi QSPCALS Slipper Torque Wrench

Rotary Slip-type Preset Pokayoke (Error-proofing) Torque Wrench

A preset torque wrench that prevents 3 problems: under-tightening, over-tightening, and other human tightening errors. QSPCAMS and QSPCALS are rotary slip-type torque wrenches with wired limit switch. When set torque is reached, rotary slip occurs with simultaneous output of a contact signal from the limit switch.

Signals from the limit switch are captured on a programmable logic controller (PLC) or similar device to establish a Tightening Assurance System using assembly line interlock controls. The limit switch can be connected to a CNA-4mk3 count checker (sold separately) to easily create a tightening count management system.

The set torque cannot be changed without using a special tool (sold separately), preventing the operator from changing torque by mistake. QSPCAMS and QSPCALS have a highly durable curly cord. Length of standard MS/LS curly cord (when extended) ~2m.

QSPCAMS/QSPCALS conform to the IEC 61340-5-1:2007 Standard (protection of electronic devices from electrostatic phenomena).

Features

• Accuracy acc. to EN ISO 6789 type II class C
  ≤ 10 Nm ± 6%
  > 10 Nm ± 4%
• 36 gear ratchet
• Rotary slip prevents over-torque
• Limit switch ratings: AC/DC 30V, below 1A
• Durable cable transmits contact signal

Scope of Supply

• Torque wrench w limit switch, curly cable & connector
• Operating manual

Options / Accs / Spares

• Torque setting ex works on request


• Adjusting tool
  #931 for QSPCA.6N - 12N
  #930 for QSPCA.30N
  #932 for QSPCA.70N


• LS connector
  #WF6215 = plug
  #WA5219K = socket
