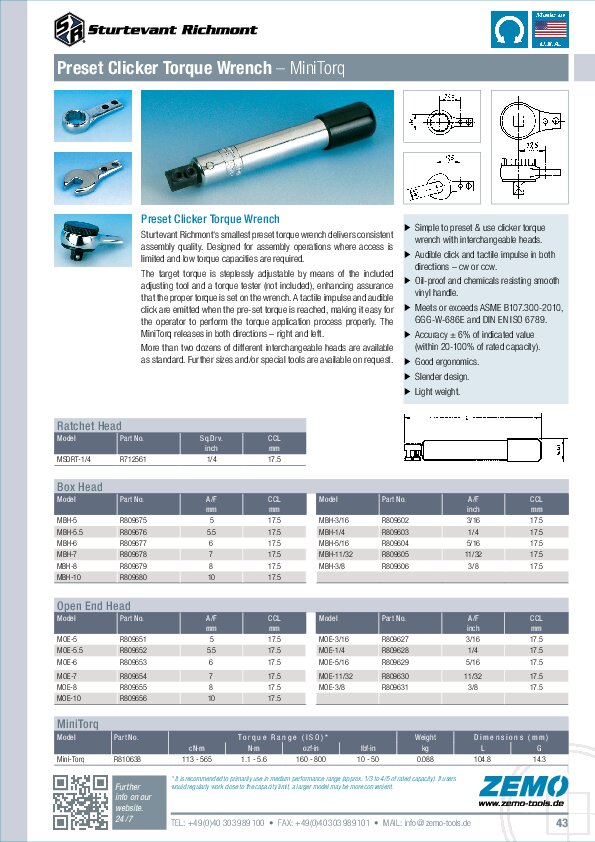

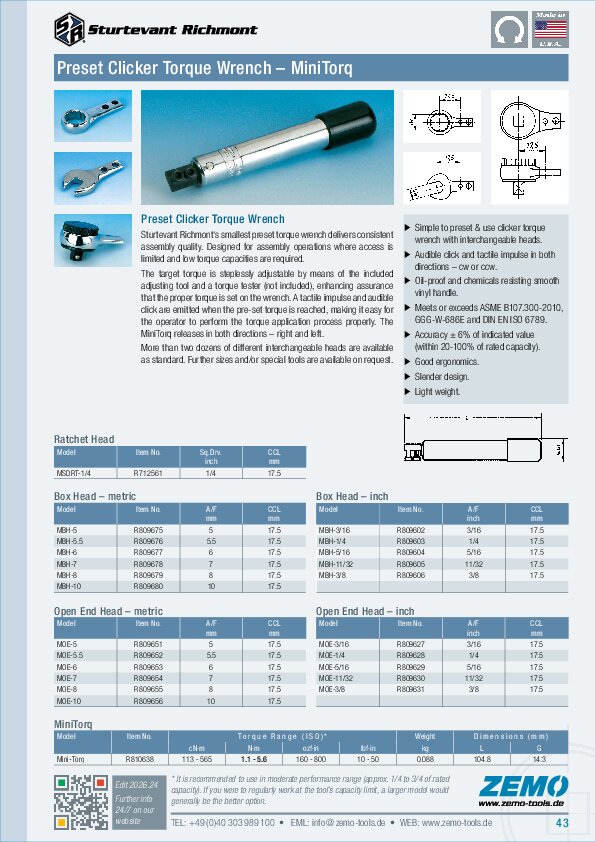

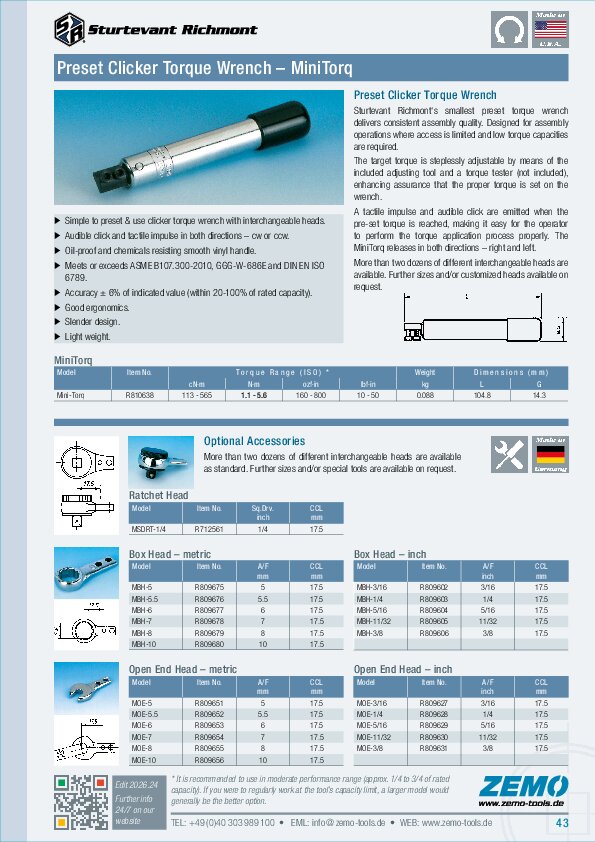

Sturtevant Richmont MINI Preset Torque Wrench

Capacity 50 lbf·in // 5.6 N·m

Small tool with a HUGE impact

What is old is new again! Back in the last century, more than 50 years ago, Sturtevant Richmont made the preset mini-torquer. It is no ordinary tool. Tiny for it's size, it has the heart of a much larger tool. Designed for assembly operations where access is limited and low torque capacities are required.

The target torque is easily adjustable by means of the included adjusting tool and a torque tester (not included), enhancing assurance that the proper torque is set on the wrench. A tactile impulse and audible click are emitted when the pre-set torque is reached, making it easy for the operator to perform the torque application process properly. The MiniTorq releases in both directions – right and left.

The slender design permits use in limited-access applications where larger tools simply will not work. Light weight and smooth vinyl handle provides good ergonomics. More than two dozens of different interchangeable heads are available as standard. Further sizes and/or special tools are available on request.

Key Features

Easy to calibrate and set torque value.
Bi-directional versatility – preset same value for both CW and CCW direction.
Meets or exceeds ASME B107.300-2010, GGG-W-686E and DIN EN ISO 6789.
Audible click and tactile impulse.
Oil-proof and chemicals resisting vinyl handle.
Lean design.
Light weight.

Scope of Supply

Torque wrench
Adjusting key
Operating manual

Options / Accs / Spares

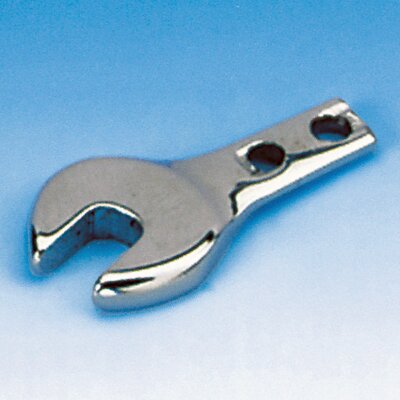

MOE = mini open end heads
MBH = mini box heads

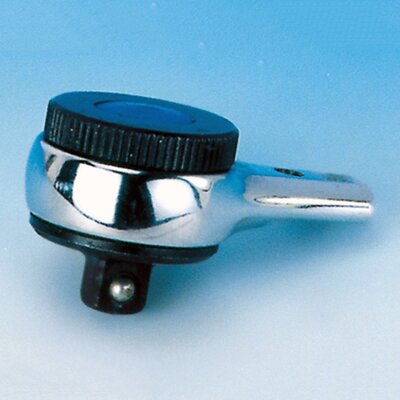

MSDRT = mini ratchet head

MiniTorq

Model	Item No.	Torque Range [cN·m]	Torque Range [N·m]	Torque Range [lbf·in]	Torque Range [ozf·in]	Length [mm]	Weight [kg]	ø [mm]
MINI-TORQ	R 810638	113 - 565	1.1 - 5.6	10 - 50	160 - 800	105	0.09	14.3

Table showing specifications by the manufacturer. It is recommended to primarily use in medium performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (maximum capacity), a larger model or tool might be more advisable.

All technical data without guarantee, errors and omissions excepted.
