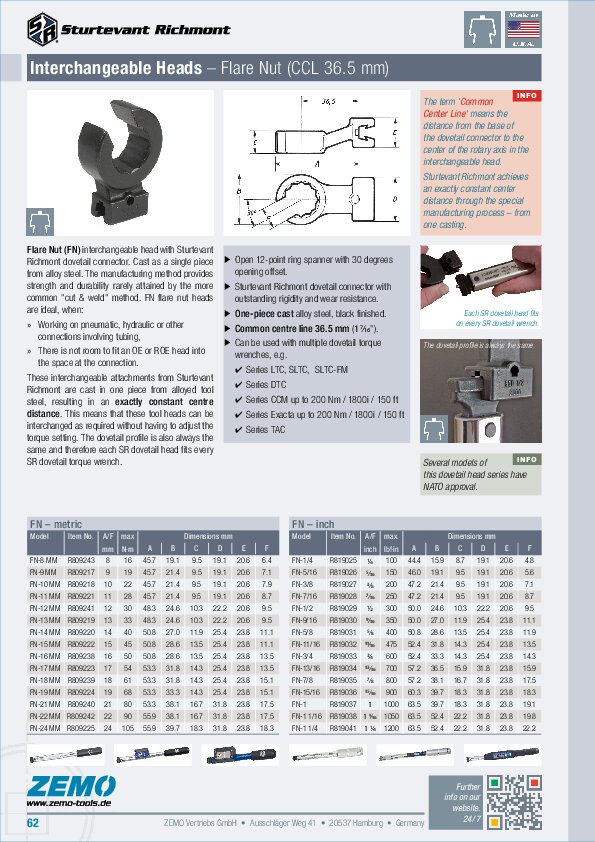

Sturtevant Richmont FN dovetail head

Common Centre Line 1 7/16 inch (~36.5 mm)

Interchangeable Flare Nut Head for Dovetail Torque Wrenches

Flare nut interchangeable head with Sturtevant Richmont dovetail connector. Cast as a single piece from alloy steel. The manufacturing method provides strength and durability rarely attained by the more common "cut and weld" method. FN flare nut heads are ideal, when:

Working on pneumatic, hydraulic or other connections involving tubing,
There is not room to fit an OE or ROE head into the space at the connection.

The unique SR dovetail design used to join head and wrench provides an exceptionally strong connection and allows complete interchangeability. The SR system contributes to both operational flexibility and enhancing your return on investment!

To achieve constant torque values when changing heads, exact lever length must be maintained. Virtually all SR heads share a precise distance form end of wrench to center of fastener. This is referred to as a "Common Center Line" and is very difficult to maintain using the cut and weld construction method.

Features

30 degrees opening offset
SR dovetail connector with outstanding rigidity and wear resistance
Common centre line 1 7/16 inch (~36.5 mm)
Cast Alloy Steel, black finished

FN (mm)

Model	Item No.	A/F [mm]	Max. Torque [N·m]	Max. Torque [lbf·in]	Centre Line [mm]
FN-8 MM	R 809243	8	16	145	36.5
FN-9 MM	R 809217	9	19	170	36.5
FN-10 MM	R 809218	10	22	195	36.5
FN-11 MM	R 809221	11	28	250	36.5
FN-12 MM *)	R 809241	12	30	265	36.5
FN-13 MM	R 809219	13	33	295	36.5
FN-14 MM	R 809220	14	40	355	36.5
FN-15 MM	R 809222	15	45	400	36.5
FN-16 MM	R 809238	16	50	445	36.5
FN-17 MM	R 809223	17	54	480	36.5
FN-18 MM	R 809239	18	61	540	36.5
FN-19 MM	R 809224	19	68	600	36.5
FN-21 MM	R 809240	21	80	710	36.5
FN-22 MM	R 809242	22	90	800	36.5
FN-24 MM	R 809225	24	105	930	36.5

FN (inch)

Model	Item No.	A/F [inch]	Max. Torque [lbf·in]	Max. Torque [N·m]	Centre Line [inch]
FN-1/4	R 819025	1/4	100	11	1 7/16
FN-5/16	R 819026	5/16	150	17	1 7/16
FN-3/8	R 819027	3/8	200	23	1 7/16
FN-7/16	R 819028	7/16	250	28	1 7/16
FN-1/2	R 819029	1/2	300	34	1 7/16
FN-9/16	R 819030	9/16	350	40	1 7/16
FN-5/8	R 819031	5/8	400	45	1 7/16
FN-11/16	R 819032	11/16	475	54	1 7/16
FN-3/4	R 819033	3/4	600	68	1 7/16
FN-13/16	R 819034	13/16	700	79	1 7/16
FN-7/8	R 819035	7/8	800	90	1 7/16
FN-15/16	R 819036	15/16	900	102	1 7/16
FN-1	R 819037	1	1000	113	1 7/16
FN-1.1/16	R 819038	1.1/16	1050	119	1 7/16
FN-1.1/4	R 819041	1.1/4	1200	135	1 7/16

*) 6 Pt Hex

All specifications without guarantee, errors and omissions excepted.
