S9 Shoulder Flare Nut Head

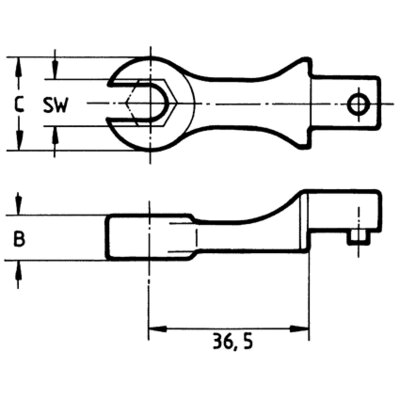

Centre Line 36.5 mm

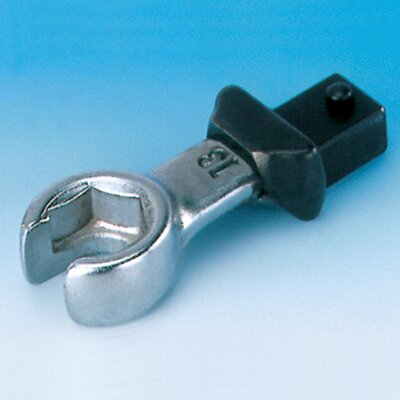

Special manufactured interchangeable flare nut head with shoulder and 'DIN' rectangle insert connector 9×12 mm. The head is secured by a spring-loaded lock pin. The load capacity is dependent on the width A/F and may be less than the capacity of the used torque wrench.



Interchangeable heads with the same centre line may be interchanged among themselves arbitrarily, without needing the torque wrench to be adjusted again. Vice versa, when interchanging heads with differing centre lines, the torque wrench must be individually adjusted in each case!



Features





  • 5-point force transmision.
  • Rectangle insert 9×12 mm.
  • Centre line 36.5 mm.
  • Forged alloy steel, partially chrome plated.
S9-SFN
Model Item No. A/F [mm] Max Torque [N·m] Centre Line [mm] Insert [mm]
S9-SFN-10 R 712960 10 19 36.5 9×12
S9-SFN-11 R 712961 11 20 36.5 9×12
S9-SFN-12 R 712962 12 22 36.5 9×12
S9-SFN-13 R 712963 13 25 36.5 9×12
S9-SFN-14 R 712964 14 30 36.5 9×12
S9-SFN-17 R 712965 17 35 36.5 9×12
S9-SFN-19 R 712966 19 40 36.5 9×12

All specifications without guarantee, errors and omissions excepted.
