Preset Break-Over Torque Wrench w Interchangeable Heads
The Mountz TBIH is a small torque wrench ideal for applications with limited space. Torque range suitable for micro, low, and medium torque applications.
Preset wrenches are ideal for fastening applications where operators repeatedly assemble parts at the same torque setting and ensure that the correct torque value is consistently applied to each fastener by reducing the risk of the operator tampering with settings.
The TBIH wrench breaks over once it achieves its preset torque setting, signaling the operator to stop applying torque to the fastener or bolt. The wrench improves the fastening process by reducing either over or under-tightening risk.
The flexible preset wrench can adapt to different fastening applications as it is compatible with varying head options like an open end, box end, flare end, hex key end, or a ratchet head.
Head interchangeability is intended for use during recalibration to allow reconfiguring tools for different applications. They are not intended to be interchanged as a normal part of a manufacturing process.
Safeguarding Against Fastening Failures
- Torque limiting wrench improves control of the tightening process and reduces the risk of over and under-tightening.
- The preset wrench ensures that the correct torque value is consistently applied to each fastener by reducing the risk of operator tampering with settings.
- The break-over mechanism deflects 90° on torque delivery, visually indicating torque is achieved.
- Interchangeable end fitting design – selectable head types and sizes.
Tool Benefits
- Torque ranges from 25 ozf·in to 50 lbf·in.
- Suitable for low to medium torque applications.
- Handle Length 5.5” (~140 mm) × Diameter 9/16” (~14.3 mm).
Error-Proofing
- Torque limiting wrench improves control of the tightening process, reducing the risk of over and under-tightening to deliver repeatability, traceability, and precision for tightening applications.
- A preset wrench ensures that the correct torque value is applied consistently to each fastener by reducing the risk of the operator tampering with settings. This tool has no external adjustment scale and is set using a torque analyzer.
Advanced Technology
- Unique interchangeable end fitting design – we offer selectable head types and sizes, including open end, box head, hex key, and ratchet heads.
- Mountz manufactures interchangeable heads with a common centerline, so the torque setting remains unchanged when changing head sizes.
Process Improvement
- The break-over mechanism provides a visual indicator of achieving torque setting, improving productivity. The tool only operates in a CW direction.

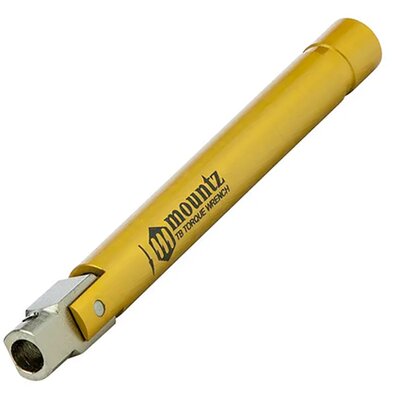

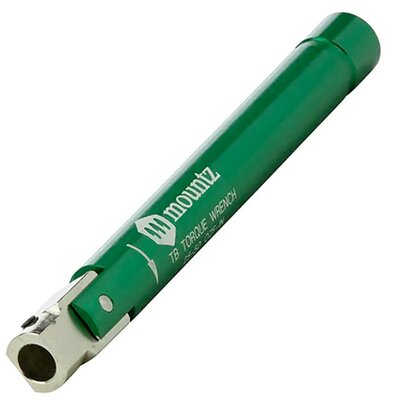

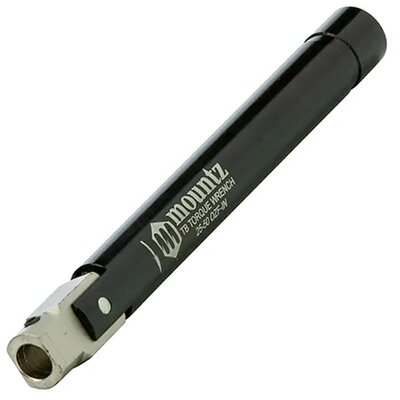

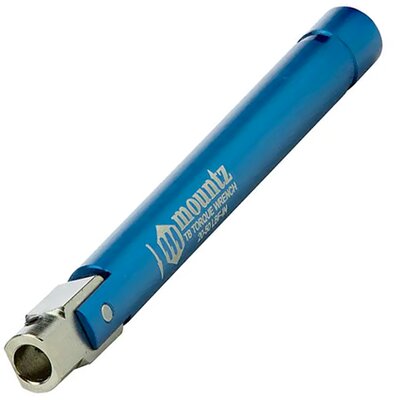

- Six different coloured aluminum handles allow for colour-coding of specific torque values in production areas.
