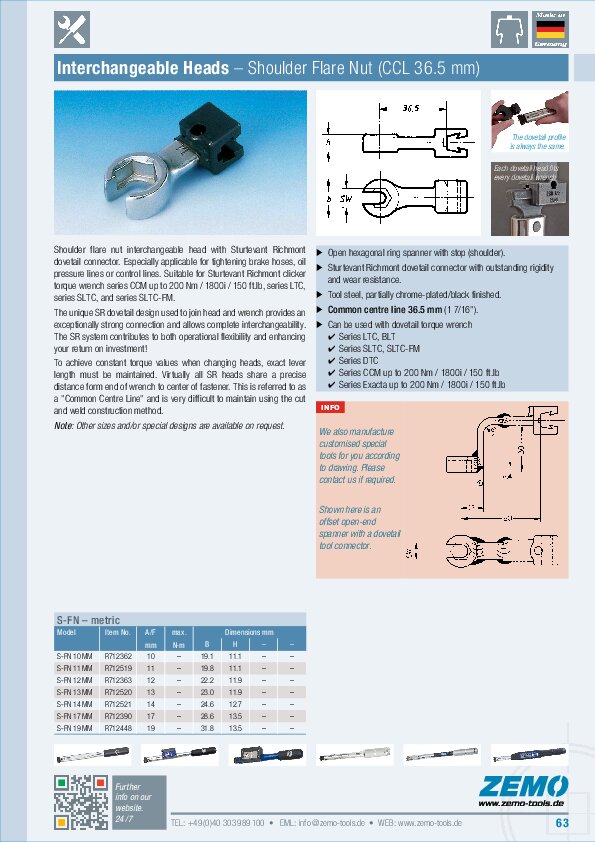

ZEMO Flare Nut with Shoulder dovetail head

Common Centre Line 36.5 mm (1 7/16 inch)

Interchageable Flare Nut Head for Dovetail Torque Wrenches

Shoulder flare nut interchangeable head with Sturtevant Richmont dovetail connector. Especially applicable for tightening brake hoses, oil pressure lines or control lines. Suitable for Sturtevant Richmont torque wrench series CCM, series LTC, series SLTC, and series SLTC-FM.

The unique SR dovetail design used to join head and wrench provides an exceptionally strong connection and allows complete interchangeability. The SR system contributes to both operational flexibility and enhancing your return on investment!

To achieve constant torque values when changing heads, exact lever length must be maintained. Virtually all SR heads share a precise distance form end of wrench to center of fastener. This is referred to as a "Common Center Line" and is very difficult to maintain using the cut and weld construction method.

Features

Five point force transmission
SR dovetail connector with outstanding rigidity and wear resistance
Common centre line 1 7/16 inch (~36.5 mm)
Body alloy steel, black finished, head partially chrome plated

S-FN

Model	Item No.	A/F [mm]	Max. Torque [N·m]	B [mm]	H [mm]	Centre Line [mm]
S-FN-10	R 712362	10	n.a.	19.1	11.1	36.5
S-FN-11	R 712519	11	n.a.	19.8	11.1	36.5
S-FN-12	R 712363	12	n.a.	22.2	11.9	36.5
S-FN-13	R 712520	13	n.a.	23.0	11.9	36.5
S-FN-14	R 712521	14	n.a.	24.6	12.7	36.5
S-FN-17	R 712390	17	n.a.	28.6	13.5	36.5
S-FN-19	R 712448	19	n.a.	31.8	13.5	36.5

All specifications without guarantee, errors and omissions excepted.
