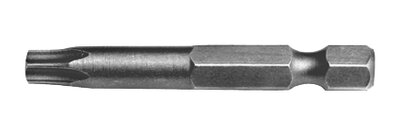

Torx® Bits w 1/4 hex drive E 6.3

Tip profile Torx® TX

1/4" hexagon drive DIN 3126 / ISO 1173 – E 6.3

Tough bits are ideal for hard applications where sudden increases in torque can lead to increased stresses in a bit. A hard screw case is when screwing into metal.

E 6.3 – Hexalobular TX – L50

Model	Item No.	TX	L [mm]	Ø [mm]	Pk
T6-E6.3-50	113210	6	50	3	10
T7-E6.3-50	113260	7	50	3	10
T8-E6.3-50	113213	8	50	3	10
T9-E6.3-90	113265	9	50	3	10
T10-E6.3-50	113216	10	50	3	10
T15-E6.3-50	113222	15	50	4	10
T20-E6.3-50	113228	20	50	4.5	10
T25-E6.3-50	113234	25	50	6	10
T27-E6.3-50	113240	27	50	6	10
T30-E6.3-50	113246	30	50	6	10
T40-E6.3-50	113252	40	50	6.3	10
T50-E6.3-50	113270	50	50	8	10
T55-E6.3-50	113271	55	50	10	10

E 6.3 – Hexalobular TX – L50 – IMP

Model	Item No.	TX	L [mm]	Ø [mm]	Pk
T10-E6.3-50-IMP	113281	10	50	6	10
T15-E6.3-50-IMP	113282	15	50	4	10
T20-E6.3-50-IMP	113283	20	50	4.5	10
T25-E6.3-50-IMP	113284	25	50	6	10
T30-E6.3-50-IMP	113285	30	50	6	10
T40-E6.3-50-IMP	113286	40	50	–	10

E 6.3 – Hexalobular TX – L50 – ZRN

Model	Item No.	TX	L [mm]	Ø [mm]	Pk
T8-E6.3-50-ZRN	113291	8	50	3	10
T10-E6.3-50-ZRN	113292	10	50	3	10
T15-E6.3-50-ZRN	113293	15	50	4	10
T20-E6.3-50-ZRN	113294	20	50	4.5	10
T25-E6.3-50-ZRN	113295	25	50	6	10
T30-E6.3-50-ZRN	113296	30	50	6	10
T40-E6.3-50-ZRN	113297	40	50	–	10

E 6.3 – Hexalobular TX – L70

Model	Item No.	TX #	L [mm]	Ø [mm]	Pk
T6-E6.3-70	113211	6	70	3	10
T7-E6.3-70	113261	7	70	3	10
T8-E6.3-70	113214	8	70	3	10
T9-E6.3-70	113266	9	70	3	10
T10-E6.3-70	113217	10	70	3	10
T15-E6.3-70	113223	15	70	4	10
T20-E6.3-70	113229	20	70	4.5	10
T25-E6.3-70	113235	25	70	6	10
T27-E6.3-70	113241	27	70	6	10
T30-E6.3-70	113247	30	70	6	10
T40-E6.3-70	113253	40	70	6.3	10

E 6.3 – Hexalobular TX – L90

Model	Item No.	TX #	L [mm]	Ø [mm]	Pk
T6-E6.3-90	113258	6	90	3	10
T7-E6.3-90	113262	7	90	3	10
T8-E6.3-90	113215	8	90	3	10
T9-E6.3-90	113267	9	90	3	10
T10-E6.3-90	113218	10	90	3	10
T15-E6.3-90	113224	15	90	4	10
T20-E6.3-90	113230	20	90	4.5	10
T25-E6.3-90	113236	25	90	6	10
T27-E6.3-90	113242	27	90	6	10
T30-E6.3-90	113248	30	90	6	10
T40-E6.3-90	113254	40	90	6.3	10

E 6.3 – Hexalobular TX – L102

Model	Item No.	TX #	L [mm]	Ø [mm]	Pk
T15-E6.3-102	113225	15	102	4	10
T20-E6.3-102	113231	20	102	4.5	10
T25-E6.3-102	113237	25	102	6	10
T30-E6.3-102	113249	30	102	6	10
T40-E6.3-102	113255	40	102	6.3	10

E 6.3 – Hexalobular TX – L127

Model	Item No.	TX #	L [mm]	Ø [mm]	Pk
T10-E6.3-127	113220	10	127	3	10
T15-E6.3-127	113226	15	127	4	10
T20-E6.3-127	113232	20	127	4.5	10
T25-E6.3-127	113238	25	127	6	10
T27-E6.3-127	113244	27	127	6	10
T30-E6.3-127	113250	30	127	6	10
T40-E6.3-127	113256	40	127	6.3	10

E 6.3 – Hexalobular TX – L152

Model	Item No.	TX #	L [mm]	Ø [mm]	Pk
T6-E6.3-152	113259	6	152	3	10
T7-E6.3-152	113263	7	152	3	10
T8-E6.3-152	113264	8	152	3	10
T9-E6.3-152	113268	9	152	3	10
T10-E6.3-152	113221	10	152	3	10
T15-E6.3-152	113227	15	152	4	10
T20-E6.3-152	113233	20	152	4.5	10
T25-E6.3-152	113239	25	152	6	10
T27-E6.3-152	113245	27	152	6	10
T30-E6.3-152	113251	30	152	6	10
T40-E6.3-152	113257	40	152	6.3	10
T45-E6.3-152	113269	45	152	7	10

E 6.3 – Hexalobular TX – L200

Model	Item No.	TX #	L [mm]	Ø [mm]	Pk
T20-E6.3-200	113272	20	200	4.5	–
T25-E6.3-200	113273	25	200	6	–
T30-E6.3-200	113274	30	200	6	–

E 6.3 – Hexalobular TX – L250

Model	Item No.	TX #	L [mm]	Ø [mm]	Pk
T25-E6.3-250	113274	25	250	6	–
T30-E6.3-250	113277	30	250	6	–

E 6.3 – Hexalobular TX – XXL

Model	Item No.	TX #	L [mm]	Ø [mm]	Pk
T25-E6.3-300	113275	25	300	6	–
T30-E6.3-325	113278	30	325	6	–
T30-E6.3-400	113279	30	400	6	–

All specifications without guarantee, errors and omissions excepted. Other versions/sizes/lengths on request.
