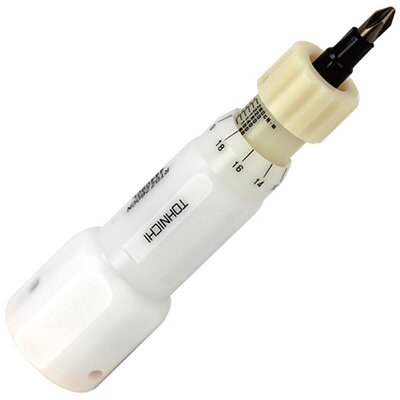

Tohnichi RTDZ Insulated Adjustable Torque Screwdriver

Capacity 260 / 500 cNm

Insulated Rotary Slip Adjustable Torque Screwdriver

Same basic features and functions as Adjustable RTD but with insulated body. Designed for use in environments where there are potential electric shock hazards. Withstands voltage: Max AC1000V. Prevents electric shock accidents.

Torque setting is easy to adjust by knob and scale. When set torque value is achieved, rotary slip prevents over-torque. Ideal for electric car assembly, connection of battery terminal, and wiring work.

Compliant with calibration procedures of ISO 6789 Type II Class D. Accepts standard 1/4 hex root shaped bits (sold separately). Bits are not insulated.

Application

Electric motor vehicles, batteries, contamination prevention.

Key Features

Withstands voltage: max AC 1000V
Accuracy acc. EN ISO 6789 type II class D
Micrometer adjustable
Clockwise direction
Rotary slip clutch mechanism ('Cam-Over')
Hex bit insert E 6.3 (1/4 inch)

Scope of Supply

Torque Screwdriver RTDZ
Calibration Certificate (ISO/JIS)
Original user manual (jap./eng.)

RTDZ – S.I. models

Model	Item No.	Torque Range [cN·m]	Graduation	OvL [mm]	Weight [kg]
RTDZ260CN	NEW	60 - 260	2	150	0.22
RTDZ500CN	NEW	100 - 500	5	183	0.38

RTDZ – metric *

Model	Item No.	Torque Range [kgf·cm]	Graduation	Length [mm]	Weight [kg]
26RTDZ	NEW	6 - 26	0.2	150	0.22
50RTDZ	NEW	10 - 50	0.5	183	0.38

* Metric models are made to order and are non-returnable.

Table showing specifications by the manufacturer. It is recommended to primarily use in medium performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (maximum capacity), a larger model or tool might be more advisable.

All technical data without guarantee, errors and omissions excepted.
