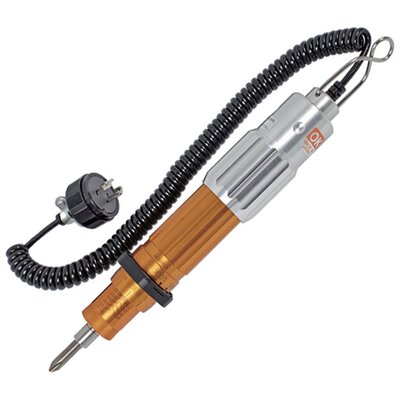

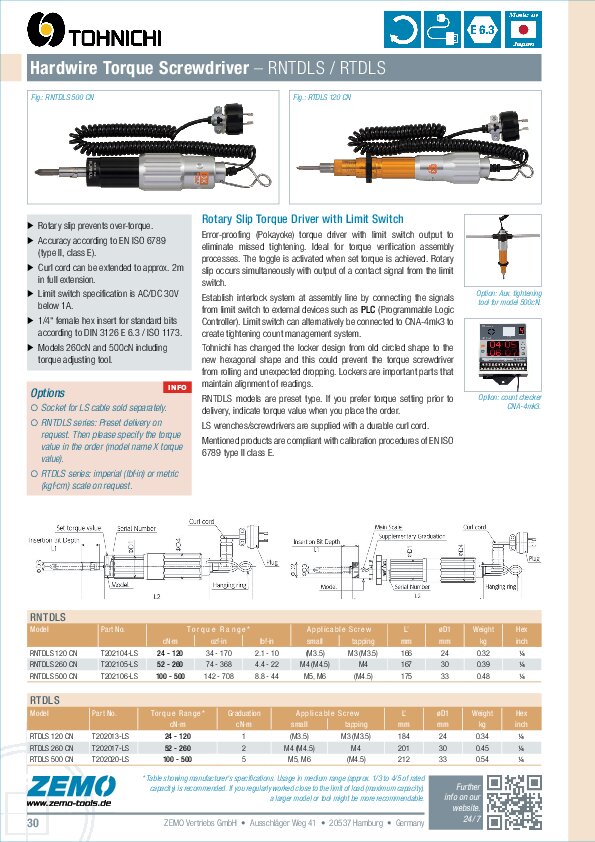

Tohnichi RTDLS Rotary Slip Torque Driver with Limit Switch

Capacity 120 / 260 / 500 cNm

Error-proofing (PokaYoke) torque screwdriver with limit switch output to eliminate missed tightening

Ideal for assembly processes with torque monitoring. After reaching the set torque, the limit switch transmits a trigger signal. This can be picked up by means of a PLC, for example. At the same time, the slip clutch is activated, making over-torque impossible.

Series RTDLS are adjustable models. Along the micrometer scale, the desired torque can be easily and quickly adjusted. A locking mechanism prevents unintentional torque adjustment during use.

An additional auxiliary tool (sold separately) is available for each of the 500 cNm models for easier power transmission. For counting tightening operations, the LS screwdriver can be connected to an optional 'CNA-4mk3', for example.

Features

Rotary slip prevents over-torque
Accuracy acc. to EN ISO 6789 (Type II)
Curl cord can be extended to approx. 2m in full extension
Limit switch specification is AC/DC 30V below 1A
1/4“ female hex insert for standard bits according to DIN 3126 E 6.3 / ISO 1173
RTDLS series with traceable calibration certificate (ISO, JCSS) incl.

Options / Accs / Spares

Female connector #WA5219K (female) to match limit switch connector (male).
Metric (kgf·cm) scale on request.
For model 500CN an additional T-handle (#1031) is available for easier power transmission.
Electronic tightening counter CNA-4mk3 (Count Checker).

RTDLS – Centi-Newtonmetre

Model	Part No.	Torque Range [cN·m]	Graduation	Length [mm]	Weight [kg]
RTDLS 120 CN	T202013-LS	20 - 120	1	184	0.34
RTDLS 260 CN	T202017-LS	60 - 260	2	201	0.45
RTDLS 500 CN	T202020-LS	100 - 500	2.5	212	0.54

RTDLS – Pound-inch

Model	Item No.	Torque Range [lbf·in]	Graduation	Length [mm]	Weight [kg]
RTDLS10i	T202016-LS	2 - 10	0.1	184	0.34
RTDLS22i	T202019-LS	6 - 22	0.2	201	0.45
RTDLS40i	T202022-LS	10 - 40	0.5	212	0.54

Table showing specifications by the manufacturer. It is recommended to primarily use in medium performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (maximum capacity), a larger model or tool might be more advisable.

All specifications without guarantee, errors and omissions excepted.
