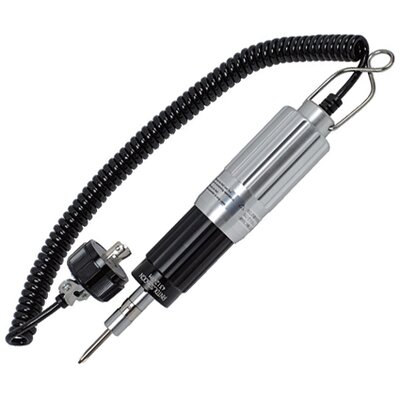

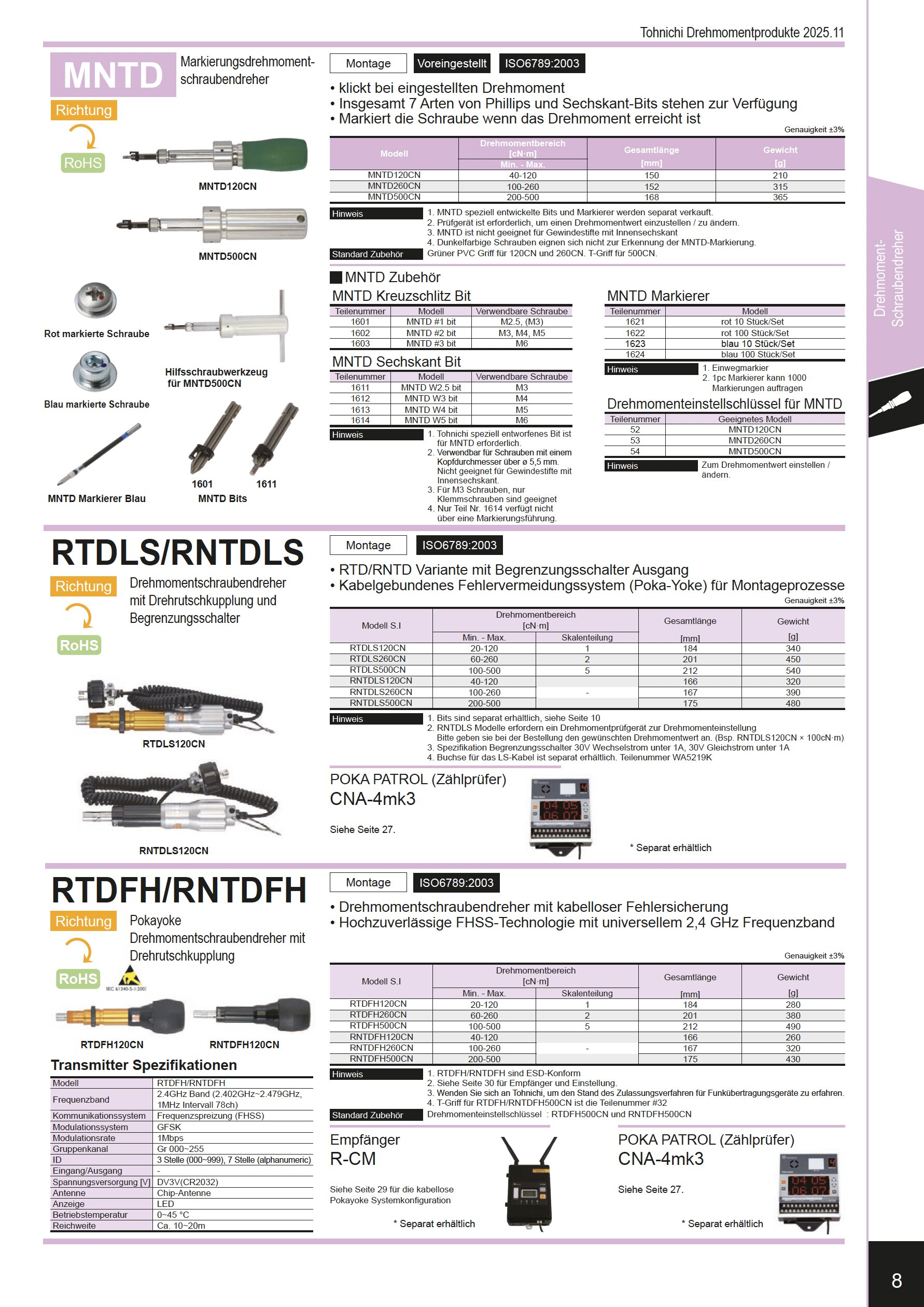

Tohnichi RNTDLS Rotary Slip Torque Driver with Limit Switch

Capacity 120 / 260 / 500 cNm

Error-proofing (PokaYoke) torque screwdriver with limit switch output to eliminate missed tightening

Ideal for assembly processes with torque monitoring. After reaching the set torque, the limit switch transmits a trigger signal. This can be picked up by means of a PLC, for example. At the same time, the slip clutch is activated, making over-torque impossible.

Series RNTDLS are preset models without scale and are particularly suitable for repetitive tightening operations at the same torque.

An additional auxiliary tool (sold separately) is available for each of the 500 cNm models for easier power transmission. For counting tightening operations, the LS screwdriver can be connected to an optional 'CNA-4mk3', for example.

Features

Rotary slip prevents over-torque
Accuracy acc. to EN ISO 6789 (Type II)
Curl cord can be extended to approx. 2m in full extension
Limit switch specification is AC/DC 30V below 1A
1/4“ female hex insert for standard bits according to DIN 3126 E 6.3 / ISO 1173

Options / Accs / Spares

Female connector #WA5219K (socket) to match limit switch connector (plug).
RNTDLS series: preset delivery on request. Then please specify torque value in the order (e.g. RNTDLS260CN X 200CN).
For model 500CN an additional T-handle (#1031) is available for easier power transmission.
Electronic tightening counter CNA-4mk3 (Count Checker).

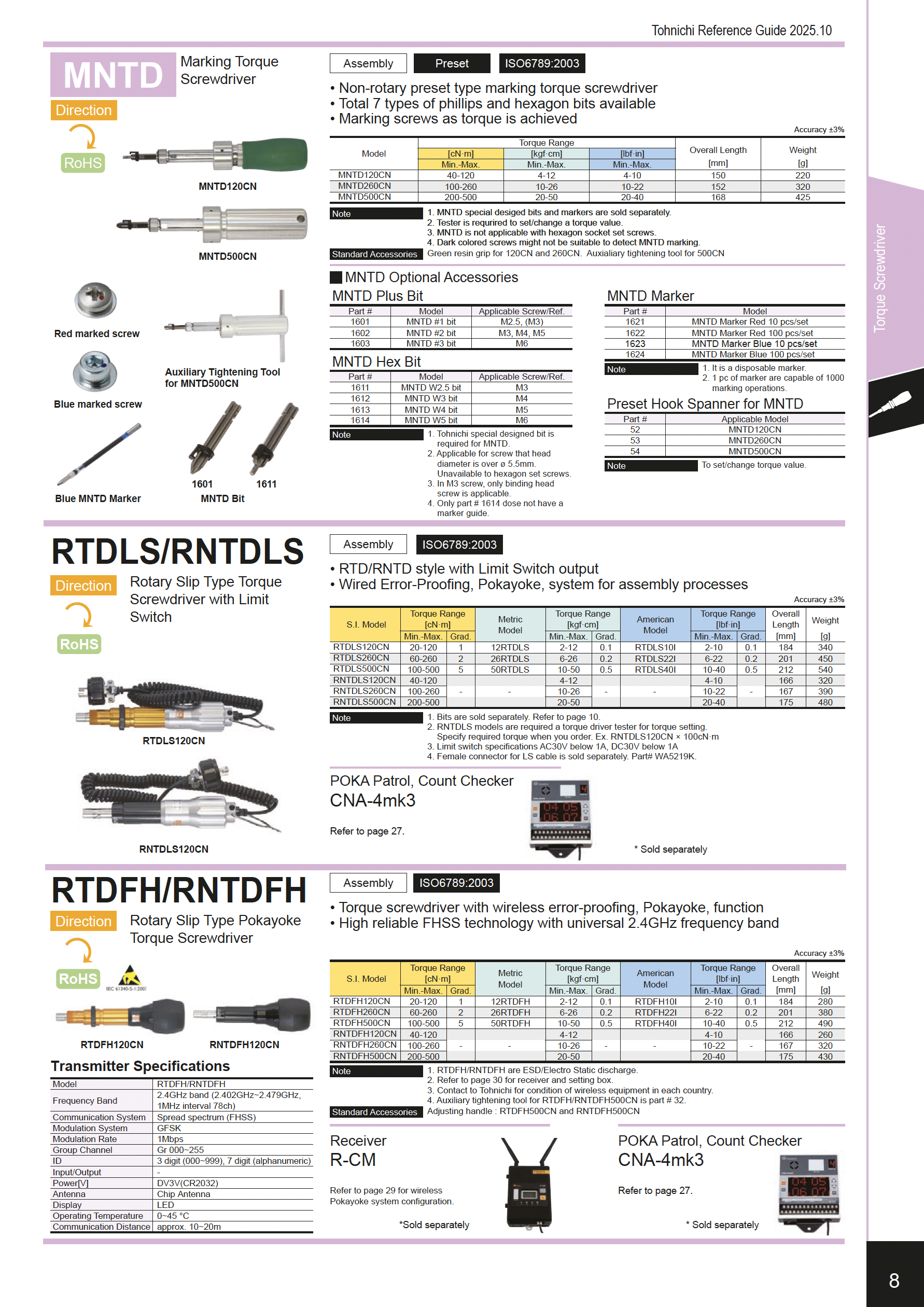

RNTDLS (preset)

Model	Item No.	Torque Range [cN·m]	Torque Range [lbf·in]	Torque Range [kgf·cm]	Length [mm]	Weight [kg]
RNTDLS120CN	T202104-LS	40 - 120	4 - 10	4 - 12	166	0.32
RNTDLS260CN	T202105-LS	100 - 260	10 - 22	10 - 26	167	0.39
RNTDLS500CN	T202106-LS	200 - 500	20 - 40	20 - 50	175	0.48

Table showing specifications by the manufacturer. It is recommended to primarily use in medium performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (maximum capacity), a larger model or tool might be more advisable.

All specifications without guarantee, errors and omissions excepted.
