Battery-Operated Torque Screwdriver with Angle Encoder
Hand-held battery-powered torque screwdriver with built-in torque sensor for data management. For labor-saving and high-accuracy tightening. Permits management of entire tightening torque data. Purchase this at a low cost and already start using it. Why opt for a high-priced dedicated controller?
Comes with built-in torque sensor and angle sensor. Tightening torque upper and lower limits and angle can be set using the key-in function on the body, or through Bluetooth® connectivity. Just pull the trigger of the PTA-G-BT for fully automatic tightening.
Measures torque and angle values to determine PASS or FAIL. Can detect tightening abnormalities such as thread fouling and internal thread defects, and can also detect double tightening (Pokayoke /error-proofing).
Can transmit tightening data via Bluetooth® technology. Use Excel® on your computer to manage data received via the included DtRcv (Data Receiver) software.
PTA-G-BT conforms to wireless technical standards in Japan, the EU, Thailand, Malaysia, Indonesia, India, and China (as of July 2021).
Key Features & Specs
- Brushless DC motor
- Torque sensor
- Angle encoder and Gyro sensor
- Torque accuracy ±5%
- Angle accuracy ±5°
- Bluetooth® V3.0
- Data memory 1000 readings
- Radio output power 4dBm
- Communication distance ca. 10m
Extra Benefit
Customers who purchase PTA-BT will receive the PTA-BT tightening control software used in the video clip from 2:14 to 3:16.
- Switchable between Japanese/English, PC sends tightening conditions (P-set) to the tool, and after tightening, the results are sent from the tool to the PC.
- Up to nine different tightening conditions can be registered for one work (up to two different types of work).
- The software displays a picture of the customer's work, allowing the user to visually check the work order, etc.
- Up to two types of tools can also be registered, so models with different torque ranges and tools with different sockets are also supported.
- Imported tightening data can be exported in CSV format.
Options, Accs & Spares
- EYFB50B = 18V Li-ion battery pack, high capacity 5.0Ah
- EYFA10-H = Protector for battery
- EY0L82B = Desktop charger

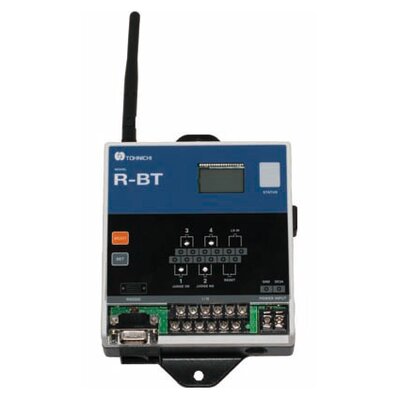

- R-BT = Bluetooth Receiver
Can manage tightened-to-completion signals from up to four tools; pls contact us for details.

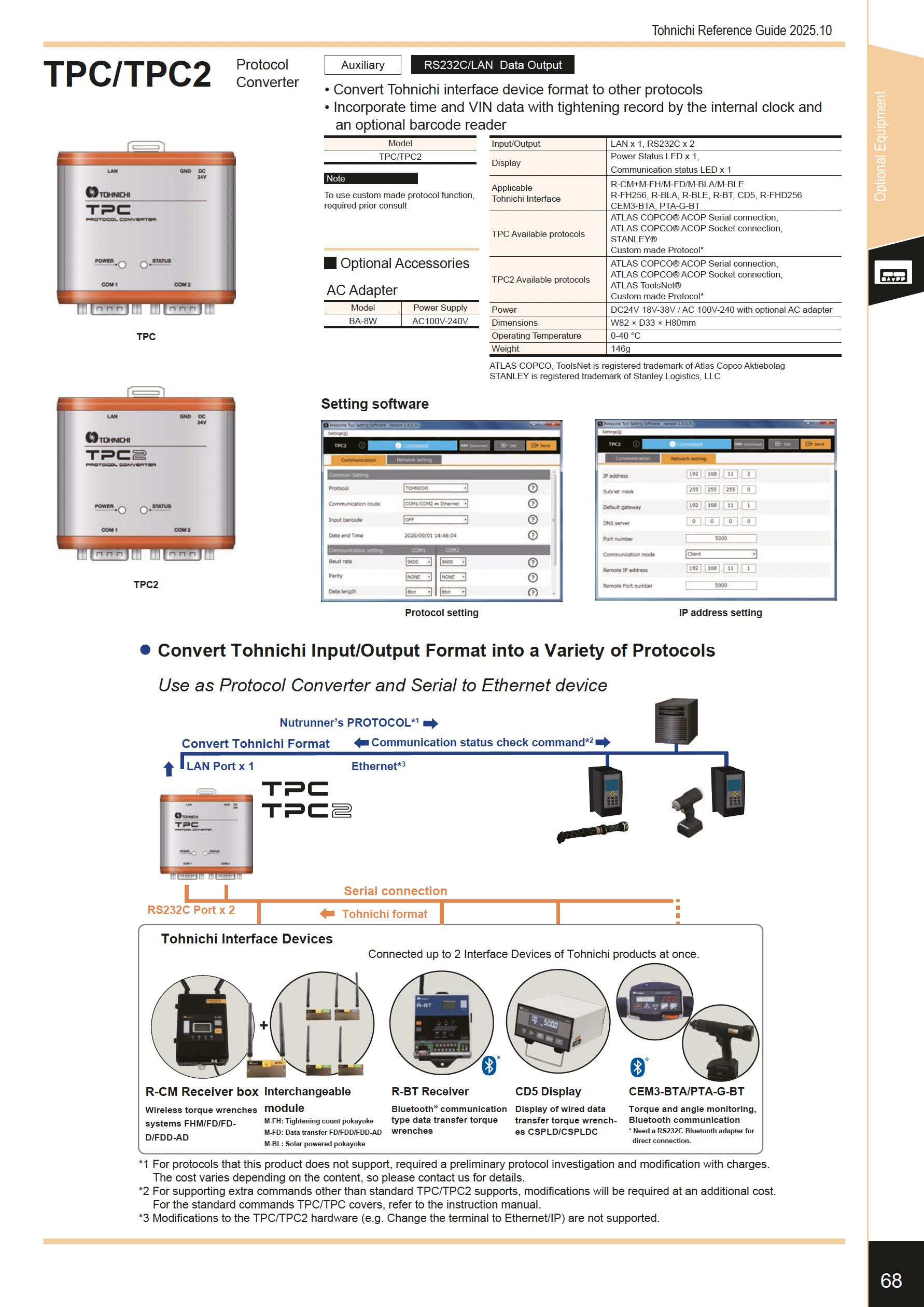

- TPC/TPC2 = Protocol Converter
Convert Tohnichi output format to a wide variety of protocols in your network. You can select from four protocols, including Atlas Copco Open Protocol. TPC model: ACOP serial / ACOP socket / Stanley / Custom; TPC2 model: ACOP serial / ACOP socket / ToolsNet / Custom. Pls contact us for details.
Notes
- Turning the PTA-BT/PTA-G-BT counterclockwise is for loosening operations only, and cannot be performed for torque management.
- Battery pack and charger not standard accessories and must be purchased separately.
