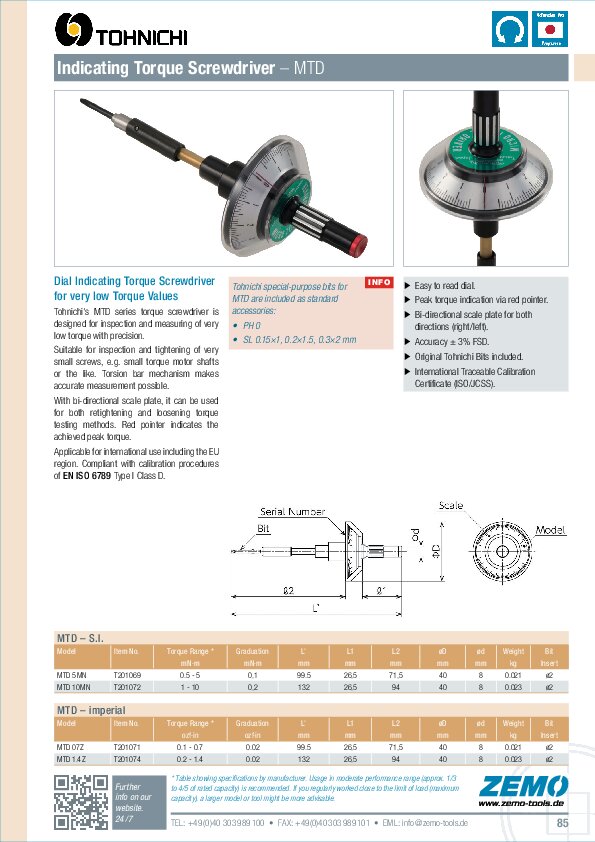

Tohnichi MTD Dial Indicating Torque Screwdriver

Capacity 5 / 10 mNm

Used for inspection and measuring of very small torque (mN·m)

Tohnichi's MTD series torque screwdriver is designed for inspection and measuring of very low torque with precision. Suitable for inspection and tightening of very small screws, e.g. small torque motor shafts or the like. Torsion bar mechanism makes accurate measurement possible.

With bi-directional scale plate, it can be used for both retightening and loosening torque testing methods. Memory pointer captures the achieved peak torque.

Applicable for international use including the EU region. Compliant with calibration procedures of EN ISO 6789 Type I Class D.

Key Features

Bi-directional scale
Accuracy ± 3%
Compliant to EN ISO 6789 type I class D
Bit insert #2 Tohnichi

Scope of Supply

Torque screwdriver MTD
Calibration Certificate (ISO/JIS)
Operating Manual
Special Bits:
- Crossed #0
- Slotted 0.15x1 / 0.2x1.5 / 0.3x2 mm

Options / Accs / Spares

Alternatively with imperial units (ozf·in) available. Metric scale (gf·cm) on request.

MTD – S.I. models (mN·m)

Model	Item No.	Torque Range [mN·m]	Graduation	Length [mm]	Handle Ø [mm]	Weight [kg]
MTD5MN	T201069	1 - 5	0.1	110	8	0.021
MTD10MN	T201072	2 - 10	0.2	132	8	0.023

MTD – imperial (ozf·in)

Model	Item No.	Torque Range [ozf·in]	Graduation	Length [mm]	Handle Ø [mm]	Weight [kg]
MTD 07 Z	T201071	0.1 - 0.7	0.02	100	8	0.021
MTD 1.4 Z	T201074	0.2 - 1.4	0.02	132	8	0.023

MTD – metric *

Model	Item No.	Torque Range [gf·cm]	Graduation	Length [mm]	Handle Ø [mm]	Weight [kg]
50MTD	T201070	5 - 50	1	110	8	0.021
100MTD	T201073	10 - 100	2	132	8	0.023

* Metric models are made to order and are non-returnable.

Table showing specifications by the manufacturer. It is recommended to primarily use in medium performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (maximum capacity), a larger model or tool might be more advisable.

All specifications without guarantee, errors and omissions excepted.
