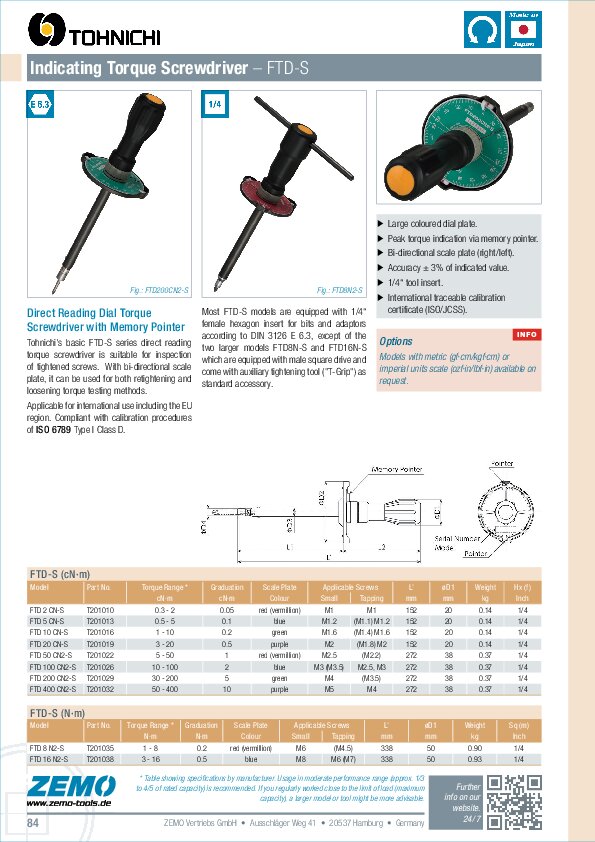

Direct Reading Torque Screwdriver for Inspection
Tohnichi's FTD-S series torque screwdriver is ideal for inspecting tightened screws. With bi-directional scale plate, it can be used for both retightening and loosening torque testing methods. Memory pointer captures peak torque. Model FTD8N-S and FTD16N-S comes with auxiliary tightening tool ("T-Grip") as standard accessory.
Applicable for international use including the EU region. Compliant with calibration procedures of ISO 6789 Type I Class D.
Key Features
Scope of Supply
Options / Accs / Spares
Model | Item No. | Torque Range [cN·m] | Graduation | Length [mm] | Handle Ø [mm] | Hex (f) [inch] | Weight [kg] |
---|---|---|---|---|---|---|---|
FTD 2 CN-S | T201010 | 0.4 - 2 | 0.05 | 152 | 20 | 1/4 | 0.14 |
FTD 5 CN-S | T201013 | 1.0 - 5 | 0.1 | 152 | 20 | 1/4 | 0.14 |
FTD 10 CN-S | T201016 | 2 - 10 | 0.2 | 152 | 20 | 1/4 | 0.14 |
FTD 20 CN-S | T201019 | 4 - 20 | 0.5 | 152 | 20 | 1/4 | 0.14 |
FTD 50 CN2-S | T201022 | 10 - 50 | 1 | 272 | 38 | 1/4 | 0.37 |
FTD 100 CN2-S | T201026 | 20 - 100 | 2 | 272 | 38 | 1/4 | 0.37 |
FTD 200 CN2-S | T201029 | 40 - 200 | 5 | 272 | 38 | 1/4 | 0.37 |
FTD 400 CN2-S | T201032 | 80 - 400 | 10 | 272 | 38 | 1/4 | 0.37 |
Model | Item No. | Torque Range [ozf·in] | Graduation | Length [mm] | Handle Ø [mm] | Hex (f) [inch] | Weight [kg] |
---|---|---|---|---|---|---|---|
FTD3Z2-S | T201012 | 0.5 - 3 | 0.1 | 152 | 20 | 1/4 | 0.14 |
FTD7Z2-S | T201015 | 1 - 7 | 0.2 | 152 | 20 | 1/4 | 0.14 |
FTD15Z2-S | T201018 | 2 - 15 | 0.5 | 152 | 20 | 1/4 | 0.14 |
FTD30Z2-S | T201021 | 5 - 30 | 1 | 152 | 20 | 1/4 | 0.14 |
FTD70Z2-S | T201024 | 10 - 70 | 2 | 272 | 38 | 1/4 | 0.37 |
Model | Item No. | Torque Range [lbf·in] | Graduation | Length [mm] | Handle Ø [mm] | Hex (f) [inch] | SqD (m) [inch] | Weight [kg] |
---|---|---|---|---|---|---|---|---|
5FTD2-A-S | T201025 | 0.5 - 5 | 0.1 | 272 | 38 | 1/4 | – | 0.37 |
10FTD2-A-S | T201028 | 1 - 10 | 0.2 | 272 | 38 | 1/4 | – | 0.37 |
20FTD2-A-S | T201031 | 3 - 20 | 0.5 | 272 | 38 | 1/4 | – | 0.37 |
40FTD2-A-S | T201034 | 5 - 40 | 1 | 272 | 38 | 1/4 | – | 0.37 |
80FTD2-A-S | T201037 | 10 - 70 | 2 | 338 | 50 | – | 1/4 | 0.90 |
160FTD2-A-S | T201040 | 20 - 140 | 5 | 338 | 50 | – | 1/4 | 0.93 |
Model | Item Code | Torque Range [N·m] | Graduation | Length [mm] | Handle Ø [mm] | SqD (m) [inch] | Weight [kg] |
---|---|---|---|---|---|---|---|
FTD8N2-S | T201035 | 1 - 8 | 0.2 | 338 | 50 | 1/4 | 0.90 |
FTD16N2-S | T201038 | 3 - 16 | 0.5 | 338 | 50 | 1/4 | 0.93 |
Table showing specifications by the manufacturer. It is recommended to primarily use in medium performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (maximum capacity), a larger model or tool might be more advisable.
All specifications without guarantee, errors and omissions excepted.
