Tohnichi DBE Dial Indicating Torque Wrench

Capacity 560 / 700 / 850 / 1000 / 1400 / 2100 / 2800 Nm

Dial Indicating Torque Wrench

Basic direct reading torque wrench. Wide range, high accuracy, lightweight, easy-to-read large scale, suitable for inspection. DBE-S series have a convenient memory pointer giving peak readings.

Since the dial can be rotated, the pointer can be set to the desired torque first, and complete tightening is achieved when the pointer indicates "0".

DBE accuracy is consistent regardless of where the hand is placed.

Key Features

Oversized dial face is extremely easy to read.
Accuracy and calibration procedures compliant to ISO 6789 type I class B.
Bi-directional.
Fixed male square drive.
DBE has an extension handle.

Scope of Supply

Torque Wrench DBE
Calibration certificate ISO6789-2017
Operating manual

Options / Accs / Spares

Alternatively available in english units (lbf·in, lbf·ft).
Models with metric scale (kgf·cm, kgf·m) on request.
Adjusting Tool #316 (torque tester required).

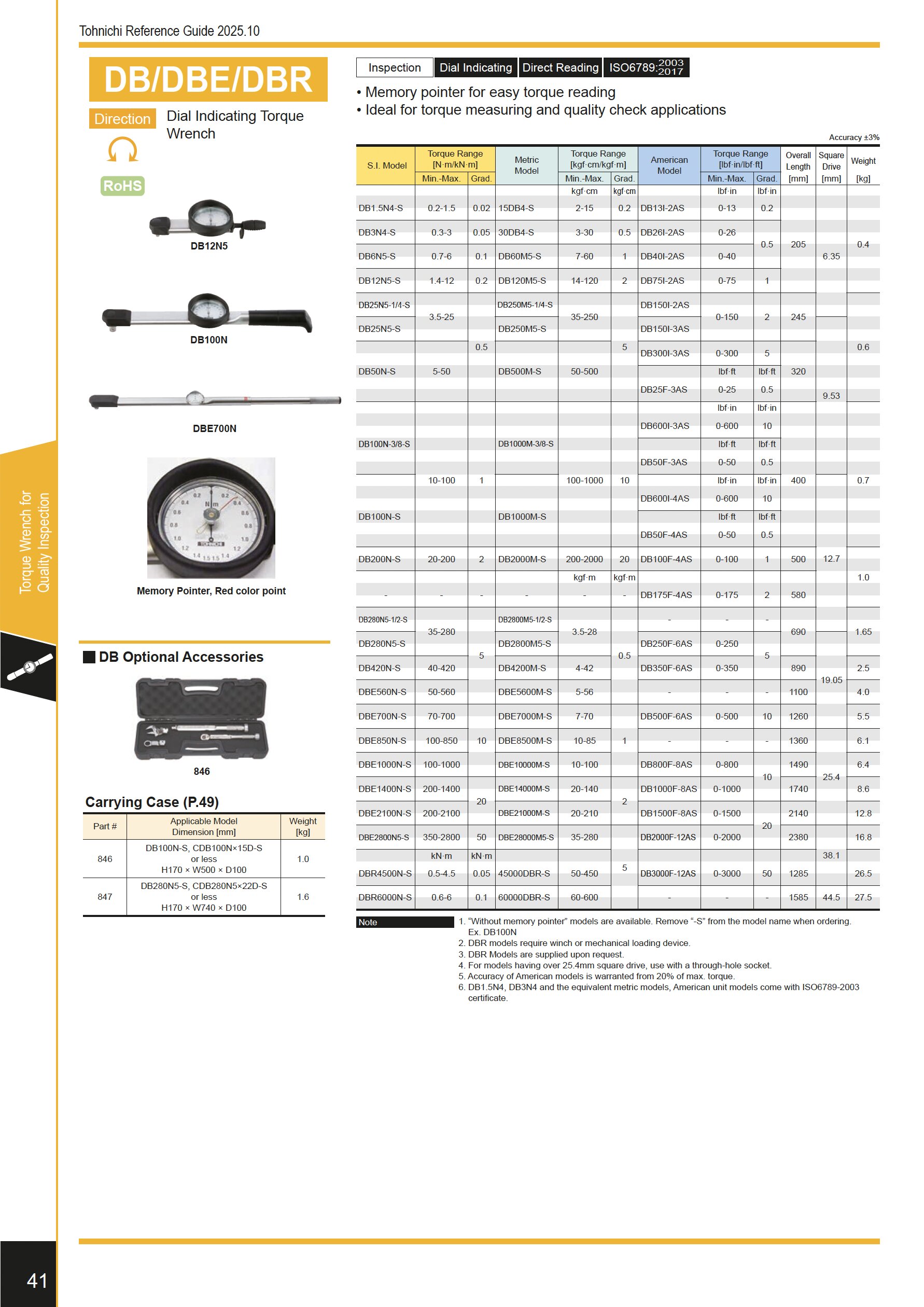

DBE – S.I. models

Model	Item No.	Torque Range [N·m]	Graduation	SqD [inch]	Length [mm]	Weight [kg]
DBE560N-S	T211150-S	50 - 560	5	3/4	1100	4.0
DBE700N-S	T211152-S	70 - 700	10	3/4	1260	5.5
DBE850N-S	T211155-S	100 - 850	10	1	1360	6.1
DBE1000N-S	T211157-S	100 - 1000	10	1	1490	6.4
DBE1400N-S	T211160-S	200 - 1400	20	1	1740	8.6
DBE2100N-S	T211163-S	200 - 2100	20	1	2140	12.8
DBE2800N-S	T211516-S	3350 - 2800	50	1.5	2380	16.8

DBE – imperial

Model	Item No.	Capacity [lbf·ft]	Graduation	SqD [inch]	Length [mm]	Weight [kg]
DB500F-6AS	T211154-S	500	10	3/4	1260	5.5
DB800F-8AS	T211159-S	800	10	1	1490	6.4
DB1000F-8AS	T211162-S	1000	10	1	1740	8.6
DB1500F-8AS	T211165-S	1500	20	1	2140	12.8
DB2000F-12AS	T211168-S	2000	20	1.5	2380	16.8

DBE – metric *

Model	Item No.	Torque [kgf·m]	Graduation	SqD [inch]	Length [mm]	Weight [kg]
DBE5600M-S	T211151-S	5 - 56	0.5	3/4	1100	4.0
DBE7000M-S	T211153-S	7 - 70	1	3/4	1260	5.5
DBE8500M-S	T211156-S	10 - 85	1	1	1360	6.1
DBE10000M-S	T211158-S	10 - 100	1	1	1490	6.4
DBE14000M-S	T211161-S	20 - 140	2	1	1740	8.6
DBE21000M-S	T211164-S	20 - 210	2	1	2140	12.8
DBE28000M5-S	T211517-S	35 - 280	5	1.5	2380	16.8

* Metric models are made to order and are non-returnable.

SI unit products (except DB1.5N4, DB1.5N4-S, DB3N4, DB3N4-S) and metric unit products (except 15DB4-S, 30DB4-S) are compliant with ISO 6789:2017 starting January 2022. Calibration Certificates and the model names of some products will change from older products. Imperial unit products are not compliant with ISO 6789:2017.

Table is showing the torque ranges specified by the manufacturer. Usage in the medium range (approx. 1/3 to 4/5 of rated capacity) is recommended. If users would mainly work close to the load capacity limit, in general a larger tool may be more recommendable.

All technical data without guarantee, errors and omissions excepted.
