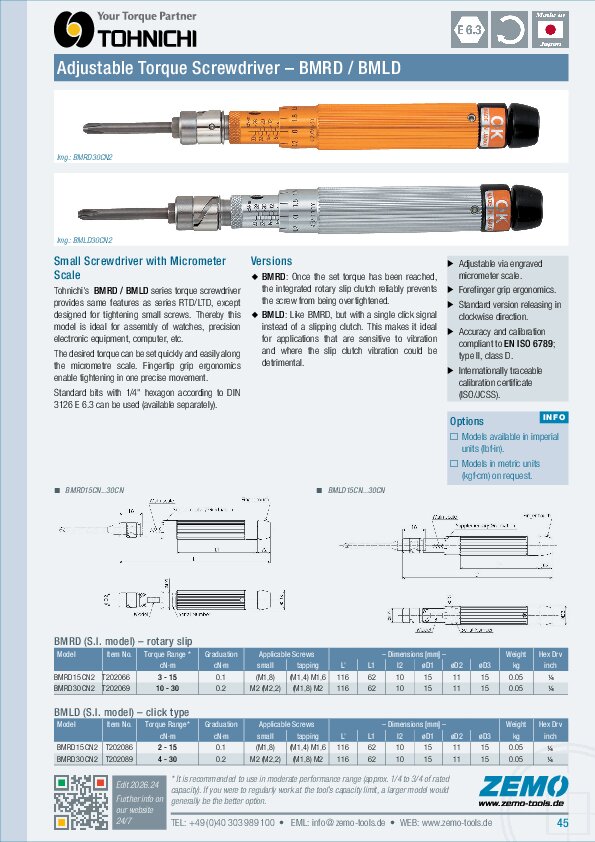

Tohnichi BMRD Adjustable Torque Screwdriver

Capacity 15 / 30 cNm

For precision tightening of fine screws (M1-M2)

Tohnichi's BMRD series torque screwdriver is designed for tightening small screws. Thereby this model is ideal for assembly of watches, precision electronic equipment, computer components, etc.

Via micrometer scale torque can easily and quickly be adjusted. Index finger holding feature allows the operator to tighten with precise movements. Upon reaching the set torque, it clicks to signal tightening is complete. Integrated rotary clutch mechanism reliably prevents over-torque.

Key Features

Accuracy acc. EN ISO 6789 type II class D
Micrometer adjustable
Clockwise direction
Rotary clutch mechanism ('Cam-Over')
Calibration Certificate (ISO/JIS)

Scope of Supply

Torque Screwdriver BMRD
Calibration Certificate (ISO/JIS)
Original user manual (jap./eng.)

Options / Accs / Spares

Available in metric (kgf·cm) on request.

BMRD – S.I. models

Model	Item No.	Torque Range [cN·m]	Graduation	Length [mm]	End Ø [mm]	Weight [kg]
BMRD15CN2	T202066	2 - 15	0.1	116	15	0.05
BMRD30CN2	T202069	4 - 30	0.2	116	15	0.05

BMRD – imperial

Model	Item No.	Torque Range [lbf·in]	Graduation	OvL [mm]	End Ø [mm]	Weight [kg]
1.5BMRD2-A	T202068	0.2 - 1.5	0.005	116	15	0.05
3BMRD2-A	T202071	0.4 - 3	0.01	116	15	0.05

BMRD – metric *

Model	Item No.	Torque Range [kgf·cm]	Graduation	Length [mm]	End Ø [mm]	Weight [kg]
1.5BMRD2	T202067	0.2 - 1.5	0.01	116	15	0.05
3BMRD2	T202070	0.4 - 3	0.02	116	15	0.05

* Metric models are made to order and are non-returnable.

Table showing specifications by the manufacturer. It is recommended to primarily use in medium performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (maximum capacity), a larger model or tool might be more advisable.

All technical data without guarantee, errors and omissions excepted.
