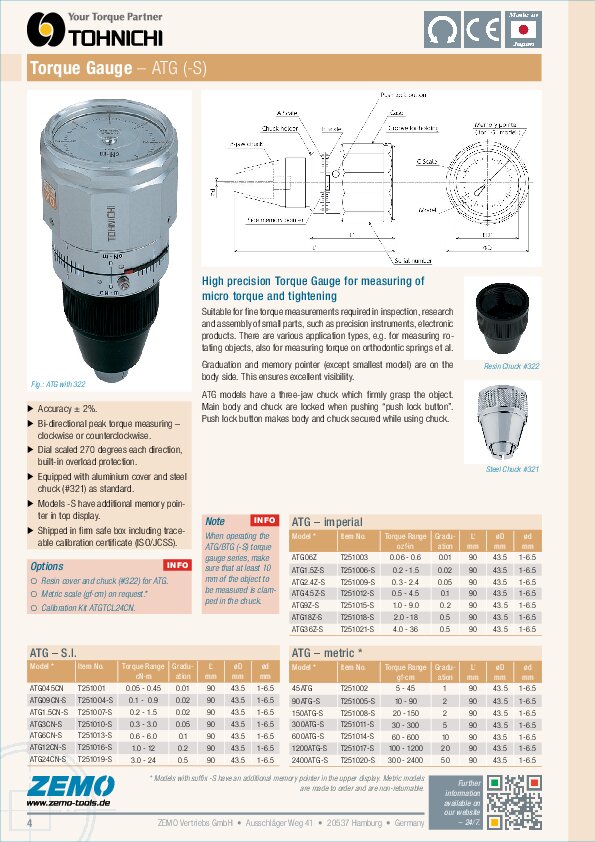

Tohnichi ATG Torque Gauge

Capacity 0.45 / 0.9 / 1.5 / 3 / 6 / 12 / 24 cNm

High Pecision Torque Gauge for Measuring of Micro Torque and Tightening

Suitable for fine torque measurements required in inspection, research and assembly of small parts, such as precision instruments, electronic products. There are various application types, e.g. for measuring rotating objects, also for measuring torque on orthodontic springs et al.

Graduation and side memory pointer (except ATG045CN) are on the body. This ensures excellent visibility in different operating positions. ATG models have a three-jaw chuck which firmly grasp the object. Main body and chuck are locked when pushing “push lock button”. Push lock button makes body and chuck secured while using chuck.

Key Features

Accuracy ± 2%
Bi-directional measurement – cw / ccw.
Dial scaled 270 degrees each direction, built-in overload protection.
Side scale ensures excellent visibility
Models with -S suffix have additional memory pointer in top display.
Aluminium cover and steel cuck (#321) as standard.

Dims & Weights

Chuck span: 1 - 6.5 mm
Total length: 89 mm
Outer diameter: 43.5 mm
Weight: 0.18 kg

Scope of Supply

Torque Gauge ATG
Firm storage box
Operating manual
Traceable calibration certificate

Options, Accs & Spares

Scaling in imperial units (ozf·in)
Scaling in metric units (gf·cm)
For calibration, ATGTCL is available
Resin cover and chuck (No. 322)

ATG – S.I. models

Model	Item No.	Torque Range [cN·m]	Graduation	Chuck Span [mm]	Weight [kg]
ATG045CN	T251001	0.05 - 0.45	0.01	1 - 6.5	0.18
ATG09CN-S	T251004-S	0.10 - 0.90	0.02	1 - 6.5	0.18
ATG1.5CN-S	T251007-S	0.20 - 1.50	0.02	1 - 6.5	0.18
ATG3CN-S	T251010-S	0.30 - 3.00	0.05	1 - 6.5	0.18
ATG6CN-S	T251013-S	0.60 - 6.00	0.10	1 - 6.5	0.18
ATG12CN-S	T251016-S	1.00 - 12.0	0.20	1 - 6.5	0.18
ATG24CN-S	T251019-S	3.00 - 24.0	0.50	1 - 6.5	0.18

ATG – imperial

Model	Item No.	Torque Range [ozf·in]	Graduation	Chuck Span [mm]	Weight [kg]
ATG06Z	T251003	0.06 - 0.6	0.01	1 - 6.5	0.18
ATG1.5Z-S	T251006-S	0.2 - 1.5	0.02	1 - 6.5	0.18
ATG2.4Z-S	T251009-S	0.3 - 2.4	0.05	1 - 6.5	0.18
ATG4.5Z-S	T251012-S	0.5 - 4.5	0.1	1 - 6.5	0.18
ATG9Z-S	T251015-S	1 - 9	0.2	1 - 6.5	0.18
ATG18Z-S	T251018-S	2 - 18	0.5	1 - 6.5	0.18
ATG36Z-S	T251021-S	4 - 36	0.5	1 - 6.5	0.18

ATG – metric *

Model	Item No.	Torque Range [gf·cm]	Graduation	Chuck Span [mm]	Weight [kg]
45ATG	T251002	5 - 45	1	1 - 6.5	0.18
90ATG-S	T251005-S	10 - 90	2	1 - 6.5	0.18
150ATG-S	T251008-S	20 - 150	2	1 - 6.5	0.18
300ATG-S	T251011-S	30 - 300	5	1 - 6.5	0.18
600ATG-S	T251014-S	60 - 600	10	1 - 6.5	0.18
1200ATG-S	T251017-S	100 - 1200	20	1 - 6.5	0.18
2400ATG-S	T251020-S	300 - 2400	50	1 - 6.5	0.18

* Metric models are made to order and are non-returnable.

All specifications without guarantee, errors and omissions excepted.
