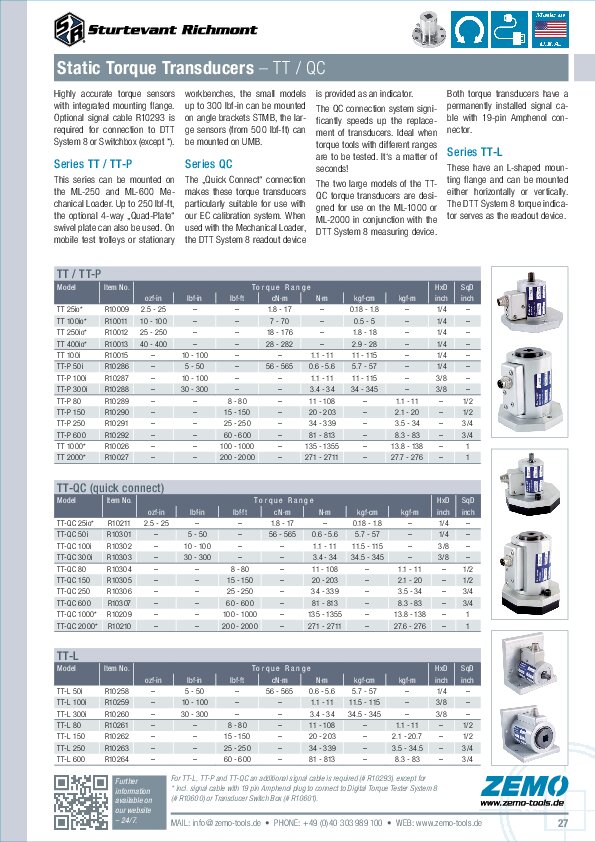

Sturtevant Richmont TT Static Torque Transducer
Capacity 25 / 100 / 250 / 400 ozf·in // 10 / 50 / 100 / 300 lbf·in // 80 / 150 / 250 / 600 / 1000 / 2000 lbf·ft
The gateway to the finest in torque measurement tools!
TT-Series Torque Transducers are designed to work with Sturtevant Richmont Digital Torque Testers or the like.
Features
- Integrated SR mounting flange.
- Can be mounted to ML-250 and ML-600 Mechanical Loader.
- Can be Mounted to Quad Plate for multiple mounting on ML-250.
- Smaller sizes (up to 400 in. oz. capacity) can be mounted to STMB or UMB brackets.
- Larger sizes (500 ft. lbs. and above) can be mounted on UMB L-bracket.
Options / Accs / Spares
- #10293 = Detachable Signal Cable 4 ft / 48 in *
- #10153 = Single Mounting L-Bracket UMB (500 ft.lb and above)
- #10154 = Triple Mounting L-Bracket STMB (up tp 400 in.oz)
- #10601 = Switchbox 4-Way
- #870776 = Square Adapter 1/4"f x 3/8"m
- #870777 = Square Adapter 3/8"f x 1/2"m
- #870778 = Square Adapter 1/2"f x 3/4"m
- #870779 = Square Adapter 3/4"f x 1/1"m
Series TT
| Model | Item No. | Torque Range [ozf·in] | Torque Range [lbf·in] | Torque Range [lbf·ft] | Torque Range [cN·m] | Torque Range [N·m] | Hx.Drv [inch] | Sq.Drv [inch] |
|---|---|---|---|---|---|---|---|---|
| TT 25iO * | R 10009 | 2.5 - 25 | – | – | 1.8 - 17 | – | 1/4 | – |
| TT 100iO * | R 10011 | 10 - 100 | – | – | 7 - 70 | – | 1/4 | – |
| TT 250iO * | R 10012 | 25 - 250 | – | – | 18 - 176 | – | 1/4 | – |
| TT 400iO * | R 10013 | 40 - 400 | 2.5 - 25 | – | 28 - 282 | – | 1/4 | – |
| TT 100i * | R 10015 | 16 - 160 | 10 - 100 | – | 11 - 113 | 1.1 - 11 | 1/4 | – |
| TT-1000 * | R 10026 | – | – | 100 - 1000 | – | 135 - 1355 | – | 1 |
| TT-2000 * | R 10027 | – | – | 200 - 2000 | – | 271 - 2711 | – | 1 |
Series TT-P
| Model | Item No. | Torque Range [lbf·in] | Torque Range [lbf·ft] | Torque Range [cN·m] | Torque Range [N·m] | Hx.Drv [inch] | Sq.Drv [inch] |
|---|---|---|---|---|---|---|---|
| TT-P 10i | R 10285 | 1 - 10 | – | 11 - 113 | 0.1 - 1.1 | 1/4 | – |
| TT-P 50i | R 10286 | 5 - 50 | – | 56 - 565 | 0.6 - 5.6 | 1/4 | – |
| TT-P 100i | R 10287 | 10 - 100 | – | – | 1.1 - 11 | 3/8 | – |
| TT-P 300i | R 10288 | 30 - 300 | – | – | 3.4 - 34 | 3/8 | – |
| TT-P 80 | R 10289 | – | 8 - 80 | – | 11 - 108 | – | 1/2 |
| TT-P 150 | R 10290 | – | 15 - 150 | – | 20 - 203 | – | 1/2 |
| TT-P 250 | R 10291 | – | 25 - 250 | – | 34 - 339 | – | 3/4 |
| TT-P 600 | R 10292 | – | 60 - 600 | – | 81 - 813 | – | 3/4 |
* Series TT comes with round flange and cable attached. Series TT-P equipped with hex flange, requires #10293 cable to be operational.
All specifications without guarantee, errors and omissions excepted.
