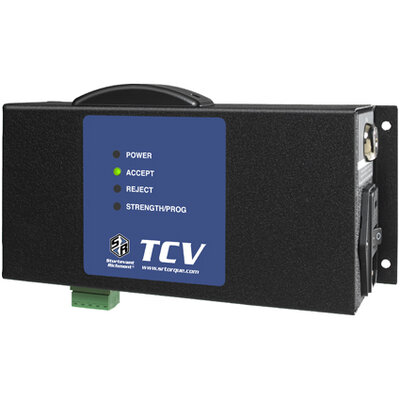

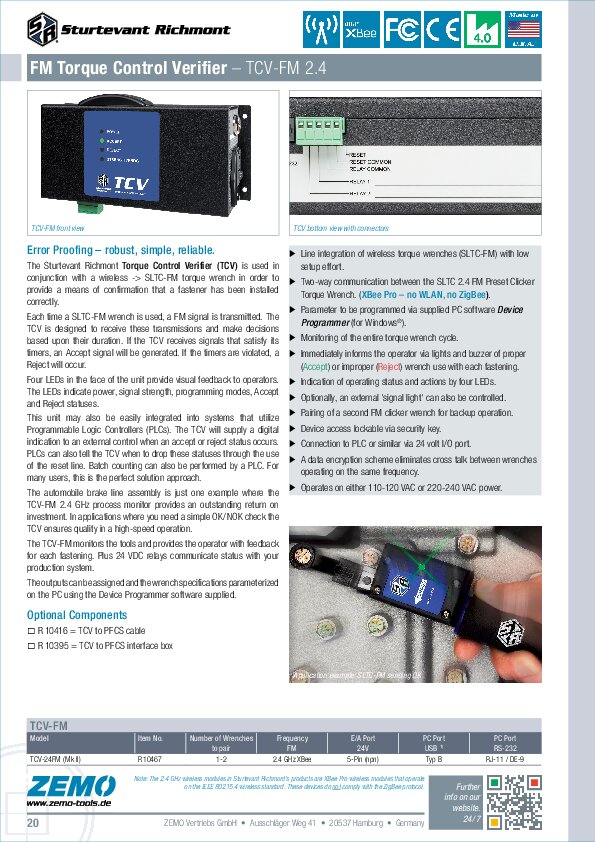

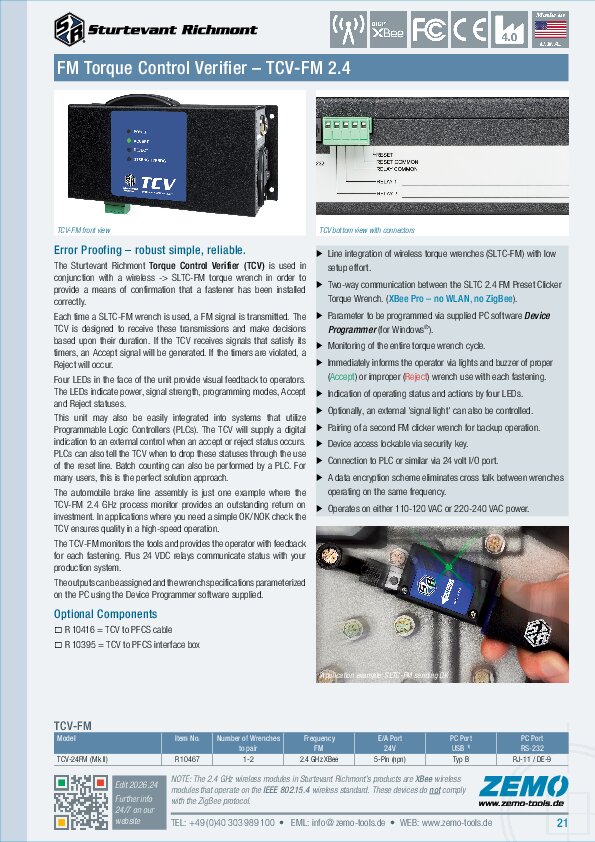

Sturtevant Richmont TCV-FM Torque Control Verifier

Error Proofing for SLTC-FM Preset Click Wrenches

The Torque Control Verifier (TCV) is ideal when the application calls for accuracy, repeatability and simplicity of the 2.4 GHz Wireless Preset Clicker-Type Torque Wrench, and only a single tool at the station needs to be controlled. The TCV-FM provides verification to the operator on the quality of each use, plus DC 24V relays and I/O port for line controller communications (PLC).

When a click-type torque wrench is operated on a fastener, the wrench spends a certain amount of time in the “clicked“ position; thus a small time slot occurs between releasing and easing the wrench. The TCV-FM detects proper use of the Switch Wrench via timer – like the PTV-FM, but without batch counting. It compares the duration of the click to the T-min and T-max specification limits and immediately communicates to the operator the acceptability of that use of the wrench. Thus missing or over-torqueing of fasteners and jerking torque wrenches is eliminated, the error rate is reduced and the productivity is improved.

The TCV-FM was created for those who desire to integrate their manual torque wrenches into their control line automation, without necessarily needing all of the features of the PTV-FM. The TCV performs the comparison and communication functions required for basic control, but without the stand-alone capabilities of the PTV.

Key Features

• Monitoring of the entire torque wrench cycle.
• Additional interface for second SLTC-FM wrench in backup operation.
• Bi-directional wireless communication on 2.4 GHz band.
• Data encryption scheme eliminates cross talk between wrenches operating on the same frequency.
• Immediately informs operator via lights and a buzzer of proper (Accept) or improper (Reject) wrench use.
• 5-pin connector for use with 24V DC I/O system, e.g. PLC.
• Cycle Accept, Cycle Reject and Reset relays keep line control system informed of status at all time.
• Easily program tool use specifications via the USB port with supplied Device Programmer software on PC.
• Operates on either 110-120 VAC or 220-240 VAC power.
• Device parameter setting lockable via access key.

Order Codes

• R10467 = TCV-FM 2.4
• R10416 = TCV to PFCS cable
• R10395 = TCV to PFCS interface box

Related Products

• SLTC-FM 2.4 GHz
