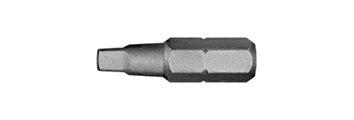

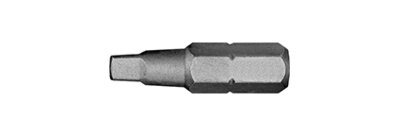

square bit (C drive)
Images
Downloads
Square bits w 1/4 hex drive C 6.3
Tip Profile Square (Robertson)
1/4" hexagon drive DIN 3126 / ISO 1173 – C 6.3
Tough bits are ideal for hard applications where sudden increases in torque can lead to increased stresses in a bit. A hard tightening application is when screwing into metal.
C6.3 (1/4) – Square Driver – L25
| Model | Item No. | Size | L [mm] | Ø [mm] | Pk [ea] |
|---|---|---|---|---|---|
| C6.3-SQ0-25 | 116510 | 0 | 25 | – | 10 |
| C6.3-SQ1-25 | 116511 | 1 | 25 | – | 10 |
| C6.3-SQ2-25 | 116512 | 2 | 25 | – | 10 |
| C6.3-SQ3-25 | 116513 | 3 | 25 | – | 10 |
| C6.3-SQ4-25 | 116514 | 4 | 25 | – | 10 |
C6.3 (1/4) – Square Driver – L25 – CR
| Model | Item No. | Size | L [mm] | Ø [mm] | Pk [ea] |
|---|---|---|---|---|---|
| C6.3-SQ0-25-CR | 116570 | 0 | 25 | – | 10 |
| C6.3-SQ1-25-CR | 116571 | 1 | 25 | – | 10 |
| C6.3-SQ2-25-CR | 116572 | 2 | 25 | – | 10 |
| C6.3-SQ3-25-CR | 116573 | 3 | 25 | – | 10 |
All specifications without guarantee, errors and omissions excepted.
