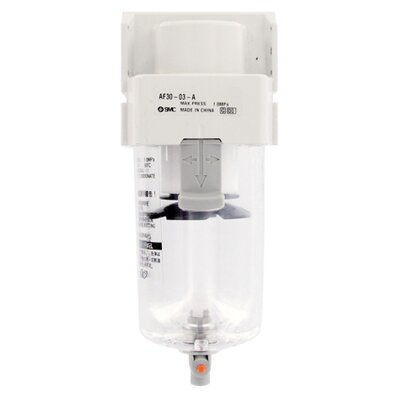

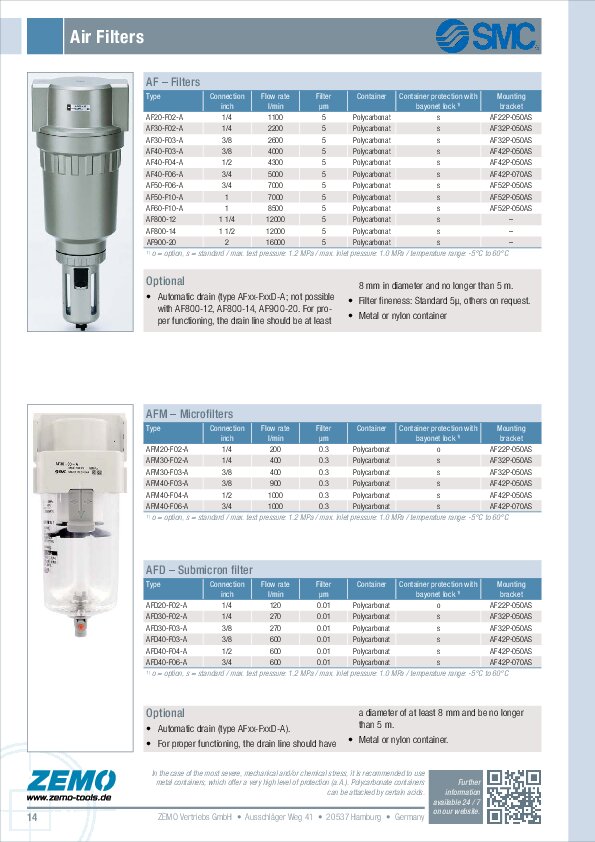

SMC Air Filters

The SMC filters have a very large air passage and provide very accurate filtration. For a safe, high and uniform air quality by separating moisture by means of a centrifugal action and filtering out dust particles.

In the case of the most severe mechanical and/or chemical stress, it is recommended to use metal containers, which offer a very high degree of protection. Polycarbonate containers can be attacked by certain acids.

Options

• Mounting bracket.
• Automatic drain (order no. + C). For proper functioning, the drain line should be at least 8 mm in diameter and no longer than 5 m.
• Filter fineness 2, 10, 20, 40, 70, 100 µ.
• Metal or nylon container.
