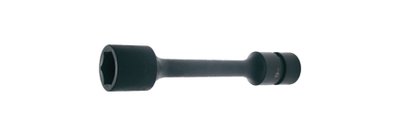

Sleeve Drive Power Socket 6-point

w 1/2 square drive

for Japanese impulse tools

Sleeve Drive Sockets have been developed by Action at the request of Yokota to improve the quality of a joint tightened with impulse wrenches. Sleeve Drive Sockets minimize play between socket and tool thus reducing "wobble" and stabilizing the torque setting. The use of Sleeve Drive Sockets is not only of benefit to the actual joint but also reduces vibration to the tool and operator, also reduces noise levels and tool wear.

Advantages

The „wobble“ is reduced
Tightening torques are even more accurate
Wear sets in much later
Noise level and vibration are reduced
The health of the worker is treated

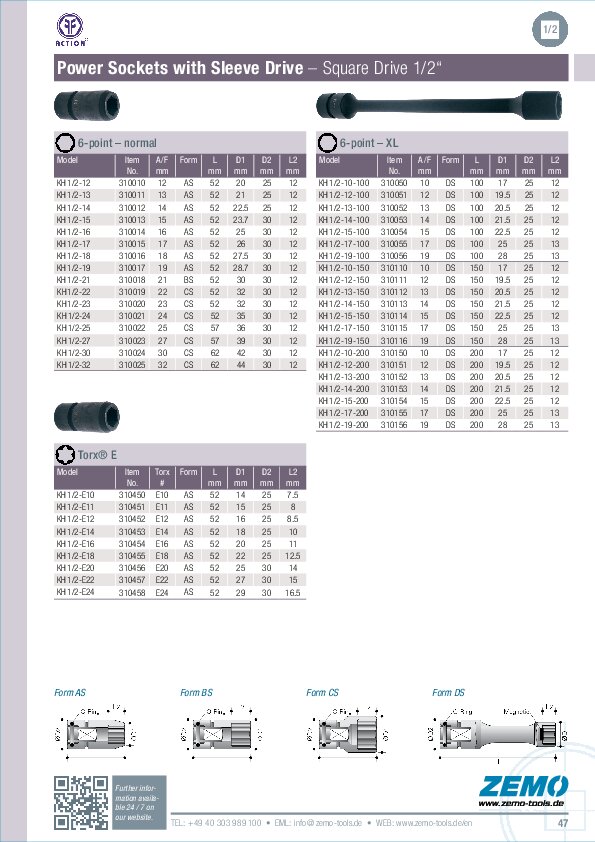

SD1/2 – 6-point – normal

Model	Item No.	A/F [mm]	L [mm]	D1 [mm]	D2 [mm]	L2 [mm]
KH1/2-12	310010	12	52	20	25	12
KH1/2-13	310011	13	52	21	25	12
KH1/2-14	310012	14	52	22.5	25	12
KH1/2-15	310013	15	52	23.7	30	12
KH1/2-16	310014	16	52	25	30	12
KH1/2-17	310015	17	52	26	30	12
KH1/2-18	310016	18	52	27.5	30	12
KH1/2-19	310017	19	52	28.7	30	12
KH1/2-21	310018	21	52	30	30	12
KH1/2-22	310019	22	52	32	30	12
KH1/2-23	310020	23	52	32	30	12
KH1/2-24	310021	24	52	35	30	12
KH1/2-25	310022	25	57	36	30	12
KH1/2-27	310023	27	57	39	30	12
KH1/2-30	310024	30	62	42	30	12
KH1/2-32	310025	32	62	44	30	12

SD1/2 – 6-point – L100

Model	Item No.	A/F [mm]	L [mm]	D1 [mm]	D2 [mm]	L2 [mm]
KH1/2-10-100	310050	10	100	17	25	12
KH1/2-12-100	310051	12	100	19.5	25	12
KH1/2-13-100	310052	13	100	20.5	25	12
KH1/2-14-100	310053	14	100	21.5	25	12
KH1/2-15-100	310054	15	100	22.5	25	12
KH1/2-17-100	310055	17	100	25	25	13
KH1/2-19-100	310056	19	100	28	25	13

SD1/2 – 6-point – L150

Model	Item No.	A/F [mm]	L [mm]	D1 [mm]	D2 [mm]	L2 [mm]
KH1/2-10-150	310110	10	150	17	25	12
KH1/2-12-150	310111	12	150	19.5	25	12
KH1/2-13-150	310112	13	150	20.5	25	12
KH1/2-14-150	310113	14	150	21.5	25	12
KH1/2-15-150	310114	15	150	22.5	25	12
KH1/2-17-150	310115	17	150	25	25	13
KH1/2-19-150	310116	19	150	28	25	13

SD1/2 – 6-point – L200

Model	Item No.	A/F [mm]	L [mm]	D1 [mm]	D2 [mm]	L2 [mm]
KH1/2-10-200	310150	10	200	17	25	12
KH1/2-12-200	310151	12	200	19.5	25	12
KH1/2-13-200	310152	13	200	20.5	25	12
KH1/2-14-200	310153	14	200	21.5	25	12
KH1/2-15-200	310154	15	200	22.5	25	12
KH1/2-17-200	310155	17	200	25	25	13
KH1/2-19-200	310156	19	200	28	25	13

All specifications without guarantee, errors and omissions excepted.
