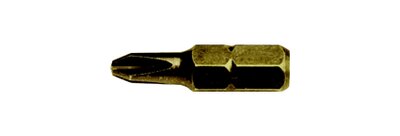

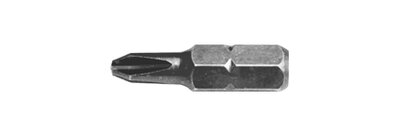

Phillips® Bits w 1/4 hex drive C 6.3

Tip cross-head DIN 5260 – PH

1/4" hexagon drive DIN 3126 / ISO 1173 – C 6.3

Tough bits are ideal for hard applications where sudden increases in torque can lead to increased stresses in a bit. A hard screw case is when screwing into metal.

Extra hard bits are particularly suitable for soft applications where the torque is gradual as the screw penetrates the material. A soft screw application is, for example, when screwing into wood.

C6.3 (1/4) – Crosshead PH – L18

Model	Item No.	PH #	L [mm]	Ø [mm]	Pk [ea]
C6.3-PH1-18	111001	1	18	–	10
C6.3-PH2-18	111002	2	18	–	10
C6.3-PH3-18	111003	3	18	–	10

C6.3 (1/4) – Crosshead PH – L25

Model	Item No.	PH #	L [mm]	Ø [mm]	Pk [ea]
C6.3-PH0-25-4.0	111010	0	25	4.0	10
C6.3-PH1-25-6.3	111011	1	25	6.3	10
C6.3-PH1-25-4.6	111012	1	25	4.6	10
C6.3-PH2-25-6.3	111013	2	25	6.3	10
C6.3-PH2-25-6.0	111014	2	25	6.0	10
C6.3-PH2-25-4.6	111015	2	25	4.6	10
C6.3-PH3-25-6.3	111020	3	25	6.3	10

C6.3 (1/4) – Crosshead PH – L25 – CR

Model	Item No.	PH #	L [mm]	Ø [mm]	Pk [ea]
C6.3-PH1-25-CR	111071	1	25	4.6	10
C6.3-PH2-25-CR	111072	2	25	6	10
C6.3-PH3-25-CR	111073	3	25	6.3	10

C6.3 (1/4) – Crosshead PH – L25 – IMP

Model	Item No.	PH #	L [mm]	Ø [mm]	Pk [ea]
C6.3-PH2-25-IMP	111042	2	25	6	10
C6.3-PH3-25-IMP	111043	3	25	6.3	10

C6.3 (1/4) – Crosshead PH – L25 – ZRN

Model	Item No.	PH #	L [mm]	Ø [mm]	Pk [ea]
C6.3-PH1-25-ZRN	111051	1	25	4.6	10
C6.3-PH2-25-ZRN	111052	2	25	6	10
C6.3-PH3-25-ZRN	111053	3	25	6.3	10

C6.3 (1/4) – Crosshead PH – L38

Model	Item No.	PH #	L [mm]	Ø [mm]	Pk [ea]
C6.3-PH2-38	111023	2	38	6.3	10
C6.3-PH3-38	111024	3	38	8	10
C6.3-PH4-38	111025	4	38	10	10

C6.3 (1/4) – Crosshead PH – L50

Model	Item No.	PH #	L [mm]	Ø [mm]	Pk [ea]
C6.3-PH1-50	111026	1	50	4.5	10
C6.3-PH2-50	111018	2	50	6.3	10
C6.3-PH3-50	111027	3	50	6.3	10

C6.3 (1/4) – Crosshead PH – L50 – ZRN

Model	Item No.	PH #	L [mm]	Ø [mm]	Pk [ea]
C6.3-PH1-50-ZRN	111061	1	50	4.6	10
C6.3-PH2-50-ZRN	111062	2	50	6	10
C6.3-PH3-50-ZRN	111063	3	50	6.3	10

All specifications without guarantee, errors and omissions excepted.
