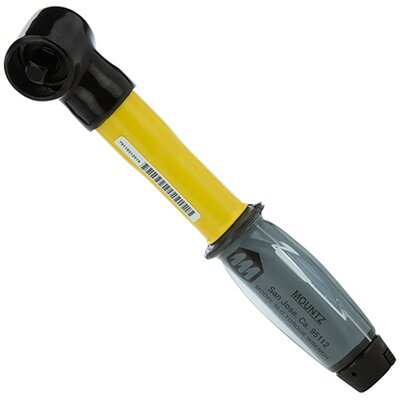

Mountz SLO Insulated Adjustable Torque Wrench

Capacity 20 Nm

Adjustable Clicker Wrench with Electrical Insulation

Intended for low and high voltage applications where torque is critical, Mountz insulated torque wrenches protect their operators in both low and high voltage situations. Essential for worker safety, insulated torque wrenches also improve work quality and productivity by preventing product damage due to arcing or shorting.

Applications for linemen and electricians include a wide variety of live electrical situations, such as uninterrupted power supply repair. Mountz insulated torque wrenches meet IEC 60900 standards, keeping your workers safe.

Benefits

Insulated Wrenches are for life-threatening high voltage and low voltage electrical assembly applications where over-torque conditions are not tolerated and operator safety is mandatory.
Designed with nonconductive plastic insulation, the torque wrenches provide operators with the proper safety for fastening applications.
The Insulated torque wrenches ensure proper torque control and eliminate the possibility of product failure due to shorting, arcing or other electrical damage.
The 1000V Insulated torque wrenches are built to protect against voltages up to 1,000 volts making these torque tools ideal for use in electrically live situations for a wide range of industries.

Features

Withstands voltage upto AC 1000V (IEC 60900).

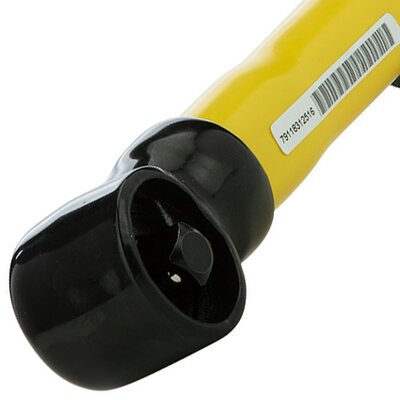

Ratchet head.
Vinyl heat shrink insulation.
Ideal for electric car assembly, connection of battery terminal, and wiring work.

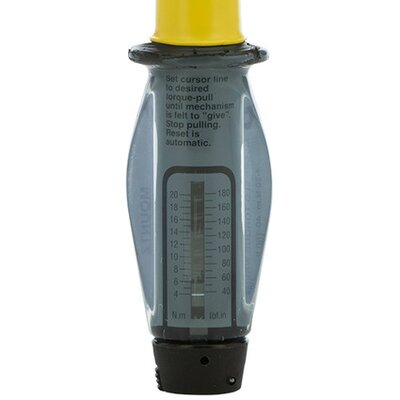

Torque setting is easy to adjust by knob and scale.
Meets or exceeds ISO 6789:2017 (accuracy ± 4% of indicated setting).

Scope of Supply

Torque Wrench SLO
Operating manual

Options / Accs / Spares (w costs)

Calibration Certificate

SLO

Model	Item No.	Torque Range [N·m]	Torque Range [lbf·in]	SqD [inch]	Length [mm]	Weight [kg]
SLO1/4i	M060398	4 - 20	40 - 180	1/4	219	0.59
SLO3/8i	M060113	4 - 20	40 - 180	3/8	219	0.59

Table showing specifications by the manufacturer. It is recommended to primarily use in moderate performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (max capacity), a larger model or tool might be more advisable.

All technical data without guarantee, errors and omissions excepted.
