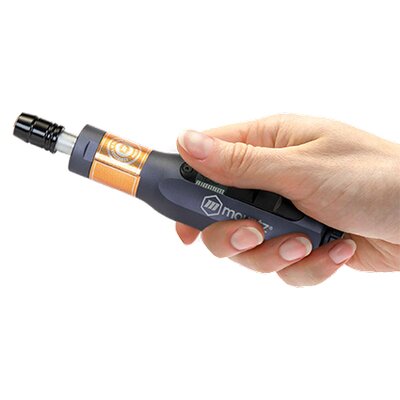

'Hand me the Mountz!'

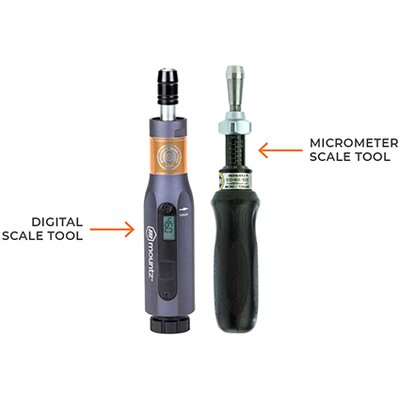

digital scale vs micrometer scale
Images
Video
Downloads
The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (± 6% of indicated setting).

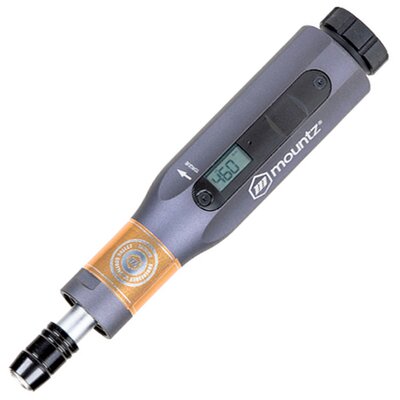

Mountz FGA Adjustable Torque Screwdriver
Capacity 90 / 225 / 450 / 900 cNm
Adjustable Torque Screwdriver with Digital Scale
The Mountz FGA adjustable cam-over torque screwdriver is an error-proofing tool that allows engineers to reduce the risk of over-torque on their assembly lines in production environments with critical fasteners often found in electronics, aerospace, and automotive manufacturing. Torque range suitable for micro, low, and medium torque applications.
Using a clutch mechanism, cam-over tools prevent the operator from applying too much torque to the fastener - preventing over-torque events, broken components, costly product returns, and safety risks.
Cam-over technology reduces the possibility of operator error in both fastening directions, which ensures correct torque is applied and prevents fastener breakage. Providing the operator with an adjustable tool provides flexibility where torque values may need to be adjusted on demand, like maintenance, field service, and research applications.
All Mountz FGA hand tools have a calibration life of 4x ISO standards that is unmatched by any adjustable torque screwdriver provider.
Benefits
- Low-impact poka-yoke torque screwdriver prevents over-torque and vibration on sensitive components and delivers repeatability, traceability, and precision for all tightening applications.
- Quick torque setting with a digital torque scale provides an accurate and straight forward adjustment process – the scale easily converts between metric and standard units.
- Cam-over technology ensures correct torque is applied and reduces fastener breakage.
- Mountz tools are durable & reliable, providing an Industry leading warranty: 2 years unconditional. Lifetime against defects. Calibration life exceeds ISO standards.
Key Features
- 20,000 cycles before re-calibration.
- Cam-over technology eliminates the risk of over-torque.
- Locking mechanism avoids torque setting drift.
- Accurate and simplistic adjusting process thanks to 3-digit digital scale.
- Bit Retention (Universal Bit Holder).
- Ergonomic sleek 4-flute handle design.
- Meets or exceeds ISO 6789-1:2017 and ASME B107.300-2010.
Options / Accs / Spares
- Lithium coin battery CR1225 for FGA v2
FGA
| Model | Item No. | Torque Range [ozf·in] | Torque Range [lbf·in] | Torque Range [cN·m] | Torque Range [N·m] | Torque Range [kgf·cm] | Hex Drv [inch] | Length [mm] | Weight [kg] |
|---|---|---|---|---|---|---|---|---|---|
| FGA-8 | M076720 | 25.6 - 128 | 1.6 - 8 | 18 - 90 | 0.18 - 0.9 | 1.8 - 9.2 | 1/4 | 178 | 0.37 |
| FGA-20 | M076721 | 32 - 320 | 2 - 20 | 22 - 226 | 0.22 - 2.3 | 2.3 - 23 | 1/4 | 178 | 0.37 |
| FGA-40 | M076722 | 64 - 640 | 4 - 40 | 45 - 450 | 0.4 - 4.5 | 4.6 - 46 | 1/4 | 178 | 0.37 |
| FGA-80 | M076723 | – | 8 - 80 | – | 0.9 - 9 | 9.2 - 92 | 1/4 | 178 | 0.37 |
Table showing specifications by the manufacturer. It is recommended to primarily use in moderate performance range (approx. 1/3 to 4/5 of rated capacity). If you regularly worked close to the limit of load (maximum capacity), a larger model or tool might be more advisable.
All technical data without guarantee, errors and omissions excepted.
