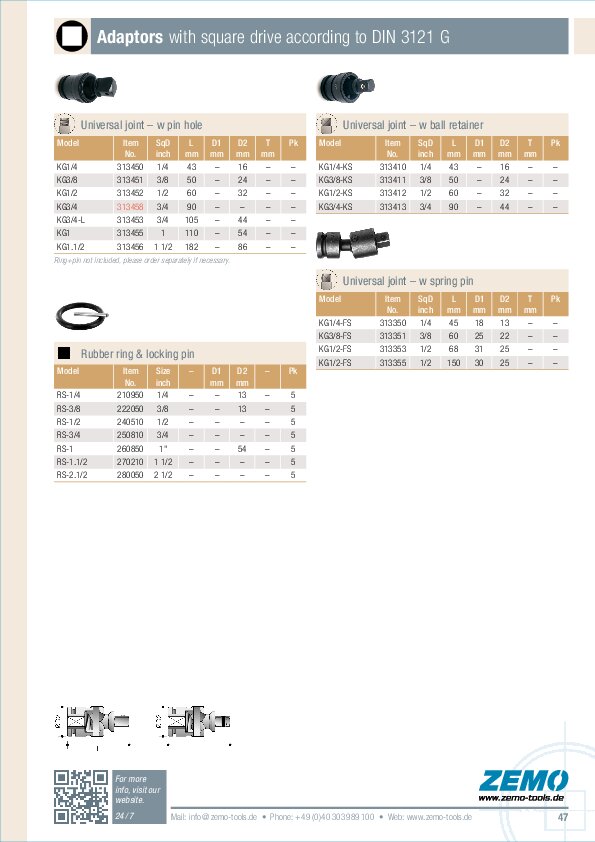

Joint w pin hole
square drive in/out acc DIN 3121 G
Joint Adaptors – w pin hole
| Model | Item No. | SqD [inch] | L [mm] | D1 [mm] | D2 [mm] | Pk |
|---|---|---|---|---|---|---|
| KG1/4 | 313450 | 1/4 | 43 | – | 16 | – |
| KG3/8 | 313451 | 3/8 | 50 | – | 21 | – |
| KG1/2 | 313452 | 1/2 | 60 | – | 29 | – |
| KG3/4 | 313453 | 3/4 | 90 | 44 | 44 | – |
| KG1 | 313455 | 1 | 125 | 54 | 54 | – |
| KG1.1/2 | 313456 | 1.1/2 | 175 | 86 | 86 | – |
Ring+pin not included, please order separately if required.
All specifications without guarantee, errors and omissions excepted.
