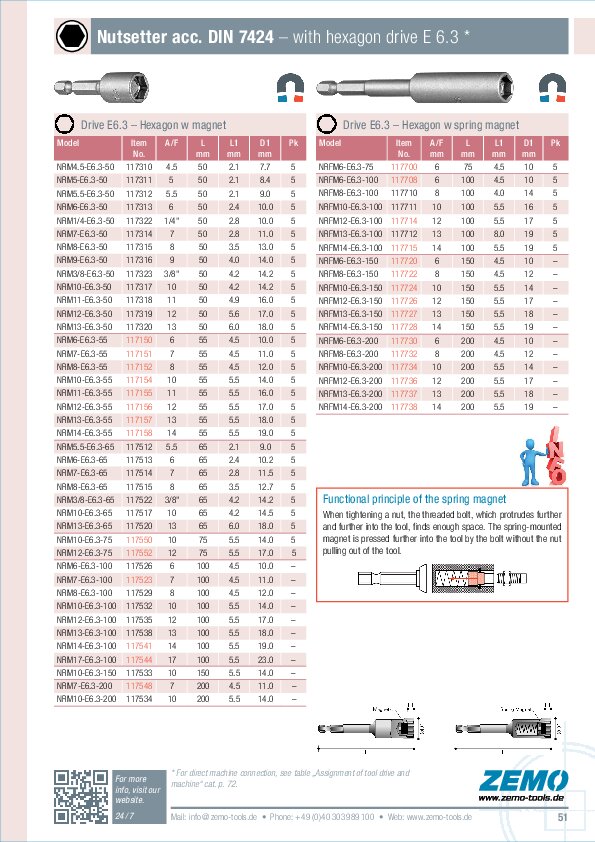

E 6.3 Nutsetter with Magnet

according to DIN 7424

Standard Nutsetter with Magnet

These plug-in tools are ideal if you often have to process screws with an external hexagon head. It is true that this could also be done with a hand ratchet. However, it is significantly faster and more reliable with a nutsetter in a drive machine. The machine's adjustable torque limit ensures even tightening and reduces the risk of overtightening the thread.

Nutsetter with Spring Magnet

When a nut is tightened, the threaded bolt, which protrudes further and further into the tool, finds sufficient space. The spring-mounted permanent magnet is pressed further into the tool by the bolt without the nut pulling out of the tool.

E 6.3 – Nutsetter w Magnet – L50

Model	Item No.	A/F	L [mm]	D1 [mm]	L1 [mm]	Pk
NRM4.5-E6.3-50	117310	4.5	50	7.7	2.1	5
NRM5-E6.3-50	117311	5	50	8.4	2.1	5
NRM5.5-E6.3-50	117312	5.5	50	9	2.1	5
NRM6-E6.3-50	117313	6	50	10	2.4	5
NRM1/4-E6.3-50	117322	1/4"	50	10	2.8	5
NRM7-E6.3-50	117314	7	50	11	2.8	5
NRM8-E6.3-50	117315	8	50	13	3.5	5
NRM9-E6.3-50	117316	9	50	14	4	5
NRM3/8-E6.3-50	117323	3/8"	50	14.2	4.2	5
NRM10-E6.3-50	117317	10	50	14.2	4.2	5
NRM11-E6.3-50	117318	11	50	16	4.9	5
NRM12-E6.3-50	117319	12	50	17	5.6	5
NRM13-E6.3-50	117320	13	50	18	6	5

E 6.3 – Nutsetter w Magnet – L55

Model	Item No.	A/F [mm]	L [mm]	D1 [mm]	L1 [mm]	Pk
NRM6-E6.3-55	117150	6	55	10	4.5	5
NRM7-E6.3-55	117151	7	55	11	4.5	5
NRM8-E6.3-55	117152	8	55	12	4.5	5
NRM10-E6.3-55	117154	10	55	14	5.5	5
NRM11-E6.3-55	117155	11	55	16	5.5	5
NRM12-E6.3-55	117156	12	55	17	5.5	5
NRM13-E6.3-55	117157	13	55	18	5.5	5
NRM14-E6.3-55	117158	14	55	19	5.5	5

E 6.3 – Nutsetter w Magnet – L65

Model	Item No.	A/F	L [mm]	D1 [mm]	L1 [mm]	Pk
NRM5.5-E6.3-65	117512	5.5	65	9	2.1	5
NRM6-E6.3-65	117513	6	65	10.2	2.4	5
NRM7-E6.3-65	117514	7	65	11.5	2.8	5
NRM8-E6.3-65	117515	8	65	12.7	3.5	5
NRM3/8-E6.3-65	117522	3/8"	65	14.2	4.2	5
NRM10-E6.3-65	117517	10	65	14.5	4.2	5
NRM13-E6.3-65	117520	13	65	18	6	5

E 6.3 – Nutsetter w Magnet – L75

Model	Item No.	A/F [mm]	L [mm]	D1 [mm]	L1 [mm]	Pk
NRM10-E6.3-75	117550	10	75	14	5.5	5
NRM12-E6.3-75	117552	12	75	17	5.5	5

E 6.3 – Nutsetter w Magnet – L100

Model	Item No.	A/F [mm]	L [mm]	D1 [mm]	L1 [mm]	Pk
NRM6-E6.3-100	117526	6	100	10	4.5	–
NRM7-E6.3-100	117523	7	100	11	4.5	–
NRM8-E6.3-100	117529	8	100	12	4.5	–
NRM10-E6.3-100	117532	10	100	14	5.5	–
NRM12-E6.3-100	117535	12	100	17	5.5	–
NRM13-E6.3-100	117538	13	100	18	5.5	–
NRM14-E6.3-100	117541	14	100	19	5.5	–
NRM17-E6.3-100	117544	17	100	23	5.5	–

E 6.3 – Nutsetter w Magnet – L150

Model	Item No.	A/F [mm]	L [mm]	D1 [mm]	L1 [mm]	Pk
NRM10-E6.3-150	117533	10	150	14	5.5	–

E 6.3 – Nutsetter w Magnet – L200

Model	Item No.	A/F [mm]	L [mm]	D1 [mm]	L1 [mm]	Pk
NRM7-E6.3-200	117548	7	200	11	4.5	–
NRM10-E6.3-200	117534	10	200	14	5.5	–

E 6.3 – Nutsetter w Spring Magnet – L75

Model	Item No.	A/F [mm]	L [mm]	D1 [mm]	L1 [mm]	Pk
NRFM6-E6.3-75	117700	6	75	10	4.5	–

E 6.3 – Nutsetter w Spring Magnet – L100

Model	Item No.	A/F [mm]	L [mm]	D1 [mm]	L1 [mm]	Pk
NRFM6-E6.3-100	117708	6	100	10	4.5	5
NRFM8-E6.3-100	117710	8	100	14	4	5
NRFM10-E6.3-100	117711	10	100	16	5.5	5
NRFM12-E6.3-100	117714	12	100	17	5.5	5
NRFM13-E6.3-100	117712	13	100	19	8	5
NRFM14-E6.3-100	117715	14	100	19	5.5	5

E 6.3 – Nutsetter w Spring Magnet – L150

Model	Item No.	A/F [mm]	L [mm]	D1 [mm]	L1 [mm]	Pk
NRFM6-E6.3-150	117720	6	150	10	4.5	–
NRFM8-E6.3-150	117722	8	150	12	4.5	–
NRFM10-E6.3-150	117724	10	150	14	5.5	–
NRFM12-E6.3-150	117726	12	150	17	5.5	–
NRFM13-E6.3-150	117727	13	150	18	5.5	–
NRFM14-E6.3-150	117728	14	150	19	5.5	–

E 6.3 – Nutsetter w Spring Magnet – L200

Model	Item No.	A/F [mm]	L [mm]	D1 [mm]	L1 [mm]	Pk
NRFM6-E6.3-200	117730	6	200	10	4.5	–
NRFM8-E6.3-200	117732	8	200	12	4.5	–
NRFM10-E6.3-200	117734	10	200	14	5.5	–
NRFM12-E6.3-200	117736	12	200	17	5.5	–
NRFM13-E6.3-200	117737	13	200	18	5.5	–
NRFM14-E6.3-200	117738	14	200	19	5.5	–

All specifications without guarantee, errors and omissions excepted.
