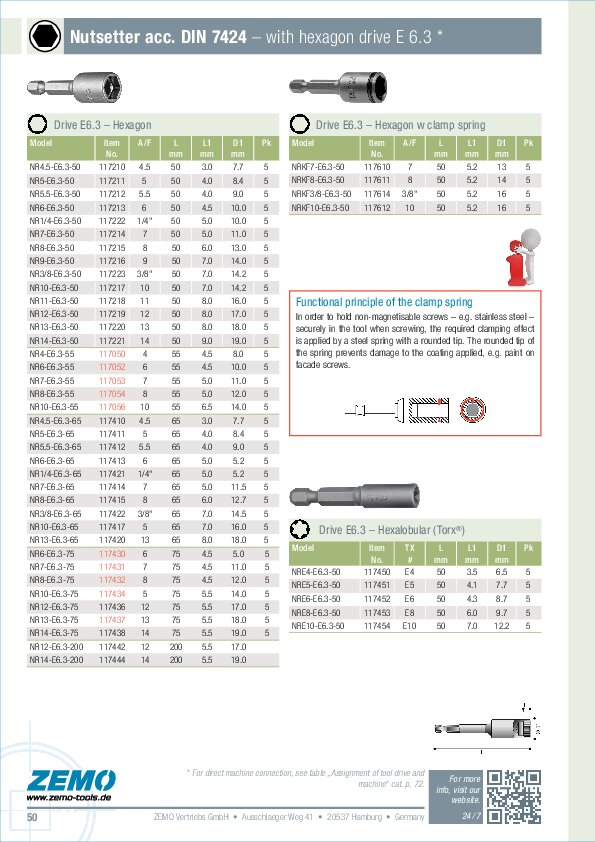

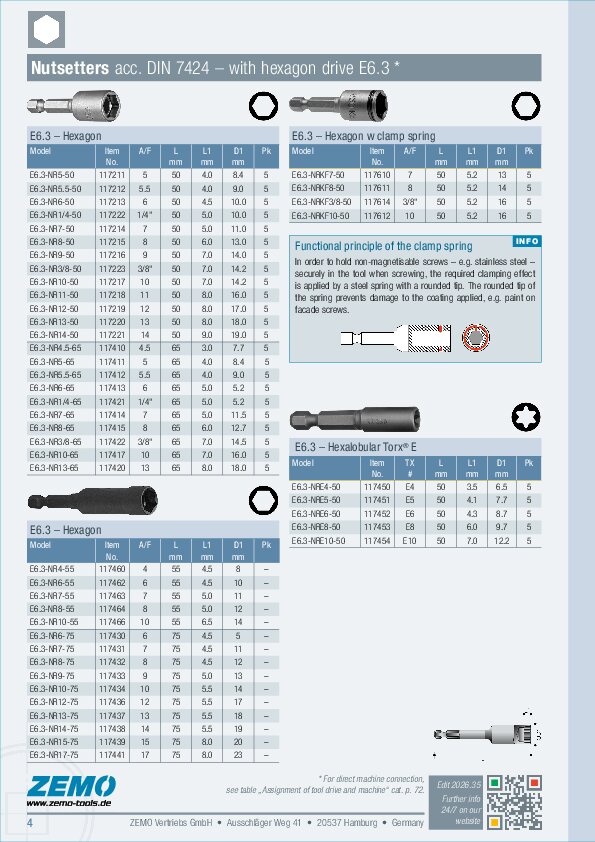

E 6.3 Nutsetter

according to DIN 7424

Standard Nutsetter

These plug-in tools are ideal if you often have to process screws with an external hexagon head. It is true that this could also be done with a hand ratchet. However, it is significantly faster and more reliable with a nutsetter in a drive machine. The machine's adjustable torque limit ensures even tightening and reduces the risk of overtightening the thread.

Nutsetter with Clamping Spring

To hold non-magnetizable screws (e.g. stainless steel) securely in the tool during tightening, the required clamping action is applied by a steel spring with a rounded tip. The rounded tip of the spring prevents damage to the coating applied, e.g. paint on facade screws.

E6.3 (1/4) – Hexagon – L50

Model	Item No.	A/F	L [mm]	D1 [mm]	L1 [mm]	Pk [ea]
E6.3-NR4.5-50	117210	4.5	50	7.7	3	5
E6.3-NR5-50	117211	5	50	8.4	4	5
E6.3-NR5.5-50	117212	5.5	50	9	4	5
E6.3-NR6-50	117213	6	50	10	4.5	5
E6.3-NR1/4-50	117222	1/4"	50	10	5	5
E6.3-NR7-50	117214	7	50	11	5	5
E6.3-NR8-50	117215	8	50	13	6	5
E6.3-NR9-50	117216	9	50	14	7	5
E6.3-NR3/8-50	117223	3/8"	50	14.2	7	5
E6.3-NR10-50	117217	10	50	14.2	7	5
E6.3-NR11-50	117218	11	50	16	8	5
E6.3-NR12-50	117219	12	50	17	8	5
E6.3-NR13-50	117220	13	50	18	8	5
E6.3-NR14-50	117221	14	50	19	9	5

E6.3 (1/4) – Hexagon – L50 – w Clamp Spring

Model	Item No.	A/F	L [mm]	D1 [mm]	L1 [mm]	Pk [ea]
E6.3-NRKF7-50	117610	7	50	13	5.2	5
E6.3-NRKF8-50	117611	8	50	14	5.2	5
E6.3-NRKF3/8-50	117614	3/8"	50	16	5.2	5
E6.3-NRKF10-50	117612	10	50	16	5.2	5

E6.3 (1/4) – Hexagon – L55

Model	Item No.	A/F [mm]	L [mm]	D1 [mm]	L1 [mm]	Pk [ea]
E6.3-NR4-55	117050	4	55	8	4.5	5
E6.3-NR6-55	117052	6	55	10	4.5	5
E6.3-NR7-55	117053	7	55	11	5	5
E6.3-NR8-55	117054	8	55	12	5	5
E6.3-NR10-55	117056	10	55	14	6.5	5

E6.3 (1/4) – Hexagon – L65

Model	Item No.	A/F	L [mm]	D1 [mm]	L1 [mm]	Pk [ea]
E6.3-NR4.5-65	117410	4,5	65	7.7	3	5
E6.3-NR5-65	117411	5	65	8.4	4	5
E6.3-NR5.5-65	117412	5,5	65	9	4	5
E6.3-NR6-65	117413	6	65	5.2	5	5
E6.3-NR1/4-65	117421	1/4"	65	5.2	5	5
E6.3-NR7-65	117414	7	65	11.5	5	5
E6.3-NR8-65	117415	8	65	12.7	6	5
E6.3-NR3/8-65	117422	3/8"	65	14.5	7	5
E6.3-NR10-65	117417	10	65	16	7	5
E6.3-NR13-65	117420	13	65	18	8	5

E6.3 (1/4) – Hexagon – L75

Model	Item No.	A/F [mm]	L [mm]	D1 [mm]	L1 [mm]	Pk [ea]
E6.3-NR6-75	117430	6	75	5	4.5	5
E6.3-NR7-75	117431	7	75	11	4.5	5
E6.3-NR8-75	117432	8	75	12	4.5	5
E6.3-NR10-75	117434	10	75	14	5.5	5
E6.3-NR12-75	117436	12	75	17	5.5	5
E6.3-NR13-75	117437	13	75	18	5.5	5
E6.3-NR14-75	117438	14	75	19	5.5	5

E6.3 (1/4) – Hexagon – L200

Model	Item. No.	A/F [mm]	L [mm]	D1 [mm]	L1 [mm]	Pk [ea]
E6.3-NR12-200	117424	12	200	17	5.5	–
E6.3-NR14-200	117426	14	200	19	5.5	–

E6.3 (1/4) – Torx® E – L50

Model	Item No.	Size	L [mm]	D1 [mm]	L1 [mm]	Pk [ea]
E6.3-NRE4-50	117450	E4	50	6.5	3.5	5
E6.3-NRE5-50	117451	E5	50	7.7	4.1	5
E6.3-NRE6-50	117452	E6	50	8.7	4.3	5
E6.3-NRE8-50	117453	E8	50	9.7	6	5
E6.3-NRE10-50	117454	E10	50	12.2	7	5

All specifications without guarantee, errors and omissions excepted.
